Quipu

Structured knowledge encoded in knotted strings.

A quipu is the Incan knotted-string recording system. Cords are entities, knots are facts, colors are types, and trained readers interpret the structure. Quipu brings this philosophy to modern knowledge graphs: strict structure, enforced by AI agents.

See it

Datalinks — a 3D explorer, live in your browser, over Alpha Centauri’s technology tree: 374 entities, 329 prerequisite edges, 17 ranks. Height is longest-path depth, so position is derived and stable rather than emergent. Select a node and the lattice re-lights by personalized PageRank seeded on it. No server — the graph is a baked Quipu export.

Explore this repository’s graph — Quipu’s own code and docs as a knowledge graph, 61k triples shipped with every release, imported and queried by Quipu itself compiled to WebAssembly. The pack is verified against its manifest, its shapes are adopted, and it is staged and promoted in your tab before you can query it: the receiving half of the sharing story below, running rather than described. Then edit it — add, change and retract facts through the real write path — and export the result as a pack that quipu import <archive> --db your.db stages against your local shapes. Still no server.

What is Quipu?

An embeddable Rust library and server for building knowledge graphs with:

• Immutable bitemporal fact log — time-travel, contradiction detection, full audit trail
• RDF data model — IRIs, blank nodes, typed literals via oxrdf
• SPARQL 1.1 query engine — SELECT, CONSTRUCT, ASK, DESCRIBE with property paths, aggregates, RDFS inference
• SHACL validation — strict schema enforcement at write time with structured agent-friendly feedback
• Hybrid search — SPARQL + vector similarity in a single query
• Episode ingestion — structured write path for agent-extracted knowledge
• Graph projection — materialize subgraphs into petgraph for centrality, components, shortest-path algorithms
• “SQLite energy” — single process, no server required

Three Ways to Use It

Who Is This For?

This book is organized around four personas — pick the one that fits you:

New to SPARQL? Start with SPARQL from Zero — it builds up from a single triple to aggregates and temporal queries using concrete examples.

Quick Taste

# Load some facts
quipu knot data.ttl --db my.db

# Query with SPARQL
quipu read "SELECT ?name WHERE { ?s <http://example.org/name> ?name }" --db my.db

# Start the server
quipu-server --db my.db --bind 0.0.0.0:3030

# Query over HTTP
curl -s localhost:3030/query -X POST \
  -H "Content-Type: application/json" \
  -d '{"query": "SELECT ?s ?p ?o WHERE { ?s ?p ?o } LIMIT 5"}'

Architecture at a Glance

graph TD
    A[Turtle / Episodes / API] --> B[SHACL Validation]
    B --> C[EAVT Fact Log]
    C --> D[SPARQL Engine]
    C --> E[Vector Search]
    D --> F[Query Results]
    E --> F
    C --> G[Graph Projection]
    G --> H[petgraph Algorithms]

Facts enter through validation, land in the immutable log, and are queryable through SPARQL, vector similarity, or graph algorithms. Every fact has a transaction timestamp and an optional valid-time window — you can always time-travel to see the state at any point.

Why Quipu

This page holds the long form that used to open the README: sharing, a tour, the comparison, the full feature list, the architecture and the feature matrix. The README now leads with installing it and a three-command first success (the caboodle-stack README standard).

Sharing & Federation

A Quipu store can hand its knowledge to another store, and compose another store’s knowledge, without either one having to trust the other by default. Every step is explicit, hash-verified, and labelled with where it came from — so you never absorb someone else’s knowledge by accident.

Before exporting, load an identifier-policy catalogue and the shapes governing your data. Outward sharing is the default: a missing block-tier catalogue refuses with exit 2; a matched identifier refuses with exit 1.

quipu share --output ./share            # a git-native bundle: facts + shapes + lineage
quipu import ./their-share              # verifies hashes, lands in QUARANTINE, not ROOT
quipu import promote <share-id>         # a named operator's explicit act
quipu status ./share && quipu merge ./share   # diverged? three-way; conflict exits 2

Quipu does not merge on receipt, and it does not take a peer’s word for how trustworthy that peer is: trust is declared by the local operator, never read from the member itself. Federated rows carry _provider, _trust and _freshness, and a partial answer is reported as partial rather than arriving as a short one.

SPARQL SERVICE is supported, restricted to endpoints the operator has configured — variable endpoints are refused and unconfigured hosts are unreachable. That is narrower than SPARQL 1.1’s open federation by design, and Quipu makes no SERVICE conformance claim.

→ Sharing & Federation — the primitive in full, every claim citing the command or symbol that proves it.

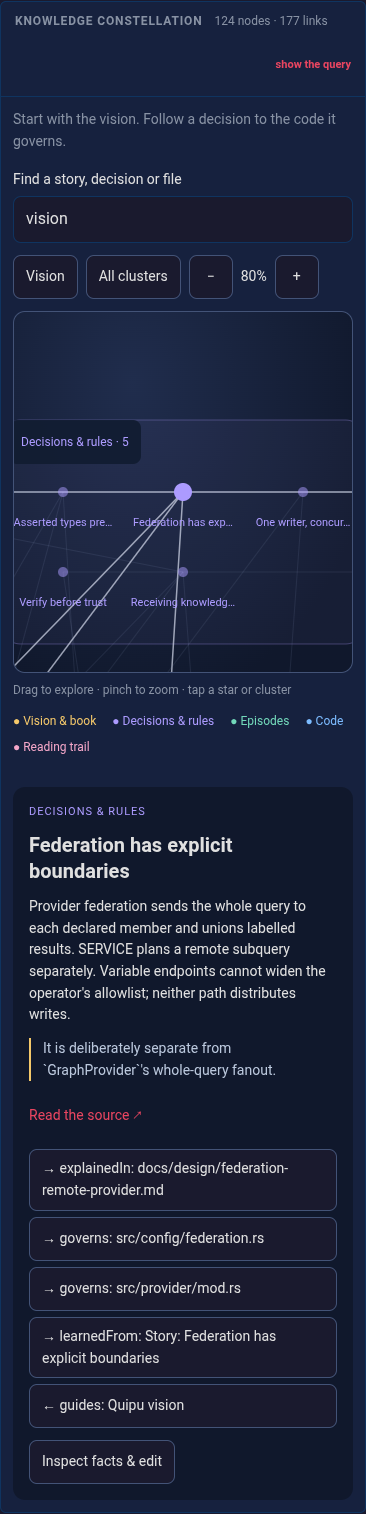

Explore this repository’s graph, in your browser

Every release ships a knowledge pack of this repository — its modules, symbols, documents and sections as RDF — and the book has a page that opens it with Quipu itself compiled to WebAssembly. GitHub cannot run scripts in a README, so here is a picture; the page is one click away.

scbrown.github.io/quipu/explore — 61k triples imported and queried in a tab. No server.

It is the receiving half of the sharing story above, running rather than described: the manifest is verified against the exact payload bytes, the bundled shapes are adopted as a deliberate act, and the graph is staged and then promoted — the same share_transport → share_import → promote path quipu import takes, because it is that code, compiled for a different target. Then you get a SPARQL box, a module and document browser, a type distribution and a neighbourhood graph, all of it derived from queries the page will show you. It takes any Quipu pack, not just this one.

And it is not read-only. Add, change or retract facts on any node — through the real tool_set / tool_retract / tool_episode, the same functions the REST API exposes, with the closed-vocabulary gate still enforcing what the sender’s shapes allow. The views update as you go, and you can take the result with you: the edited store exports as a genuine .qpack.tar.gz, built by the same share_payload the CLI uses and declaring the pack it came from as its parent. Import it directly with quipu import <archive> --db your.db to stage it against your database’s loaded shapes; promotion is a separate step. Without --db, archive verification stays in memory. Or download export.nt and diff it — it is line-oriented and canonically ordered, so a change is a reviewable diff.

The bundle is a release asset (quipu-<tag>-wasm.tar.gz), so nothing here is committed and the Pages build needs no Rust.

See It In Action

The built-in explorer at /ui — the whole graph in one request, drawn on canvas.
Run it yourself with just demo (examples/demo-graph).

$ quipu knot infrastructure.ttl --shapes aegis-schema.ttl --db ops.db
Ingested 847 triples in transaction 1 (SHACL: 0 violations)

$ quipu read "SELECT ?svc ?host WHERE {
    ?svc a <http://example.org/WebApplication> ;
         <http://example.org/runsOn> ?host .
  }" --db ops.db

| svc       | host   |
|-----------|--------|
| gateway   | host-a |
| git       | host-b |
| metrics   | host-a |
3 results

$ quipu episode - --db ops.db <<'JSON'
{"name": "host-b-rebuild", "source": "ops/agent",
 "nodes": [{"name": "host-b", "type": "ComputeNode",
            "properties": {"status": "recovered"}}],
 "edges": [{"source": "host-b", "target": "host-a", "relation": "rebuilt_on"}]}
JSON
Ingested 6 triples in transaction 2

$ quipu unravel --valid-at "2026-03-15T00:00:00Z" --db ops.db
# See the world as it was two weeks ago

$ quipu stats --db ops.db
Facts: 853 | Entities: 127 | Predicates: 34

Why Quipu?

This comparison is a self-assessment, not a measurement. Some cells are contestable (Jena, for example, ships a rule reasoner). For measured numbers, see SPARQL 1.1 conformance, where quipu and other stores are scored by the same harness.

Traditional RDF stores demand too much ceremony. AI-native stores have no structure. Quipu’s thesis: start strict, use agents to bear the cost of strictness.

Features

🏛️ Knowledge Graph Core

• Immutable bitemporal fact log — every fact has transaction time and valid time. Time-travel to any point. Full audit trail. Contradiction detection.
• RDF data model — IRIs, blank nodes, typed literals via oxrdf. Import/export Turtle, N-Triples, JSON-LD, RDF/XML. Exports are stably ordered and can be scoped to ROOT, one named graph, an episode provenance group, or a SPARQL CONSTRUCT result; server exports use the read pool rather than blocking writers.
• Git-native knowledge shares — quipu share writes canonical export.nt, shapes.ttl, and a lineage-aware manifest.json; unchanged graph state produces byte-identical files and stable hashes for meaningful git diffs. Remote consumers use read-only POST /share to receive that exact manifest and file set without access to the server filesystem. When the store carries block-tier InternalIdentifierPattern rules, the producer refuses matching outbound bytes before publishing anything and never rewrites entity IRIs.
• Shape-aware reconnect — quipu status previews base/ROOT/incoming divergence, while quipu merge unions multi-valued RDF and emits structured decisions for sh:maxCount conflicts before any write.
• SPARQL 1.1 — SELECT, ASK, CONSTRUCT, DESCRIBE. BGP, JOIN, UNION, FILTER, OPTIONAL, VALUES, ORDER BY, GROUP BY, aggregates, HAVING, property paths, IN/NOT IN, RDFS subclass inference, and named-graph scoping (GRAPH, FROM, FROM NAMED).
• SHACL validation — strict schema enforcement at write time. Structured feedback with severity, focus node, component, path, and message.
• Graph labels & kinds — graphs carry declared labels on five axes (freshness, trust, policy, durability, dataKind); datasets compose them without ever widening, and every query answer reports the composed label. Opt-in floors can refuse queries that fall below a declared bar.
• Deep freeze — relocate a graph’s full history into a verified read-only archive pack (quipu graph freeze). The graph keeps its IRI and stays queryable — by name, via the urn:quipu:dataset:frozen dataset, or by include_kinds: ["archive"] on a query; quipu graph thaw restores it for writes. GET /graphs lists every registered graph with kind and lifecycle.

🤖 AI-Native Features

• Episode ingestion — structured write path for agent-extracted knowledge. Typed nodes, edges, and provenance tracking (prov:wasGeneratedBy). A node name may appear only once per episode: repeated entries are rejected before any triples are written, since merging them would silently append a second description to the same entity.
• Hybrid search — SPARQL filters candidates, vector similarity ranks them. Combine structured queries with semantic meaning in one call. Type constraints are pushed down into the vector index for O(log n) filtered search with LanceDB.
• Dual vector backends — default SQLite (brute-force cosine similarity), plus a LanceDB backend (ANN with predicate pushdown, Arrow columnar storage) behind --features lancedb. vector.backend in config selects it in-binary: the CLI and server install the configured backend at open, so choosing LanceDB no longer requires an embedder to call Store::set_local_vector_backend by hand.
• Context pipeline — unified knowledge context shaped for agent consumption. Text search + link expansion with configurable depth and budget.
• Agent-friendly feedback — validation errors include what failed, where, why, and what the valid alternatives are.

🧠 Reasoning Engine

• Datalog over EAVT — forward-chaining rules in Turtle DSL, evaluated by datafrog with semi-naive fixpoint. Supports stratified negation-as-failure; variables in negated atoms must be bound by positive atoms, and negation cycles are rejected. Derived facts are first-class triples with provenance.
• Reactive evaluation — TransactObserver re-runs affected rules on every write. Delta-aware: only changed predicates trigger re-evaluation. Behind the non-default reactive-reasoner feature; reason --reactive errors without it.
• Counterfactual queries — Store::speculate() forks a hypothetical view via SQLite SAVEPOINT. Answer “what if we remove X?” without mutation.
• Impact analysis — BFS walk over entity edges with configurable depth and predicate filters. CLI (quipu impact), REST (POST /impact), and MCP tool.

⚙️ Infrastructure

• Git-native composition — quipu import <share-dir> verifies the v1 manifest and payload hashes, resolves exact entity matches, surfaces fuzzy candidates for review, validates against local SHACL shapes, and stages each source in a named graph. Off-vocabulary or non-conforming shares remain quarantined; only quipu import promote <share-id> explicitly admits an eligible graph to ROOT.

• Graph projection — materialize subgraphs into petgraph for centrality, connected components, shortest path algorithms.

• Federation — a GraphProvider trait for multi-source queries, with a RemoteProvider (behind the remote feature) built from federation.remotes config. The server health-checks every configured remote at startup, and POST /query with "federated": true fans out through the federated provider, reporting which members answered. Remotes carry declared trust labels at the federation edge, so a federated answer composes the labels of every member that contributed rather than silently inheriting the caller’s. Federation config is read-side only: adding a remote never turns it into an outbound replication target or bypasses the share scrub/import boundary.

• Graph explorer — the web UI draws the whole node-link view from a single POST /graph payload (nodes plus index-addressed edges), laid out with a Barnes-Hut force simulation on canvas. No CDN, so it renders on an air-gapped deploy.

• Four interfaces — Rust crate (embed), CLI (quipu), REST API (quipu-server), and built-in web UI with embeddable web components. Plus 46 MCP tools for agent integration (48 with the owl feature).

• “SQLite energy” — single process, no server required, inspect with sqlite3, back up with cp.

• Automated releases — release-plz bumps versions from conventional commits, generates changelogs via git-cliff, and creates GitHub releases. Version discovery is git_only = true: the baseline comes from this repository’s tags, never the unrelated quipu crate on crates.io. CI runs fmt, clippy, tests, and markdown lint on every push. /version also reports the deployed git SHA, which matters because a deployment can legitimately sit AHEAD of the newest tag — the SHA, not the version string, identifies what is actually running.

Tour: the library, the CLI, the server and the reasoner

As a Rust Library

[dependencies]
quipu = { git = "https://github.com/scbrown/quipu" }

#![allow(unused)]
fn main() {
use quipu::store::Store;
use quipu::rdf::ingest_rdf;
use quipu::sparql;
use oxrdfio::RdfFormat;

let mut store = Store::open_in_memory()?;

let turtle = r#"
@prefix ex: <http://example.org/> .
ex:alice a ex:Person ; ex:name "Alice" ; ex:knows ex:bob .
ex:bob a ex:Person ; ex:name "Bob" .
"#;
ingest_rdf(&mut store, turtle.as_bytes(), RdfFormat::Turtle,
           None, "2026-04-04", None, None)?;

let result = sparql::query(&store,
    "SELECT ?name WHERE { ?s a <http://example.org/Person> . ?s <http://example.org/name> ?name }")?;
}

From the Command Line

git clone https://github.com/scbrown/quipu && cd quipu
cargo build --release

# Load, query, explore
quipu knot data.ttl --db my.db
quipu read "SELECT ?s ?p ?o WHERE { ?s ?p ?o } LIMIT 10" --db my.db
quipu repl --db my.db

# Governance: check an agent's enforcement trace against the policy set
quipu audit trace.jsonl --db my.db          # T ⊨ Σ — exits 1 on a violation
quipu audit inventory --db my.db            # which tool classes are ungoverned
quipu audit namespace --db my.db            # which minted predicates no shape mentions
quipu audit replay trace.jsonl --db my.db   # advise → enforce readiness, per rule

REST API & Web UI

# quipu-server needs `onnx` (the embedding runtime) AND `server` (axum/tokio —
# the HTTP stack is feature-gated so the library does not carry a web server).
# Neither is on by default, and an unmet required-feature SKIPS the binary
# silently rather than erroring, so build the `full` bundle releases ship:
cargo build --release --features full

quipu-server --db my.db --bind 0.0.0.0:3030

# Open the interactive graph explorer in your browser
open http://localhost:3030

# Or use the REST API directly
curl localhost:3030/query -X POST \
  -H "Content-Type: application/json" \
  -d '{"query": "SELECT ?s ?p ?o WHERE { ?s ?p ?o } LIMIT 5"}'

The built-in web UI provides:

• Graph Explorer — force-directed visualization with type-based coloring, entity search, and detail panel
• SPARQL Workbench — syntax-highlighted editor with time-travel parameters and tabular/JSON results
• Episode Timeline — chronological view of ingested episodes with extracted entities
• Schema Inspector — type distribution, SHACL shape browser, and validation runner

Embeddable web components (<quipu-graph>, <quipu-sparql>, <quipu-entity>, <quipu-timeline>, <quipu-schema>) let you drop Quipu panels into any page:

<script src="http://localhost:3030/quipu-components.js"></script>
<quipu-graph endpoint="http://localhost:3030"></quipu-graph>

Semantic Web APIs for interoperability:

• Spotlight — entity recognition/disambiguation (POST /spotlight)
• Triple Pattern Fragments — LDF-compatible pagination (GET /fragments)
• OpenRefine Reconciliation — data cleaning integration (POST /reconcile)
• Content Negotiation — GET /entity/{iri} returns JSON-LD, Turtle, or HTML based on Accept header

Reasoner

# Impact analysis — what depends on this entity?
quipu impact http://example.org/gateway --db ops.db

# Counterfactual — what breaks if we remove it?
quipu impact http://example.org/gateway --remove --db ops.db

# Run Datalog rules over the fact log
quipu reason --rules rules.ttl --db ops.db

The reasoner adds forward-chaining inference over the EAVT fact log:

• Datalog rule engine — rules written in Turtle DSL, evaluated with semi-naive datafrog. Supports stratified negation-as-failure over materialized facts, including derived predicates from lower strata; unsafe negation and negation cycles are rejected. Derived facts written back via Store::transact() with full provenance.
• Reactive evaluation — TransactObserver keeps derived facts fresh as base facts change. Delta-aware: only affected rules re-run. Optional reactive-reasoner feature.
• Counterfactual queries — Store::speculate() forks a view (SQLite SAVEPOINT) to answer “what if?” without mutation.
• Impact analysis — BFS walk over entity edges with configurable hop depth and predicate filters. Available as CLI, REST endpoint (POST /impact), and MCP tool.

Architecture

                    ┌──────────────────────────────┐
                    │    Agent / CLI / Bobbin       │
                    └──────────┬───────────────────┘
                               │
              ┌────────────────┼────────────────┐
              │                │                │
        ┌─────┴─────┐   ┌─────┴─────┐   ┌──────┴──────┐
        │ MCP Tools  │   │ REST API  │   │  Rust API   │
        │ (46 tools) │   │ + Web UI  │   │  (crate)    │
        └─────┬─────┘   └─────┬─────┘   └──────┬──────┘
              └────────────────┼────────────────┘
                               │
     ┌─────────────────────────┼─────────────────────────┐
     │                         │                         │
┌────┴────┐  ┌────┴─────┐  ┌──┴───────┐  ┌──────────────┴──────────────┐
│ SPARQL  │  │  SHACL   │  │ Reasoner │  │   KnowledgeVectorStore      │
│ Engine  │  │ Validator│  │ (Datalog)│  │         (trait)             │
└────┬────┘  └────┬─────┘  └──┬───────┘  └──────┬─────────┬───────────┘
     │             │           │                 │         │
     └─────┬───────┴───────────┘          ┌──────┴───┐ ┌───┴──────┐
           │                              │  SQLite  │ │ LanceDB  │
           │                              │ (default)│ │(optional)│
     ┌─────┴──────────────┐               └──────────┘ └──────────┘
     │   EAVT Fact Log    │
     │   (SQLite)         │
     │                    │
     │  facts + terms +   │
     │  shapes + rules    │
     └────────────────────┘

Bobbin Integration

Quipu is designed as a Bobbin subsystem. Bobbin holds the thread (code context); Quipu ties knots of structured meaning into it.

When running as a Bobbin subsystem, agents get 46 MCP tools (48 with the owl feature). The two most commonly used for knowledge-aware context:

quipu_context — unified knowledge discovery. Bobbin merges the result with its own code search to give agents both code and knowledge in one response.

{
  "tool": "quipu_context",
  "input": { "query": "gateway reverse proxy", "max_entities": 10 }
}
// Returns ranked entities with facts, types, and relevance scores

quipu_episode — save agent-extracted structured knowledge with full provenance tracking.

{
  "tool": "quipu_episode",
  "input": {
    "name": "deploy-v3",
    "source": "aegis/ellie",
    "nodes": [{"name": "gateway", "type": "WebApplication",
               "properties": {"version": "3.0"}}],
    "edges": [{"source": "gateway", "target": "host-a", "relation": "runs_on"}]
  }
}

Embeddings are shared: Bobbin’s ONNX pipeline (all-MiniLM-L6-v2) provides 384-dimensional vectors to both its code search and Quipu’s knowledge search, enabling hybrid queries that span both domains.

Agent access

When Quipu MCP tools are configured, agents should use them first so structured inputs, validation feedback, and provenance stay in the tool contract. Use the native quipu CLI second for local databases and offline work. Raw HTTP is the portability fallback; endpoint shapes and authentication are in the REST API reference.

Named graphs are first-class query scopes, and named datasets are reusable sets of graphs. ROOT remains the default until a caller explicitly selects a graph or dataset with SPARQL FROM / FROM NAMED, the query graph field, or the query tool’s graph field. This permits an application to ground a request in one declared plane without silently widening into every graph. See Named Graphs for the registration, write, and trust-label rules.

Feature Matrix

Legend: ✅ available in the shipped quipu CLI / quipu-server · 🔩 library primitive only, not reachable from the shipped binaries · 🔜 planned.

Installation

As a Rust Dependency

Add to your Cargo.toml:

[dependencies]
quipu = { git = "https://github.com/scbrown/quipu" }

To use SHACL validation (enabled by default):

[dependencies]
quipu = { git = "https://github.com/scbrown/quipu", features = ["shacl"] }

To exclude SHACL (smaller binary, faster compile):

[dependencies]
quipu = { git = "https://github.com/scbrown/quipu", default-features = false }

From Source

git clone https://github.com/scbrown/quipu
cd quipu
cargo build --release --features full

This produces two binaries:

• target/release/quipu – CLI tool
• target/release/quipu-server – REST API server

quipu-server requires both onnx (the embedding runtime it uses to auto-embed queries) and server (axum, tower-http and tokio — the HTTP stack is feature-gated so the library does not carry a web server; server also implies remote, the federation client). The full bundle is what releases are built with and enables both. Neither is a default feature, so a plain cargo build --release produces only the quipu CLI and silently omits the server (cargo skips a bin whose required-features are off). If you only want the CLI, cargo build --release is enough. Verify the server built:

ls target/release/quipu-server

The Full Stack (caboodle)

To install Quipu as part of the whole knowledge stack — caboodle interviews, plans, applies, and verifies the installation of every stack tool — use the wrapper script:

# Phase one: install caboodle if absent, write a reviewable plan, STOP.
scripts/install-stack.sh --profile kg

# Phase two: after reviewing caboodle-plan.toml, apply + verify,
# then verify and load knowledge packs into the target store.
scripts/install-stack.sh --profile kg --yes \
  --qpack domain.qpack.db --db my.db

The two-phase gate is deliberate and mirrors caboodle’s own doctrine: nothing installs until the written plan has been reviewed (or --yes given explicitly). Every --qpack is checked with quipu pack --verify before quipu unpack — a content-hash mismatch refuses the pack rather than installing silently corrupted knowledge. --dry-run prints every command the script would run and executes nothing; --profile selects the caboodle profile (default kg).

Python Client

The REST API has a thin, zero-dependency Python client under python/:

pip install ./python

See the Python Client reference.

Requirements

• Rust 1.85+ (edition 2024)
• SQLite is bundled via rusqlite – no system dependency needed
• Python >= 3.11 for the optional Python client (stdlib only)

Quick Start

Rust Library

use quipu::store::Store;
use quipu::rdf::ingest_rdf;
use quipu::sparql;
use oxrdfio::RdfFormat;

fn main() -> quipu::error::Result<()> {
    // Open a persistent store (or use open_in_memory() for testing)
    let mut store = Store::open("my-knowledge.db")?;

    // Ingest Turtle data
    let data = r#"
    @prefix ex: <http://example.org/> .
    @prefix xsd: <http://www.w3.org/2001/XMLSchema#> .

    ex:alice a ex:Person ;
        ex:name "Alice" ;
        ex:age "30"^^xsd:integer ;
        ex:knows ex:bob .

    ex:bob a ex:Person ;
        ex:name "Bob" ;
        ex:age "25"^^xsd:integer .
    "#;

    let (tx_id, count) = ingest_rdf(
        &mut store,
        data.as_bytes(),
        RdfFormat::Turtle,
        None,
        "2026-04-04T00:00:00Z",
        Some("demo"),
        Some("quick-start"),
    )?;
    println!("Ingested {count} triples in transaction {tx_id}");

    // Query with SPARQL
    let result = sparql::query(
        &store,
        r#"SELECT ?name ?age WHERE {
            ?s a <http://example.org/Person> .
            ?s <http://example.org/name> ?name .
            ?s <http://example.org/age> ?age .
            FILTER(?age >= 28)
        }"#,
    )?;

    println!("People aged 28+:");
    for row in result.rows() {
        println!("  {:?} age {:?}", row.get("name"), row.get("age"));
    }

    Ok(())
}

CLI

# Build
cargo build --release

# Load data
quipu knot data.ttl --db my.db

# Query
quipu read "SELECT ?s ?p ?o WHERE { ?s ?p ?o } LIMIT 10" --db my.db

# Interactive REPL
quipu repl --db my.db

REST API Server

# Build the server with the full bundle. quipu-server has
# required-features = ["shacl", "onnx", "server"], and cargo SILENTLY SKIPS a
# binary whose required features are missing — a plain `cargo build --release`
# (or a partial feature list) builds only the `quipu` CLI and you'd never know.
cargo build --release --features full

# Start
quipu-server --db my.db --bind 0.0.0.0:3030

# Health check
curl localhost:3030/health

# Query
curl -s localhost:3030/query -X POST \
  -H "Content-Type: application/json" \
  -d '{"query": "SELECT ?s ?p ?o WHERE { ?s ?p ?o } LIMIT 5"}'

# Ingest an episode
curl -s localhost:3030/episode -X POST \
  -H "Content-Type: application/json" \
  -d '{
    "name": "test-episode",
    "nodes": [
      {"name": "alice", "type": "Person", "description": "Test user"}
    ],
    "edges": []
  }'

MCP (Agent Integration)

When running as a Bobbin subsystem, Quipu tools are available to agents:

{
  "tool": "quipu_query",
  "input": {
    "query": "SELECT ?s ?p ?o WHERE { ?s ?p ?o } LIMIT 5"
  }
}

See the MCP Tools Reference for all available tools.

Configuration

Quipu is configured via .bobbin/config.toml in your project directory or ~/.config/bobbin/config.toml for global defaults.

Config File

[quipu]
# Path to the SQLite triple store
store_path = ".bobbin/quipu/quipu.db"

# Base namespace new IRIs are minted under (optional; default is the aegis
# ontology namespace). A non-aegis deployment MUST set this before its first
# write — an IRI namespace is data identity and cannot be changed afterwards
# without re-ingesting every episode.
base_ns = "http://example.org/kb/"

[quipu.server]
# Enable the REST API server
enabled = false
# Bind address
bind = "127.0.0.1:3030"
# Require this bearer on write endpoints.
# auth_token = "current-token"
# During a credential rotation only, accept the old bearer for at most 24h.
# Use an absolute deadline so restarting cannot renew the old bearer.
# previous_auth_token = "old-token"
# previous_auth_token_expires_at_epoch_secs = 2000000000

[quipu.events]
# Event-log retention. Unset (the default) keeps every event forever.
# When set, the server hourly deletes events older than this many days —
# but never an event a registered consumer has not yet committed past, so
# a lagging consumer's replay is never broken (its backlog just stays on
# disk). A consumer registering AFTER a prune replays from the retained
# prefix, not from genesis.
# retention_days = 90

# Read-only databases mounted alongside the store. Each block is one layer:
# a knowledge pack, a shared reference database, a frozen archive someone
# handed you. Their named graphs become readable by `GRAPH <iri>` / `FROM <iri>`
# without changing what any existing query returns.
# [[quipu.attachments]]
# alias = "reference"
# path = "/srv/quipu/reference.qpack.db"

Config Fields

Every key below is wired — src/config.rs carries a test (config_knobs_are_wired_or_listed_unwired) that fails if a documented knob stops being read.

Zero-downtime bearer rotation

Quipu captures bearer configuration at startup. To rotate without a write freeze, configure the new value as server.auth_token, the old value as server.previous_auth_token, and a short server.previous_auth_token_expires_at_epoch_secs, then restart quipu-server. Both bearers authenticate writes until the grace deadline; request telemetry records authenticated_current or authenticated_previous without recording either secret.

After consumers have switched, remove both previous_auth_token fields and restart again. That explicitly invalidates the old bearer immediately. If the cleanup restart is delayed, the old bearer still expires at the configured absolute deadline, and a restart never extends it. On restart, an expired previous bearer is dropped with a warning; the current bearer remains required and valid. Forgotten cleanup cannot cause a delayed startup outage. Invalid pairs, identical bearers, and deadlines over 24 hours away still make startup fail closed.

Attachments

[[quipu.attachments]] mounts other SQLite databases alongside your store, so their named graphs are readable in the same query as your own. Both binaries honour it at open — every quipu subcommand and quipu-server alike.

[[quipu.attachments]]
alias = "reference"
path = "/srv/quipu/reference.qpack.db"

[[quipu.attachments]]
alias = "tenant_a"
path = "packs/tenant-a.db"

What to expect:

• Nothing silently changes. The default dataset stays your own ROOT alone, so an attachment is visible only to a query that names one of its graphs — GRAPH <iri>, FROM <iri>, or a dataset that includes it.
• Mounts are read-only, always. There is no read_only = false: cross-database writes are permanently out of scope, so the key would be an affordance for something the store refuses anyway.
• A bad declaration refuses the open — it never degrades into fewer rows. A missing file, an invalid or duplicate alias, a file with no g column (it predates named graphs), or one whose term space collides with yours all fail at startup, naming the alias and the remedy. A term-space collision is fixed with quipu db respace.
• The packs you already build are attachable. quipu pack --space N ships a pack in its own term space, which is exactly what a collision-free mount needs.

See what is actually mounted — including deep freeze’s archives, which no config declares:

quipu db attach --list --db my.db

quipu-server prints the same list to stderr at startup.

Choosing a vector backend

[quipu.vector] backend selects the store’s vector backend at open, for both binaries: search, entity resolution, auto-embedding and the MCP/REST search tools all go through the selected one.

[quipu.vector]
backend = "lancedb"
lancedb_path = ".bobbin/quipu/quipu-vectors"

lancedb requires a binary built with the lancedb feature, and the release binaries are not. The feature drags in protoc and the whole datafusion tree, which most deployments do not need. A binary that lacks it refuses backend = "lancedb" at startup and names the rebuild — it does not fall back to the SQLite table, because a deployment that has run quipu migrate-vectors would then have every search answered out of the store it migrated away from.

Move existing embeddings across with quipu migrate-vectors --from sqlite --to lancedb. See LanceDB Vector Backend.

Not wired into the quipu CLI / quipu-server

Nothing, currently — every documented key above is read by the shipped binaries. The mechanism is kept rather than deleted: unwired_warnings() still exists, and any future key that parses but is not acted on must be listed there so setting it prints a warning: instead of being silently inert.

(Two keys used to sit here. federation.remotes was wired in quipu #47 — health-checked at startup and queried per-request via federated: true on POST /query, see Federation. vector.backend was wired in quipu-lv7, described just above.)

Priority Order

Configuration is resolved in this order (highest priority first):

1. CLI flags (--db, --bind)
2. Project config (.bobbin/config.toml in working directory)
3. Global config (~/.config/bobbin/config.toml)
4. Built-in defaults

CLI Overrides

CLI flags always take precedence:

quipu read "SELECT ..." --db /tmp/test.db    # Overrides store_path
quipu-server --bind 0.0.0.0:8080             # Overrides server.bind

Triples and the Knowledge Graph

Everything in Quipu is a triple: a subject, a predicate, and an object.

<koror>  <runs>  <traefik>
 subject  predicate  object

This triple says “koror runs traefik.” Three triples can encode a complete service dependency:

@prefix hw: <http://example.org/homelab/> .

hw:koror    a               hw:Host .
hw:koror    hw:runs         hw:traefik .
hw:traefik  hw:dependsOn    hw:pihole .

That’s it. No tables to design, no schema migrations. You add facts incrementally and query them with SPARQL.

IRIs: Naming Things

Every entity and predicate is identified by an IRI (Internationalized Resource Identifier) — a globally unique name like a URL:

http://example.org/homelab/koror

Prefixes keep things readable. Instead of writing the full IRI every time:

@prefix hw: <http://example.org/homelab/> .

hw:koror  hw:runs  hw:traefik .

hw:koror expands to http://example.org/homelab/koror.

Objects: References vs Literals

The object of a triple can be either:

• A reference to another entity (another IRI)
• A literal value (a string, number, boolean, or date)

hw:koror  hw:runs      hw:traefik .          # reference → another entity
hw:koror  hw:hostname  "koror.example" .          # literal → a string
hw:koror  hw:cpuCores  "4"^^xsd:integer .     # literal → a typed number

How Quipu Stores Triples

Under the hood, Quipu stores triples as EAVT facts in an immutable log:

Every fact also carries a valid-time window (valid_from, valid_to), so you can model when facts were true in the real world — not just when they were recorded. See The Temporal Model for details.

The RDF Data Model

Quipu uses the RDF data model, which means:

• Facts are interoperable with any RDF tool
• You can ingest data in Turtle, N-Triples, JSON-LD, RDF/XML, or TriG
• You query with SPARQL — the standard RDF query language
• You validate with SHACL — the standard RDF constraint language

You don’t need to know RDF theory to use Quipu. If you can read subject predicate object . you’re ready to go.

Loading Triples

From a Turtle file:

quipu knot homelab.ttl --db homelab.db

From the REST API:

curl -s localhost:3030/knot -X POST \
  -H "Content-Type: application/json" \
  -d '{
    "turtle": "@prefix hw: <http://example.org/homelab/> .\nhw:koror a hw:Host ; hw:hostname \"koror.example\" ."
  }'

From an episode (structured agent input):

curl -s localhost:3030/episode -X POST \
  -H "Content-Type: application/json" \
  -d '{
    "name": "homelab-inventory",
    "nodes": [
      {"name": "koror", "type": "Host", "properties": {"hostname": "koror.example"}},
      {"name": "traefik", "type": "WebApp"}
    ],
    "edges": [
      {"source": "koror", "target": "traefik", "relation": "runs"}
    ]
  }'

What’s Next

• The Temporal Model — how time-travel works
• SPARQL from Zero — querying your triples
• SHACL Validation — enforcing structure

The Temporal Model

Every fact in Quipu has two time dimensions:

1. Transaction time — when the fact was recorded in the database
2. Valid time — when the fact was true in the real world

This is called a bitemporal model, and it means you can always answer:

• “What did we know at time T?” (transaction time)
• “What was true at time T?” (valid time)
• “What did we know at time T1 about what was true at T2?” (both)

Why Bitemporality Matters

Say you record on April 1 that koror has 4 CPU cores:

quipu knot - --db homelab.db --timestamp 2026-04-01 <<'EOF'
@prefix hw: <http://example.org/homelab/> .
@prefix xsd: <http://www.w3.org/2001/XMLSchema#> .
hw:koror hw:cpuCores "4"^^xsd:integer .
EOF

On April 3 you upgrade to 8 cores and record the change:

quipu retract "http://example.org/homelab/koror" \
  --predicate "http://example.org/homelab/cpuCores" \
  --db homelab.db --timestamp 2026-04-03

quipu knot - --db homelab.db --timestamp 2026-04-03 <<'EOF'
@prefix hw: <http://example.org/homelab/> .
@prefix xsd: <http://www.w3.org/2001/XMLSchema#> .
hw:koror hw:cpuCores "8"^^xsd:integer .
EOF

Now you can time-travel:

# What's the current state?
quipu read "SELECT ?cores WHERE {
  <http://example.org/homelab/koror> <http://example.org/homelab/cpuCores> ?cores
}" --db homelab.db
# → 8

# What was true on April 2?
quipu read "SELECT ?cores WHERE {
  <http://example.org/homelab/koror> <http://example.org/homelab/cpuCores> ?cores
}" --db homelab.db --valid-at 2026-04-02
# → 4

The EAVT Fact Log

Under the hood, facts are stored as immutable rows:

Nothing is deleted. Retractions close the valid_to window on old facts and add a new retraction record. The full history is always available.

Transaction Time vs Valid Time

Transaction time is monotonic and system-controlled. Valid time is user-supplied and can refer to the past or future.

Querying Through Time

Current state (default)

SELECT ?host ?cores WHERE {
  ?host <http://example.org/homelab/cpuCores> ?cores .
}

Returns only currently-asserted facts (op=Assert, valid_to is null).

Valid-time travel

quipu read "SELECT ?host ?cores WHERE {
  ?host <http://example.org/homelab/cpuCores> ?cores
}" --db homelab.db --valid-at 2026-04-02

Returns facts that were valid at the specified point in time.

Transaction-time travel

quipu read "SELECT ?host ?cores WHERE {
  ?host <http://example.org/homelab/cpuCores> ?cores
}" --db homelab.db --tx 1

Returns only facts recorded up to transaction 1 — what the database knew at that point, regardless of valid-time windows.

REST API

curl -s localhost:3030/query -X POST \
  -H "Content-Type: application/json" \
  -d '{
    "query": "SELECT ?host ?cores WHERE { ?host <http://example.org/homelab/cpuCores> ?cores }",
    "valid_at": "2026-04-02"
  }'

Contradiction Detection

If two facts for the same entity+attribute have overlapping valid-time windows, Quipu flags a contradiction. This prevents conflicting states from silently coexisting:

#![allow(unused)]
fn main() {
let issues = store.detect_contradictions()?;
// Returns pairs of facts with overlapping intervals
}

Design Principles

• Append-only: Facts are never mutated or deleted
• Full audit trail: Every change is a transaction with metadata
• Time-travel by default: Any query can add a temporal context
• Contradiction-aware: Overlapping valid-time windows are surfaced

Named Graphs, Overlays & Datasets

Implementation status: ✅ Built on the sanctioned surfaces — the g column and graphs registry, overlay create/write/compose, GRAPH / FROM / FROM NAMED evaluation, the graph query param, and named datasets, and (since 2026-08-21) a strict graph param on POST /knot that accepts only already-registered committed-class graphs. Deliberately not built: property paths under GRAPH ?g (explicitly refused, never a silent ROOT read). See docs/design/named-graphs.md for the full design.

Every fact in quipu’s EAVT store carries a graph coordinate on top of (entity, attribute, value) and the two time axes — the store is really a quad store. The g column says which subgraph a fact lives in, orthogonal to when it holds (valid_from/valid_to) and when the store learned it (tx). Retraction, time-travel, and contradiction detection all scope within a graph: a retraction in graph A never touches graph B.

• g = 0 is the reserved ROOT graph — the default committed graph, the source of truth.
• A named graph’s g is the interned term id of its graph IRI, so resolving GRAPH <iri> is a single term lookup.
• The graphs registry keeps one row per graph with an enforced class: committed (a durable branch; ROOT is the seeded, self-rooted one) or overlay (a layer over a committed parent). A graph’s class is fixed at create.

Querying: GRAPH, FROM, and the graph param

Committed reads are ROOT-scoped by default. The default graph is ROOT alone, not an all-graph union — silence must never expose another tenant’s overlay. A query widens its dataset only by saying so:

• GRAPH <iri> { … } scopes the enclosed patterns to one named graph. An unknown IRI matches nothing.
• GRAPH ?g { … } ranges over the active named graphs, binding ?g to each match’s graph IRI. Property paths under GRAPH ?g are refused with an explicit error rather than silently reading ROOT.
• FROM <g…> makes the default graph the RDF merge (union) of those graphs. An unknown graph contributes nothing; an all-unknown FROM set yields an empty default graph — never a fall-through to ROOT.
• FROM NAMED <g…> restricts which named graphs a GRAPH clause can see. A query with FROM but no FROM NAMED activates no named graphs (per SPARQL 1.1), so GRAPH matches nothing.

SELECT ?s ?title
FROM <http://example.org/graphs/derived>
WHERE { ?s <http://example.org/title> ?title }

POST /query and the quipu_query MCP tool also take a graph request param — a convenience that scopes the query’s default graph to one named graph without writing a FROM or GRAPH clause:

{"query": "SELECT ?s ?o WHERE { ?s <http://example.org/p> ?o }",
 "graph": "http://example.org/graphs/derived"}

Omitting it keeps the ROOT default; an unknown IRI gives an empty default graph; a FROM clause in the query text overrides the param. The param also resolves dataset names: passing a dataset IRI scopes the query to that dataset’s members, so FROM <dataset> and "graph": "<dataset>" mean the same thing. The same graph param on quipu_export / POST /export exports one named graph’s facts instead of ROOT.

Property paths follow a fixed graph scope without crossing it: a GRAPH <iri> closure stays inside that graph, a FROM <a> FROM <b> path traverses their merge. A path never crosses a graph boundary — half a path in an overlay and half in ROOT is not a fact either graph asserts.

Overlays

An overlay is a scratch layer over a committed parent branch: hypotheses go in the overlay, the committed base is never mutated. Two write primitives, one uniform read:

• Create (quipu_overlay_create / POST /overlay/create) registers an overlay-class graph bound once to its committed parent branch (ROOT by default). Idempotent; rebinding to a different parent is an error — the binding is unforgeable.
• Write (quipu_overlay_write / POST /overlay/write) takes one of three ops: assert and retract are graph-scoped writes into the overlay; tombstone marks a specific (e, a, v) from the parent as absent in the overlay’s composed view, without touching the parent.
• Compose (quipu_overlay_compose / POST /overlay/compose) resolves the stack [overlay > parent-branch-root] with a single rule: a triple is present iff asserted and not tombstoned, nearest-overlay-wins. Overlay asserts shadow the parent; overlay tombstones hide parent triples; everything else falls through.
• Governed precedence ("precedence": "governed" on the same tool / endpoint) inverts who wins, for reading a quarantine plane over a governed graph (quipu-e61, adopted from Spanner’s statically-defined-properties-win-over-dynamic rule): the parent’s facts are always present — an overlay value on a same-subject-same-predicate slot the parent claims is suppressed, and an overlay tombstone cannot mask a parent fact (it still masks the overlay’s own contributions). A low-trust plane may extend the governed graph but never alter what it says; promotion out of quarantine remains an explicit governed write, never a precedence flip.

Many tenants can extend the same base independently this way, and a committed read never sees any of them unless the query names the overlay. Overlays are one sanctioned write path for named graphs. POST /episode accepts a graph field for ingestion into a named graph, and POST /knot accepts a graph field under a strict contract: the target must already be a registered committed-class graph (created via graph_create, where authority checks live). An unknown IRI is an error and is never interned — a typo’d plane name must not become a writable target as a side effect of being rejected — and overlay-class graphs are refused (write through overlay_write). The class invariant the earlier “no graph on /knot” refusal protected survives because registration remains the only way to mint a target. The semantic event taxonomy (episode.ingested, entity.*, edge.*, type.new, predicate.new) emits for ROOT-graph commits only; named-graph writes — overlay staging and committed-class targets alike — do not emit it. Gate refusals, however, are recorded as write.refused events for any destination graph (the payload names the graph IRI), and registry changes (shapes.loaded, fork.*) emit their own events.

Datasets

A dataset is a name for an arbitrary set of graphs, queryable as one unit — the reusable form of a FROM a b c clause, so a graph set can be labelled, governed, and handed to another agent. Managed via the quipu_datasets MCP tool or POST /datasets (create / list / show / remove).

curl -s localhost:3030/datasets -X POST \
  -H "Content-Type: application/json" \
  -d '{"action": "create", "name": "http://example.org/datasets/hot",
       "members": ["http://example.org/graphs/a", "http://example.org/graphs/b"]}'

• FROM <dataset-iri> (and the graph query param) expands to the dataset’s members at resolve time; everything downstream reads the expanded set.
• A dataset is never implicitly active — the ROOT-alone default is untouched; you get a dataset’s graphs only by naming it. A member naming an unregistered graph contributes nothing.
• Members may carry a declared ordering ({"graph": …, "ord": N}); duplicate ranks are refused rather than tiebroken silently. An empty dataset is refused.
• Datasets are mirrored into the meta-graph as quipu:Dataset / quipu:includesGraph facts, so they are queryable and governed like any other fact. Datasets are orthogonal to the overlay branch tree: the branch tree is compose’s resolution root, datasets are overlapping named sets.
• The labels of a query’s active dataset compose across its member graphs — see Graph Labels for how freshness/trust/policy labels fold over the graphs a query actually reads.

Related

• REST API — /query, /export, /overlay/*, /datasets
• MCP Tools — quipu_query, quipu_export, quipu_overlay_*, quipu_datasets
• Graph Labels — labels on graphs and their composition over datasets
• Design doc: docs/design/named-graphs.md

Compose knowledge packs

quipu compose loads verified local share directories or archives into one store, retaining each pack as a named graph and naming their union as a dataset. ROOT remains unchanged, including when validation passes. Composition is an inspection operation; it does not grant foreign content trust.

quipu compose ./operations-pack ./repository-pack \
  --shapes-from ./operations-pack --db composed.db > composition.json

The command returns JSON and exits 0 for a conforming union, 2 for a retained, nonconforming union, or 1 for a refusal. Exit 2 means the composition is available for inspection in quarantine, not that no data was written. Integrity and shape-selection errors refuse the whole operation. Internal shares require explicit --destination internal, as on the import path.

Identity and provenance

Exact IRIs denote one entity across packs. Matching labels never merge entities. An explicit owl:sameAs assertion supplies an auditable identity link; consumers can follow it while the original names remain in the source graphs. Blank node identifiers are scoped to the pack even when independent exports both use c14n0.

The result names the dataset and each source graph. Query the dataset explicitly:

SELECT ?item ?name FROM <urn:quipu:composition:HASH>
WHERE { ?item a <https://example.org/Item>; <https://example.org/name> ?name }

For a fact’s source membership, name the source graphs from the result:

SELECT ?pack
FROM NAMED <urn:quipu:composition:pack:FIRST_SHARE_HASH>
FROM NAMED <urn:quipu:composition:pack:SECOND_SHARE_HASH>
WHERE { GRAPH ?pack { <https://example.org/item> <https://example.org/name> "Item" } }

A fact supplied by both packs has two source memberships. The dataset’s RDF union suppresses duplicate triples. urn:quipu:composition:metadata records JSON manifests under urn:quipu:composition:manifest, including source references, share and store identities, transaction anchors, original manifests, attestation status, and validation results. Records describe observed compositions; they are not an automatically maintained validation certificate.

Shape authority and partial snapshots

Without --shapes-from, every input must carry an identical shape bundle. Different bundles are refused with their share IDs and hashes. Explicit selection chooses that pack’s complete bundle for this composition. It never silently unions conflicting constraints or installs foreign shapes as global policy.

Validation examines the union: another pack can supply a required field. A nonconforming union stays in the named inspection dataset and is never promoted to ROOT. The report preserves violation counts and counts by source shape, with at most 40 individual diagnostics. Types outside the selected authority are reported separately as off_vocabulary and also quarantine the union.

The snapshot vector remains visible. Different source stores’ transaction anchors are incomparable. Mixed dates are permitted and reported; composition does not claim that snapshots were taken together, every referenced entity has arrived, or missing facts represent upstream deletion. Pack selection is explicit. Loading a different snapshot names another composition without replacing an earlier dataset.

Retractions and replay

Reloading a share reuses its source graph rather than refilling it. Attested shares still obey the ordinary signature and nonce-replay checks. A local retraction in that graph survives reload of the same snapshot. Validation on replay examines the current local union, so removing a required field changes the outcome to quarantine. Source graph edits affect every dataset that includes that graph.

A distinct historical snapshot is a separate inspection graph, not a restoration of ROOT or an automatic replacement of the selected dataset. Historical source membership records what a snapshot contained, not whether its facts remain current. Retract in the graph whose view you intend to change.

Graph Labels & the Trust Lattice

Implementation status: 🟨 Substantially built. The axes (Freshness, Trust, PolicyClass, Durability, DataKind), the meet/join algebra in src/lattice.rs / src/lattice_kind.rs, label storage (set_graph_label / label_of, the reserved meta-graph, cache columns), dataset labels on the query path, label floors, expiring declarations, and derivation methods are all implemented. Statement-level labels (quipu #73) remain design-only. See docs/design/graph-labels.md for the full design.

Named graphs partition the store, but on their own they cannot say anything about a graph: how current its contents are, how far they should be trusted, or what policy governs them. Every consumer of Quipu was hand-rolling that missing layer differently. Graph labels make it a store primitive: labels on graphs, drawn from ordered value sets, composing under one invariant.

The one invariant: composition never widens

When graphs are combined into a dataset, the composed label may never claim more than any member does. The operator flips direction by axis, but the invariant holds both ways:

• Freshness, trust, and durability compose by meet — a union of graphs is only as fresh, as trusted, and as durable as its weakest member.
• Policy obligations and kinds compose by join — a union of graphs carries the union of their restrictions, so one no-export graph taints the set, and the union of their declared kinds, so a dataset touching an archive graph says so.

The axes

Four things to know about these values:

• Trust is not a hardcoded enum. Trust values are IRIs and the ordering is data: smac:canonical quipu:trustRank 40 ; quipu:inChain smac:ruleTierChain. Ranks are only comparable within a declared chain — comparing across chains is refused, never silently compared as integers.
• Durability answers an owner-facing question the belief axes do not: which facts would be lost if this store were lost? backed is persisted elsewhere, reproducible is re-derivable from a source that still exists, soleRecord means loss is permanent. A derived fact is only as durable as its least durable input, so it composes by meet.
• Nothing is ever synthesized. A producer declares labels; Quipu never observes staleness or infers backed because a backup ran once. Related but distinct: quipu:derivedBy records how to re-derive a fact (system, query, parameters). It is a per-fact value, not a lattice axis — two methods do not meet into a third. derivedBy says how to recover a fact; durability says whether you must.
• Kind is categorical, not ordered. quipu:dataKind declares what sort of data a graph holds — the token space is lexically open ([a-z][a-z0-9-]*), parsed strictly, and never ranked, so it composes by union rather than by weakest member. It also drives fetch-time scope widening (include_kinds) and the deep-freeze lifecycle — see Graph Kinds & Deep Freeze.

Undeclared is not a lattice value

Every pre-existing graph is unlabelled, so the default matters. Defaulting to top would fail-open trust; defaulting to bottom would drag every existing query to the floor. Instead a composed label is a pair: the fold over the declared labels, plus a coverage (full, partial, none) saying how much of the dataset declared anything. An unlabelled graph reads as undeclared, never as a fabricated fresh. Declarations can also expire (set_graph_label_until); past their valid_to they simply become undeclared again.

Labels on the query path

The composed label is a property of the query’s dataset, computed once per query — not per row. A dataset containing a stale graph is labelled stale even if no returned row came from it; conservative cannot overstate. /query and quipu_query responses carry a top-level labels key beside truncated:

{
  "rows": ["..."],
  "truncated": false,
  "labels": {
    "freshness": { "value": "stale", "coverage": "full" },
    "durability": { "value": "soleRecord", "coverage": "partial" },
    "trust": { "value": "smac:canonical", "chain": "smac:ruleTierChain", "coverage": "full" },
    "policy": { "value": ["no-export"], "coverage": "full" },
    "kind": { "value": ["knowledge", "archive"], "coverage": "full" }
  }
}

The key is always present: null means nothing was declared, and a fold refusal (member graphs trusted in different chains) is reported as {"error": …} while the query still returns its rows. Old clients ignore the extra key. Per-row label columns exist only where the graph is already bound per row — under GRAPH ?g, opt-in.

Label floors

An opt-in enforcement floor in configuration:

[quipu.labels]
min_freshness = "fresh"
min_trust_rank = 30
min_trust_chain = "https://quipu.dev/ontology/defaultTrustChain"
deny_policy_tokens = ["no-export"]
deny_data_kinds = ["archive"]

When a dataset’s label falls below the floor, the query is refused, and the refusal names the graph that dragged the label down. Undeclared fails a configured floor — fail-safe at enforcement, honest at reporting. The one deliberate exception is deny_data_kinds, which is a blocklist, not a minimum: an undeclared kind passes, because kind is categorical and failing every unlabelled graph the moment the key is set would be a different (and unasked-for) migration. All keys are unset by default, and unset means zero behaviour change: no query is ever refused by a store that has not configured a floor, and the unconfigured path does no label work at all.

⚠ Label floors are NOT access control. A floor refuses a query; it does not hide rows, and nothing stops a caller who names a graph directly from reading it. aegis:authorityOver gates writes only; a read-side authority check does not exist and is not built here. Presenting trust labels as a confidentiality boundary would repeat the group_id mistake this stack already documents.

One governance consequence worth knowing: labels live as ordinary facts in the reserved meta-graph urn:quipu:graph:meta, so relabelling a graph requires authority over the meta-graph, not over the graph being labelled — otherwise a tenant could relabel itself attested.

Built vs designed

Built: the five axes and the fold, graph-label storage with the RDF meta-graph as source of truth and cache columns checked by quipu doctor labels, dataset labels on the query path, label floors, expiring declarations, durability and derivation. Design-only: statement-level labels (#73) — the same vocabulary attached to individual statements, with downward-only override.

Related

• Named Graphs — the substrate labels attach to
• Graph Kinds & Deep Freeze — the dataKind axis in use
• Configuration — the labels.* floor keys
• REST API — the /query response shape
• Design: docs/design/graph-labels.md

Graph Kinds & Deep Freeze

Implementation status: ✅ Built on the sanctioned surfaces — the quipu:dataKind label axis, GET /graphs, include_kinds on /query, and quipu graph freeze|thaw|list. See docs/design/graph-kinds-and-deep-freeze.md for the full design.

The kind axis

quipu:dataKind declares what sort of data a graph holds — a fifth label axis beside freshness, durability, trust and policy. Categorical, not ordered: a dataset composes to the union of its members’ kinds, so an answer that touched cold data says so in its labels.kind.

Conventioned values (the space is lexically open — [a-z][a-z0-9-]*):

• knowledge — durable semantic content;
• operational — high-churn workflow/run/ticket state, written into time-windowed graphs (e.g. …/shuttle/runs/2026-08);
• identity — principals and verifier registrations, split out so freezing a window never strands the keys that verify its signatures;
• archive — frozen read-only history; set by the freeze operation.

Declare it like any label:

curl -s localhost:3030/graph/label -X POST -H "Content-Type: application/json" \
  -d '{"graph": "urn:app:runs/2026-08", "kind": "operational",
       "timestamp": "2026-08-24T00:00:00Z"}'

[quipu.labels] deny_data_kinds = ["archive"] refuses queries that implicitly compose the named kinds — a blocklist (undeclared passes), not a minimum, and like every floor it is not access control.

Deep freeze

quipu graph freeze <iri> relocates a whole graph’s full history — retracted rows and transactions included — into a read-only archive pack, verifies the copy by content hash, deletes the local rows, and re-attaches the pack. The graph keeps its IRI and stays queryable; its durability genuinely becomes backed. Writes to it are refused, naming quipu graph thaw.

Compose frozen graphs back in, explicitly (silence never widens):

1. GRAPH <iri> or FROM <iri> — by name;
2. FROM <urn:quipu:dataset:frozen> — the auto-maintained dataset of every frozen graph;
3. "include_kinds": ["archive"] on POST /query — by kind, so new frozen windows join automatically.

Known cost: as_of_tx time travel is refused while archives are attached (the pre-existing rule for any attachment); valid-time queries survive. quipu graph thaw <iri> restores the history byte-for-byte and reopens the graph for writes — the pack file stays on disk, and the freeze registry row is closed, never deleted.

Freezing and semantic search

Freezing costs the freezing store nothing here. Freeze deletes the graph’s fact rows; it never touches the vectors table, so the embeddings of a frozen graph’s entities stay in place and semantic search answers as it did before.

The archive carries them too. A freeze pack holds embeddings for the graph’s own subjects, re-keyed by IRI, and both quipu graph thaw and quipu graph import restore them — so a window handed to another store, or thawed into a store rebuilt from packs, arrives with its semantic index rather than needing a re-embed. Freeze and thaw report the count; the restore is idempotent.

Two limits worth knowing:

• A delegated or LanceDB vector backend cannot be enumerated, so nothing can be re-keyed out of it. The freeze still succeeds — relocating history is not a vector operation — but it warns on stderr and stamps vectors_omitted into the pack manifest, so an incomplete archive never reads as “this graph had no embeddings”. A thaw in the other direction refuses: restoring rows into a store whose live backend is not the built-in one would put them where nothing reads them. Run quipu migrate-vectors first.
• An attached archive’s embeddings are not searched from the pack. Vector search reads the local store only, deliberately — one index per question. Nothing is lost by it, because the local rows were never removed.

Governance: Policies, Verdicts & the Write Gate

Implementation status (2026-08-12): ✅ Built — the Phase-A write gate (src/governance/guard.rs, wired through stage_and_guard in src/store/ops.rs), the seven governance/overlay MCP tools (src/mcp/governance.rs), v1 verdict signing (src/signing.rs, src/governance/verdict_facts.rs), authority intersection, and the audit/replay machinery. ⬜ Not built: the hank-side structural-policy projection (Phase B), boundary:"transition" enforcement, the workflow half of require-approval, and everything from §5 of the signing-plane design (shared signing crate, bitemporal key registry, task signing).

Quipu carries a declarative governance vocabulary and an engine that binds it to the write path. A policy is a fact in the graph like any other; whether it enforces is a runtime decision, and every enforced decision leaves a signed, auditable verdict behind.

The vocabulary

An aegis:Policy (shapes/governance.ttl) names four things: what it governs, what compliance means, where it binds, and what happens on failure.

@prefix aegis: <http://aegis.gastown.local/ontology/> .

aegis:todo-needs-ticket a aegis:Policy ;
    aegis:targets  "aegis:CodeComment" ;
    aegis:claim    "ASK { $target aegis:citesTicket ?t }" ;
    aegis:boundary "action" ;
    aegis:effect   "deny" .

• targets — the entity type the policy applies to.
• claim — a SPARQL ASK stating the compliant condition; $target is bound to the entity under evaluation. Satisfied = good.
• boundary — action (pre-edit/pre-write) or transition (workflow step; declared but not yet enforced).
• effect — allow | warn | require-approval | deny | escalate | record.
• appliesTo (optional) — repo-relative path globs scoping where an action-boundary policy binds. Genuinely multi-valued: a policy scoped to three globs carries three values, and a consumer accumulates them rather than keeping whichever arrived first. Absent means unscoped. Declared with rdfs:range only — no rdfs:domain, so the same term reads identically on a future TextRule or Directive.

An optional aegis:evidenceProbe (another ASK: “does evidence exist yet?”) lets the evaluator distinguish unknown from unsatisfied — no evidence is a different fact from failing evidence, and neither is collapsed into the other.

Tripwires: path-boundary policies

A policy carrying aegis:appliesTo and no selector or predicate is a tripwire: touching the path is the crossing, so the claim needs no evidence beyond the action’s own target. shapes/policies/tripwire.ttl ships the catalog — the governed twin of yupana’s local [[yupana.policy.tripwires]], with quipu as the canonical store and yupana holding only a projected cache. Placement follows SARC Table 3, not convenience: the deny wire is hard at the PAG (admissibility is decided before dispatch — the edit must never land), and the throttle wire is soft at the PAA with a declared aegis:backoffFormula (it prices a completed crossing and backs off the actions after it, never the crossing itself). That formula is not optional decoration: under validate_placement the write gate refuses any policy declaring effect "throttle" without an aegis:backoffFormula — a throttle with no backoff is a response nobody can compile, so the consumer records the crossing and applies no throttle, an armed-looking wire that prices nothing. There is no soft-at-the-gate wire — a soft constraint has nothing to price before the action lands. Re-scoping a wire is amending the policy: the write gate treats an appliesTo write as governance-defining and invalidates the cached policy registry.

The write-path gate

The single write choke point is Store::transact_to_graph. Inside the open savepoint — datums staged, nothing committed — stage_and_guard (src/store/ops.rs) hands the pending post-state to the policy guard (PolicyRegistry::build + evaluate_write, src/governance/guard.rs). On a blocking verdict the savepoint rolls back and the write never lands; the store is byte-identical to before the call.

The registry is built once and cached: every active boundary:"action" policy, indexed by target type. A write’s touched entities are intersected with the governed-type set first, so a write touching no governed type runs zero ASKs; the cache invalidates itself when a transaction writes a governance-defining fact. Effects split into blocking — deny, require-approval, escalate block when the claim is unsatisfied (a gate with no approval channel fails closed rather than passing silently; escalate additionally mints an aegis:DecisionRequest for the escalation router) — and advisory — allow, warn, record never block.

Enforcement is opt-in:

[quipu.governance]
enforce_on_write = false   # the default

Default off, mirroring shacl.validate_on_write: existing deployments are unchanged, and turning the gate on is a deliberate configuration act, not a side effect of upgrading. validate_placement (definition-time class↔placement conformance) and enforce_authority (below) are separate flags with the same opt-in posture.

On-demand evaluation: quipu_policy_check

The read-only half. Given a policy IRI (or an inline claim) and a target, it evaluates the claim over the committed graph and returns a Verdict:

{
  "predicate_id": "aegis:todo-needs-ticket",
  "target_ref": "ex:comment-42",
  "outcome": "unsatisfied",
  "evidence_hash": "fnv1a:9c2a41d07be3f118",
  "tier": "committed",
  "verifier": "quipu",
  "verifier_authorized": true,
  "signed": true,
  "signature": "…hex…"
}

outcome is satisfied | unsatisfied | unknown, bound to a reproducible evidence_hash over (predicate, target, valid_at, bound claim) — any verifier re-runs the same ASK over the same committed evidence and must get the same verdict. Checked, not trusted. valid_at/tx make the evaluation as-of.

Verdict signing

Verdicts are attestations, not claims. If the store holds a signing identity (ed25519 via ring, host-file key custody — explicitly v1), it signs the canonical message v1|predicate|target|outcome|evidenceHash|tier|verifier (src/signing.rs). No signing identity means no persisted verdict, never an unsigned one — a bare satisfied fact is forgeable by anyone who can write.

Write-gate verdicts are persisted as bitemporal aegis:Verdict facts (src/governance/verdict_facts.rs), staged during evaluation and flushed after the savepoint resolves — so a denied write still records its verdict, and unknown is recorded rather than skipped. Their evidence hash seals attribution: sha256 over predicate|target|outcome|writer|chain, binding the aegis:attributedWriter and aegis:principalChain into the signed seal. It is deliberately not a hash of graph state, which has no stable serialisation.

The Phase-0 root of trust

Trust concentrates in a small, human-owned surface: aegis:VerifierRegistration facts carry each verifier’s name, hex aegis:publicKey, and the predicates it aegis:attests. A human registers a verifier; quipu never self-registers.

• quipu_verifier_authorized — may this verifier attest this predicate?
• quipu_verdict_verify — verify a signed verdict’s fields against the registry. Returns signature_valid, verifier_registered, verifier_authorized, and trusted = signature_valid AND verifier_authorized — the one property a consumer should gate on.

Verification is currently latest-only; the bitemporal key registry (rotation with as-of re-verification) is designed but not built.

Transition signatures at the write gate

Shuttle signs every workflow transition with the performing agent’s ed25519 key over the canonical message shuttle-transition-v1|{run}|{step}|{from}|{to}|{at}|{agent} and exports the signature as an ordinary aegis:signature fact on the aegis:TransitionEvent — re-derivable from the exported facts alone, so consumers can re-check it (shuttle verify). Under [quipu.governance] verify_transitions (default off), quipu re-checks it at the write gate (src/governance/transition.rs): a write landing a TransitionEvent that is unsigned, signed by an agent with no aegis:VerifierRegistration, or whose signature does not verify over the staged fields under any of the agent’s registered keys is refused before it commits — forged and tampered transitions become unwritable rather than merely detectable. The registry read spans every graph (shuttle’s convention keeps registrations in a never-frozen dataKind=identity named graph); protecting the registry itself from unauthorized writes is enforce_authority’s job, exactly as for signed decisions.

Authority over graphs

aegis:Principal facts hold aegis:authorityOver graph IRIs (or *). A call chain’s effective authority is the intersection of every link’s, so delegation only narrows and an empty intersection refuses (src/governance/authority.rs). Gated by enforce_authority (default off) and inert for callers that present no principal chain. This gates writes only — it is not a read-side confidentiality boundary.

Audit & replay

The rest of src/governance/ closes the loop after the fact: quipu_audit_check (audit.rs) mechanically checks a recorded trace against the policy spec — coverage, class↔placement, outcome consistency, attribution — deterministically, never an LLM call. replay.rs measures whether an advisory rule is ready for promotion to enforcement (liveness, both outcomes, recoverability). router.rs queues require-approval escalations as DecisionRequests with expiry (only an approval permits; a rejection outranks an approval); tree.rs, inventory.rs, and inheritance.rs reconstruct attribution, check dispatch-graph coverage, and detect constraint laundering under delegation.

See also

• MCP tools reference — the seven governance and overlay tools.
• REST API reference — the mirrored HTTP routes.
• docs/design/policy-edit-hooks.md — the write-gate design and its backlog.
• docs/design/signing-plane.md — where signing goes next (proposed).

Knowledge Packs

Implementation status (2026-08-12): ✅ Built. src/pack.rs — Manifest, pack, pack_turtle, unpack, verify, content_hash — with the quipu pack / quipu pack --verify / quipu unpack CLI, and the stored-query registry packs draw from (src/store/queries.rs). --space <term-space> on pack export is built too (2026-08-25). Still open: the design’s retrieval-policy block (quipu:defaultDataset / quipu:recommendsFloor) — a pack today carries the graph’s labels but not the fuller policy vocabulary. See docs/design/knowledge-packs.md.

A binary pack is an internal graph artifact: one graph’s current facts, plus the shapes, stored queries, and labels that make it usable, in a single file you can version, hand to another agent or environment, verify, and import. The artifact format is the database format — a pack is an ordinary Quipu SQLite store with a one-row pack_manifest table describing itself.

For publication in a git repository, qpack means the text share directory. The binary .qpack.db is internal plumbing, not the published artifact. A share is the canonical, line-oriented interchange surface that makes review and three-way history meaningful:

First prepare the store’s identifier-policy catalogue and load the shapes governing its data. These outward-share examples assume both prerequisites are present in the selected store:

quipu share --output graph-share
quipu share --output project-share --group-id project-a --shapes project-shapes --turtle

Every share contains normative, sorted export.nt, a non-empty shapes.ttl, and manifest.json. By default all loaded shape sets are included; repeat --shapes to select a subset. A store with no loaded shapes is refused unless the producer deliberately requests a shapes-free bundle with --no-shapes. The manifest records the stable store id, transaction anchor, graph and shapes hashes, scope, and optional parent-share hash. --turtle adds a derived export.ttl for people; it is not the graph identity. The anchored transaction timestamp—not the wall clock—is used for created_at, so exporting unchanged state with the same options is byte-identical. Use --parent-share sha256:... when continuing a lineage.

Before any bundle is returned or its output directory is published, Quipu evaluates every block-tier InternalIdentifierPattern present in the local ROOT and named graphs against the exact graph, shapes, and optional Turtle bytes. A hit refuses the entire share and leaves no partial directory. The gate never rewrites a match: IRIs are entity identity, so replacing a private-looking IRI would silently create a different graph. Warning-tier rules do not block. Rules must be complete within one graph; statements split across graphs are not combined into a rule. Duplicate rules are checked once. Catalogue location does not change the selected share payload scope.

An empty block-tier catalogue refuses outward sharing: the CLI exits 2 (cannot verify), distinct from exit 1 for a matched identifier and exit 0 for a checked, clean share. Load a catalogue before sharing outward. The explicit --destination internal path remains available for internal transfers.

Remote callers can request the identical artifact without access to the server’s filesystem using POST /share. The response is {"manifest": {...}, "files": {"manifest.json": "...", "export.nt": "...", "shapes.ttl": "..."}}; export.ttl is also present when turtle_view is true. Request fields mirror the CLI options: scope, shapes, no_shapes, parent_share, and turtle_view. An optional max_bytes may lower the server’s 8 MiB response cap. Every string in files is the exact UTF-8 file content, so consumers reconstruct the directory without reimplementing manifest canonicalization, hashes, or share IDs.

JSON-LD is deliberately not a share payload in v1. Quipu’s JSON-LD endpoint is an entity-oriented negotiated view, not a canonical RDF-dataset serializer; adding it would create bytes whose ordering and identity contract are weaker than the sorted N-Triples producer. export.nt remains normative and export.ttl remains the optional human-readable derived view.

What goes in a pack

• Facts — the current facts of the source graph, written through the ordinary transaction path so term ids are correct by construction (a raw row copy would carry the producer’s private id assignment; a pack never does).
• Shapes — named explicitly with --shapes, since shapes are global and carry no graph linkage. The selection is recorded in the manifest.
• Stored queries — named with --queries, so a domain layer ships the competency questions that make it usable on arrival, not just its triples.
• Labels — the graph’s freshness/trust/policy label travels with the pack, so a consumer can compose it without a side channel.
• Vectors (optional, --with-vectors) — embeddings re-keyed by IRI. Restricted to the built-in SQLite vector backend; a delegated or LanceDB backend cannot be enumerated, so the flag is refused rather than silently producing a pack with no vectors.
• The manifest — pack format, name, producer-declared semver, term space, content hash, creation time, source graph, producer identity, and row counts.

Creating a pack

Omit the graph argument to pack the ROOT default graph, or explicitly use urn:quipu:graph:root. The manifest records that IRI and defaults the name to root. ROOT packs contain only current ROOT facts, excluding named graphs and materialized inference graphs. --with-vectors carries embeddings for terms in the pack. ROOT uses its own graph-label row, without borrowing labels from an interned term with the same IRI. Verification and Turtle export use the same scope. Unpacking defaults to ROOT for these packs; --into <iri> selects a named graph.

quipu pack --out root.qpack.db --with-vectors

quipu pack urn:example:graph --out domain.qpack.db --name "domain" --version 1.0.0
quipu pack urn:example:graph --out domain.qpack.db --shapes s --queries q --with-vectors

The output is a single clean file — the build goes through VACUUM INTO, so no -wal/-shm siblings ride along beside the file you actually copy.

--format turtle emits an interop bundle instead: a directory of graph.ttl, shapes.ttl, queries.json, and manifest.json, for consumers that are not Quipu. It is export-only — nothing unpacks it — but it carries the same content hash as the .qpack.db form, because the hash is computed from canonical content, not from the emitted bytes.

Unpacking

quipu unpack domain.qpack.db --into urn:local:domain --db my.db

unpack materializes the pack’s facts into a local graph (defaulting to the pack’s own graph IRI) and installs its shapes and stored queries through the versioned write paths — never an overwrite of registries the consumer already has. The report states what arrived: facts, shapes, queries.

Verification

quipu pack --verify domain.qpack.db

Verification recomputes the pack’s content hash and compares it to the manifest. The hash is sha256 over the lexically sorted, deduplicated N-Triples of the graph plus the packed shapes, queries, and labels — sorted because the store’s own emission order depends on term-id assignment, and the hash must describe the content, not the producer. Two stores holding the same triples hash the same.

This makes the hash the pack’s citable version reference: pin it in an environment, promote the same hash-verified file dev → staging → prod, roll back by re-attaching the prior pack. Never re-pack between environments — that creates a different artifact and defeats the hash as the promotion identity. There are no signatures; verification is integrity, not provenance.

Use cases

• Shipping a distilled derived layer — pack a curated or derived graph with its shapes and competency queries, and hand consumers a verifiable artifact instead of access to the producing store.
• Small, portable subsets — cut a wasm-sized slice of a larger graph for embedded or edge deployment, where a single self-describing file matters.
• Environment promotion — one artifact, one hash, attached identically in each environment.

Built vs designed

Built: quipu pack, quipu unpack, quipu pack --verify, the Turtle interop bundle, vector export on the SQLite backend, the stored-query registry, and --space <term-space> on export — the pack is built in space 0 and shipped through the same respace machinery as quipu db respace, so a consumer can attach it as-is without an id collision (.qpack.db packs only; a Turtle bundle carries IRIs, not term ids, so --space does not apply there). Designed but not yet built: the retrieval-policy block (default-dataset and recommended-floor facts a consumer could SPARQL), and delta/diff packs — v1 packs are whole-layer, read-only artifacts.

Related

• CLI reference — the quipu pack / quipu unpack flags in full.
• docs/design/knowledge-packs.md — the full design, including the retrieval-policy vocabulary and the promotion workflow.

Explore the contributor constellation

Open Explore to follow the ideas behind Quipu into the code. The repository pack includes the vision, source-backed episodes, design decisions, a trust directive, and the book’s chapter order alongside indexed code and docs. The vision remains an aspiration; each decision links to its own evidence and implementation. These narratives are extracted from repository documents, not imported from an operational knowledge graph.

A phone walkthrough

At a 390px-wide viewport:

1. In Knowledge constellation, search for vision, then select Quipu vision.
2. In its card, tap guides: Federation has explicit boundaries.
3. Read the decision and its source excerpt. Tap governs: src/provider/mod.rs to reach the actual indexed code module.
4. Read the source opens the repository file; Inspect facts & edit opens its local facts. SPARQL, export and the propose-as-PR flow remain available.

The cluster outlines separate vision, decisions, episodes, code and reading. Positions stay fixed while you explore. Drag or use arrow keys to pan; pinch, use the mouse wheel or the zoom buttons to zoom. All clusters fits the reading map; tap a cluster to enter it. At that overview scale, cluster controls replace individual node controls. Visible node targets and controls are at least 44 CSS pixels, independent of zoom. The node card and search results provide text navigation without hovering or precise graph taps.

Ask the same question with SPARQL

The canned How does the vision guide code? query follows two explicit edges and checks the indexed module’s path. It does not infer that a similarly named file implements a decision.

PREFIX q: <https://quipu.dev/knowledge/>
SELECT ?decision ?module WHERE {
  q:vision q:guides ?decision .
  ?decision q:governs ?module .
  ?module a ?type .
}

Keep the released knowledge current

The release producer runs scripts/build-contributor-knowledge.mjs after Bobbin indexes the repository. Its curated registry is docs/knowledge/contributor-stories.json. Each story names a source passage and code witnesses; generation refuses a missing passage, missing file, or private identifier in the curated text. The book order comes from SUMMARY.md.

The producer includes this projection in its ordinary CONSTRUCT share scope, then adopts shapes, imports and promotes into a fresh receiver. The contributor proof requires all six knowledge classes, four source-backed episodes, and vision → decision → typed code paths. A code-only pack cannot pass that proof. The release workflow ships that same output as its repository qpack asset.

Use just contributor generate to inspect the deterministic projection. QUIPU_BIN=/path/to/quipu just contributor pack /tmp/repository-share runs the full producer and receiver proof. The output directory must not already exist. The page consumes the released artifact when the documentation build stages it; a source change alone does not change the pack already on the site.

The browser’s delta producer uses the same 128 MiB payload budget as its full export, so adding contributor knowledge does not disable proposing an edit. The default remote delta budget remains 8 MiB. During release publication, docs allow missing, not-yet-staged assets for 30 minutes. Once staged, every asset must be published byte-for-byte; beyond the grace a missing asset fails.

SHACL Validation

SHACL (Shapes Constraint Language) lets you define what valid data looks like and enforce it at write time. When an agent or user tries to add facts that violate a shape, Quipu rejects the write and returns structured feedback explaining exactly what’s wrong.

Why Validate?

Without validation, agents can write anything:

hw:koror hw:cpuCores "lots" .   # Should be an integer
hw:koror a hw:Host .            # Missing required hostname

With SHACL shapes loaded, Quipu catches these problems before they enter the fact log.

Defining a Shape

A shape declares constraints for a class of entities. Here’s a shape that says “every Host must have exactly one hostname (a string) and at least one cpuCores (an integer)”:

@prefix sh:  <http://www.w3.org/ns/shacl#> .
@prefix hw:  <http://example.org/homelab/> .
@prefix xsd: <http://www.w3.org/2001/XMLSchema#> .

hw:HostShape
    a sh:NodeShape ;
    sh:targetClass hw:Host ;
    sh:property [
        sh:path hw:hostname ;
        sh:datatype xsd:string ;
        sh:minCount 1 ;
        sh:maxCount 1 ;
    ] ;
    sh:property [
        sh:path hw:cpuCores ;
        sh:datatype xsd:integer ;
        sh:minCount 1 ;
    ] .

Loading Shapes

CLI

quipu shapes load --name homelab --file shapes/homelab.shapes.ttl --db homelab.db

REST API

curl -s localhost:3030/shapes -X POST \
  -H "Content-Type: application/json" \
  -d '{
    "action": "load",
    "name": "homelab",
    "turtle": "@prefix sh: <http://www.w3.org/ns/shacl#> .\n@prefix hw: <http://example.org/homelab/> .\nhw:HostShape a sh:NodeShape ; sh:targetClass hw:Host ; sh:property [ sh:path hw:hostname ; sh:minCount 1 ] ."
  }'

Listing loaded shapes

quipu shapes list --db homelab.db

Declaring ontology classes and properties

The bundled governance shape set sanctions named ontology resources typed rdfs:Class and rdf:Property. Load that set before an adapter imports its ontology declarations through /knot. These declarations require IRI subjects.

Declaring <urn:example:Task> a rdfs:Class in the data graph does not authorize instances of urn:example:Task. The write vocabulary still comes from loaded shape sets; add and load a shape targeting the intended class before writing its instances. Unknown types continue to be refused.

Validation in Action

Try to add a Host without a hostname:

quipu knot - --db homelab.db --shapes shapes/homelab.shapes.ttl <<'EOF'
@prefix hw: <http://example.org/homelab/> .
hw:badhost a hw:Host .
EOF

Quipu rejects it with structured feedback:

{
  "conforms": false,
  "violations": 1,
  "issues": [
    {
      "severity": "Violation",
      "focus_node": "http://example.org/homelab/badhost",
      "path": "http://example.org/homelab/hostname",
      "component": "MinCountConstraintComponent",
      "message": "Less than 1 values for hw:hostname",
      "source_shape": "http://example.org/homelab/HostShape"
    }
  ]
}

This feedback is designed for agents — structured JSON with enough detail to fix the problem automatically.

Supported Constraints

Quipu supports the full SHACL Core specification via the rudof library.

Dry-Run Validation

Validate data without writing it to the store:

quipu validate --shapes shapes/homelab.shapes.ttl --data data.ttl

curl -s localhost:3030/validate -X POST \
  -H "Content-Type: application/json" \
  -d '{
    "shapes": "@prefix sh: ... shapes turtle ...",
    "data": "@prefix hw: ... data turtle ..."
  }'

Pre-Built Shapes

Quipu ships with shapes for the Aegis infrastructure ontology in the shapes/ directory. These cover:

• LXCContainer, ProxmoxNode, BareMetalHost — compute resources
• SystemdService, WebApplication, Database — services
• CommandDiskImpactObservation — one privacy-preserving command/filesystem measurement. diskDeltaBytes is signed: positive values mean space consumed and negative values mean space freed. Command and filesystem identity use canonical classes rather than raw arguments or paths; aggregate counts and quantiles belong in a separate summary entity.
• ConfigFile — optional migration-safe configPath and contentSha256 facts support exact drift lookups. When present, each is single-valued and the digest must be a full lowercase SHA-256 hexadecimal string.
• CiJob and LocalCommand — map a CI job to at most one typed local equivalent, the repository paths it gates, and the command text used to run that equivalent before push.
• Common properties: hostname, ipAddress, memoryMB, cpuCores, dependsOn

Load them with:

quipu shapes load --name aegis --file shapes/aegis-ontology.shapes.ttl --db homelab.db

Best Practices

• Load shapes before data — shapes must be present to validate incoming writes
• One shape set per domain — group related constraints (e.g., “homelab”, “code”)
• Start permissive, tighten later — begin with minCount constraints, add datatype checks as your ontology stabilizes
• Use validation feedback — the structured JSON is designed for automated remediation by agents

Schema Evolution

Quipu enforces strict ontology rules via SHACL shapes. When an agent writes data that fails validation because the schema is too restrictive or missing a class/property, it can propose a schema change instead of asking a human to edit shapes manually.

The Proposal Workflow

Agent writes data → SHACL rejects it → Agent submits proposal → Approver accepts/rejects

Proposals follow a simple lifecycle: pending → accepted or pending → rejected. Every proposal requires an explicit approver — there is no auto-accept.

Proposal Kinds

MCP Tools

Submit a Proposal

{
  "kind": "shape",
  "target": "PersonShape",
  "diff": "@prefix sh: ... ex:PersonShape a sh:NodeShape ; ...",
  "rationale": "Need email property for contact info",
  "proposer": "agent/data-enricher",
  "trigger_ref": "validation-failure-42"
}

Tool: quipu_propose_schema_change

List Proposals

{ "status": "pending" }

Tool: quipu_list_proposals

Accept a Proposal

{ "id": 1, "decided_by": "aegis/crew/braino", "note": "Looks good" }

Tool: quipu_accept_proposal

When a shape proposal is accepted, Quipu:

1. Validates the Turtle diff is syntactically correct
2. Verifies it parses as valid SHACL
3. Writes the shape to the shapes table
4. Records the approver and timestamp

If the Turtle is invalid, the proposal stays pending and an error is returned.

Reject a Proposal

{ "id": 1, "note": "Too permissive — would allow unconstrained strings" }

Tool: quipu_reject_proposal

CLI

# List all pending proposals
quipu propose list --status pending

# Submit a proposal from a Turtle file
quipu propose submit shape PersonShape shape.ttl --proposer agent/enricher

# Accept
quipu propose accept 1 --note "Approved"

# Reject
quipu propose reject 1 --note "Needs tighter cardinality"

Validation Hints

When quipu_knot rejects data due to SHACL violations, the response includes a hint field pointing to quipu_propose_schema_change. When validate_or_reject fails, the error message includes the same hint. This gives agents a clear remediation path instead of a dead-end error.

Design Notes

• The proposals table uses a text diff column so that SHACL shape diffs and future OWL axiom diffs can coexist. The kind column disambiguates.
• Proposals only mutate shape/ontology definitions — they never touch the EAVT fact store directly.
• The approver role defaults to aegis/crew/braino. A capability-based authorization system (quipu.schema.approve) is a future concern.

OWL Ontology Layer

Quipu supports OWL 2 RL reasoning through a built-in ontology engine. OWL ontologies define class hierarchies, property characteristics, and constraints that Quipu uses to materialize inferred facts, and — when owl.validate_on_write is enabled — enforces at write time.

Loading an Ontology

Ontologies are OWL axioms expressed in Turtle format. Load one via the CLI or MCP tool:

quipu ontology load aegis-ontology ontology.ttl --db quipu.db

Or via the MCP quipu_load_ontology tool:

{
  "action": "load",
  "name": "aegis-ontology",
  "turtle": "@prefix owl: <http://www.w3.org/2002/07/owl#> ...",
  "timestamp": "2026-04-13T00:00:00Z"
}

On load, Quipu:

1. Parses the Turtle and extracts OWL/RDFS axioms
2. Persists the ontology in SQLite (like SHACL shapes)
3. Materializes entailments into the fact log

Supported Axioms

owl:TransitiveProperty and owl:equivalentProperty were parsed and counted but not materialized before 2026-08-27 — the same silently-dropped shape rdfs:subPropertyOf had before aegis-qfncf. Loading one reported success and derived nothing.

owl:sameAs: identity comes from your DATA, not from the ontology

Every other axiom in the table is read from the ontology document you load. owl:sameAs is not — it is read from the graph itself, because identity between individuals is asserted as ordinary data (the quipu align verbs and /knot both write it). You do not declare owl:sameAs in an ontology; you assert it about two things, and materialization picks it up:

ex:dolt owl:sameAs ex:doltLan .
ex:dolt ex:hosts   ex:beads .

After materialization ex:doltLan ex:hosts ex:beads is entailed, and the identity itself is closed both ways and through chains: with a sameAs b and b sameAs c, facts about a reach c.

⚠️ Predicates are not rewritten. If you assert owl:sameAs between two PROPERTIES, the identity itself is closed, but facts are not restated under the co-referent property — ex:box ex:hosts ex:svc with ex:hosts owl:sameAs ex:runs does not entail ex:box ex:runs ex:svc. This is OWL 2 RL’s eq-rep-p, and it is not implemented: the rule language (reasoner/ast.rs) can only put variables in argument position, so a rule quantifying over the predicate is not expressible. Use owl:equivalentProperty instead, which IS materialized and is the right axiom for saying two properties mean the same thing. Tracked as the named gap on aegis-yro9m.

Before 2026-09-06 owl:sameAs was not implemented at all: assertions were accepted and stayed completely inert, so a reader landing on one twin never saw the other’s facts (aegis-yro9m, filed after the identity had been asserted 191 times on a live store).

Materialization

Materialized facts are written with source = "owl:materialize" into ROOT’s companion inferred graph (urn:quipu:graph:root#inferred, quipu-0b6) — quarantined by placement, composed back in with FROM <urn:quipu:graph:root> FROM <urn:quipu:graph:root#inferred>. When an ontology changes, derived facts can be re-materialized.

Materialization runs to fixpoint across axiom families: a type introduced by rdfs:range feeds the subclass closure of the next pass, and passes repeat until one derives nothing new. (Before 2026-08-27 it was one-shot — each family ran once over base facts, so composed entailments were silently missing and the recorded workaround was re-encoding OWL axioms as Datalog rules.) Each pass derives only facts not already present, so re-running materialization at fixpoint is a no-op and the report counts stay honest.

Materialization can also stay live: with [quipu.owl] reactive_materialize = true (requires the owl and reactive-reasoner features — release full builds have both), the server re-runs materialization whenever a committed write touches vocabulary the loaded ontologies mention, so the closure extends as members arrive instead of going stale after load. Default off: it is a per-write cost a deployment should choose.

ex:fido a ex:Dog .
ex:Dog rdfs:subClassOf ex:Mammal .
ex:Mammal rdfs:subClassOf ex:Animal .

After materialization, ASK FROM <urn:quipu:graph:root> FROM <urn:quipu:graph:root#inferred> { ex:fido a ex:Animal } returns true — a plain ASK does not, because the entailment lives in the companion, not beside its premises.

Write-Time Validation

Enforcement is OPT-IN, and was not wired at all before 2026-08-04. This section previously stated flatly that the two constraints below “are enforced at write time”. That was FALSE for the shipped server: Ontology::validate() implemented both and had no caller — nothing on the write path invoked it, so an ontology could declare a disjointness and every violating write was accepted. The caller landed on 2026-08-04.

It is recorded here rather than quietly corrected because the failure mode is the doc, not the code: a capability claim in a manual is not tested, it is BELIEVED, so it stops the reader checking the very thing that is broken.

Two OWL constraints are enforced at write time by default when built with the owl feature. Set owl.validate_on_write = false only for an explicitly informal deployment. Before adopting new axioms, measure the existing graph: turning an incompatible declaration into live policy can reject future writes that touch historical drift.

Disjoint classes: If ex:Person owl:disjointWith ex:Robot, then an entity cannot be typed as both. Attempting to assert ex:alice a ex:Robot when ex:alice a ex:Person already exists returns a structured error and the write is rolled back.

Functional properties: If ex:ssn a owl:FunctionalProperty, an entity can have at most one current value. A later value supersedes the earlier one while preserving history; two competing values in one batch are rejected because the write provides no ordering.

Both reject the whole transaction: the constraint runs inside the write’s savepoint, so a violating batch commits nothing. Violations are reported together rather than one per round-trip.

Constraints are evaluated against the union of all loaded ontologies, and a load or remove through POST /ontology takes effect on the next write.

Feature Flag

OWL support is behind the owl feature flag:

cargo build --features owl
cargo test --features owl

The shacl feature continues to work independently.

The Reasoner

Raw facts tell you what is. The reasoner tells you what follows.

Quipu’s reasoner is a stratified Datalog engine that reads the EAVT fact log, applies rules, and writes derived facts into the store. Derived facts are quarantined by placement (quipu-0b6, 2026-08-27): they live in the premise graph’s companion inferred graph — <graph>#inferred, with ROOT’s at urn:quipu:graph:root#inferred — never beside the facts they were derived from. A plain query sees asserted facts only; a query that wants the closure composes it explicitly:

ASK FROM <urn:quipu:graph:root> FROM <urn:quipu:graph:root#inferred>
    { <traefik> <runsOn> <koror> }

Within the companion, derived facts behave like any other fact — SPARQL, SHACL, time travel all work — their source tag traces to the rule that produced them, and the graph itself carries aegis:sourceKind "inferred" and a quipu:derivedAsOfTx freshness note (the premise-side transaction head the closure last reflected). The #inferred suffix is reserved: external writes to a companion are refused, so entailments cannot be forged by hand. Pre-regime stores move their legacy-placed derivations across with quipu db migrate-inferred.

Why Derive Facts?

Consider a homelab with containers running on hosts. You’ve recorded:

traefik  runsOn  webproxy
webproxy runsOn  koror

A human reads this and concludes “traefik transitively runs on koror.” But SPARQL doesn’t know that unless you either:

1. Query-time: write a property path (runsOn+) every time you ask
2. Write-time: materialise the transitive closure once and query it directly

Option 1 works for simple cases. But as your graph grows — services depending on packages, packages installed in containers, containers running on hosts — the property paths get unwieldy, slow, and duplicated across queries. Option 2 is what the reasoner does: derive the facts once, keep them fresh, and let every query benefit.

Rules as Horn Clauses

A rule says “if these conditions hold, then this fact is true”:

runsOn(?svc, ?host) :- runsOn(?svc, ?container), runsOn(?container, ?host).

Read this as: “if service S runs on container C, and container C runs on host H, then service S runs on host H.” The part before :- is the head (what gets derived). The parts after are the body (what must already be true).

Rules in Quipu are written in Turtle files using a simple vocabulary:

ex:runs_on_transitive a rule:Rule ;
    rule:id "runs_on_transitive" ;
    rule:head "runsOn(?svc, ?host)" ;
    rule:body "runsOn(?svc, ?container), runsOn(?container, ?host)" .

The head and body are string literals that the reasoner parses. Bare predicate names like runsOn are expanded using a configurable prefix, so you don’t need to write full IRIs inside the rule strings.

Stratification: Layered Evaluation

When rules depend on each other, the reasoner needs to evaluate them in the right order. This is called stratification.

Consider two rules:

dependsOn(?a, ?c)  :- dependsOn(?a, ?b), dependsOn(?b, ?c).
affects(?pkg, ?svc) :- installedIn(?pkg, ?c), runsService(?c, ?svc).

The first rule is self-recursive — it reads and writes dependsOn. The second reads installedIn and runsService (which no rule produces) and writes affects. These rules are independent and could run in either order.

The stratifier builds a dependency graph between predicates and groups rules into strata (layers):

• Stratum 0: Base facts — predicates that appear only in rule bodies (installedIn, runsService). No rules to evaluate here.
• Stratum 1: Rules that only depend on base facts (affects).
• Stratum 2: Rules that depend on stratum 1 results.
• And so on.

Rules within the same stratum can be positively recursive (like transitive dependsOn). The evaluator handles this with semi-naive iteration: it keeps applying the rule until no new facts are derived, using only the newly-derived facts from the previous round to avoid redundant work.

What the stratifier won’t allow is a negation cycle — rule A negates a predicate that rule B produces, and rule B negates something rule A produces. This would make evaluation non-deterministic, so the reasoner rejects it at load time with an error naming the offending predicates.

The Evaluation Cycle

Each time the reasoner runs, it performs a full re-derive-and-diff:

1. Stratify the ruleset (this is cheap — just graph analysis)
2. Load the current world: read all relevant facts from the store
3. Evaluate each stratum in order, running rules to fixpoint
4. Diff each rule’s new derivations against its old ones
5. Write asserts for new facts, retracts for stale ones

Step 4 is the key insight. Rather than tracking which base facts changed and propagating deltas (truth maintenance), the reasoner re-derives everything and compares. At the target scale of ~50K facts, this is fast enough to complete in milliseconds and dramatically simpler to get correct.

Every derived fact is written through Store::transact() with a source tag like reasoner:depends_on_transitive, so you can always tell which rule produced a fact and when.

Reactive Evaluation

Running quipu reason manually works, but you’d have to remember to run it after every change. Reactive evaluation automates this: the reasoner registers as a TransactObserver on the store and fires automatically after every commit.

When a transaction lands, the reactive reasoner:

1. Checks which predicates changed
2. Finds the rules whose bodies reference those predicates
3. Follows the dependency chain to find transitively affected rules
4. Re-evaluates only the affected strata
5. Writes any new asserts or retracts

This means derived facts stay fresh without explicit invocation. Add a new runsOn edge, and the transitive closure updates in the same transaction boundary.

The reactive reasoner is smart enough to skip its own output — when it sees a transaction with source = "reasoner:...", it doesn’t re-trigger. This prevents infinite loops.

Speculate: “What If?” Queries

Sometimes you want to explore hypothetical changes without committing them. The speculate() API does exactly this:

#![allow(unused)]
fn main() {
let report = store.speculate(&hypothetical_datums, timestamp, |store| {
    // Inside here, the store contains the hypothetical facts.
    // Run the reasoner, query the results, whatever you need.
    evaluate(store, &ruleset, timestamp)
})?;
// Here the hypothetical facts are gone — the store is unchanged.
}

Under the hood, speculate() opens a SQLite savepoint, applies the hypothetical facts, runs your closure, then rolls back. The store is never modified. This lets you answer questions like:

• “What would change if I remove this package from this container?”
• “If koror goes down, which derived dependencies break?”
• “What’s the blast radius of upgrading this library?”

Provenance: Tracing Derived Facts

Every derived fact carries metadata that traces it back to its source:

You can query derived facts by their provenance:

PREFIX ont: <http://aegis.gastown.local/ontology/>

SELECT ?entity ?attr ?value
WHERE {
  ?entity ?attr ?value .
  # Filter to only reasoner-derived facts
  FILTER(STRSTARTS(STR(?source), "reasoner:"))
}

Or from the Rust API, filter on the source field of returned facts.

The datafrog Engine

Under the hood, evaluation is powered by datafrog, a ~1500-line Rust crate used by the Rust compiler itself for borrow checking. It implements semi-naive evaluation with no runtime dependencies, no services to manage, and no allocation overhead worth measuring at homelab scale.

You never interact with datafrog directly — it’s an implementation detail. The reasoner compiles your Horn clause rules into datafrog join plans and runs them inside while iteration.changed() loops.

What’s Next

• The Rule Builder — write your first rules
• Reasoner Reference — rule syntax, CLI, API, errors
• Impact Analysis — put the reasoner to work

Embeddings and Semantic Search

Quipu answers two different kinds of question. Lexical retrieval (SPARQL, CONTAINS, exact match) needs nothing but the fact log. Semantic retrieval (/context, quipu_hybrid_search, /search) needs vectors, and vectors need an embedding provider you configure yourself.

Nothing about semantic retrieval is on by default. This page is the checklist for turning it on, and — just as important — for telling whether it is on.

What knot does and does not do

This asymmetry surprises people, so it is worth stating plainly:

A graph loaded from Turtle therefore holds no embeddings. Semantic retrieval over it returns nothing at all — successfully, with a 200 and an empty result — until you backfill.

$ quipu knot alphax.ttl --db na.db
knotted 2579 facts from alphax.ttl (tx 1)

$ quipu-server --db na.db --embed-backfill   # <- the missing step

Configuring a provider

Two things are required, and having one without the other is the common failure:

1. The runtime. Build with --features onnx. This supplies the ONNX runtime only. It does not supply a model, and a build with the feature on is not a build that can embed.
2. A model on disk, plus the paths to it in .bobbin/config.toml:

[quipu.embedding]
auto_embed = true
model_path = "models/all-MiniLM-L6-v2/onnx/model.onnx"
tokenizer_path = "models/all-MiniLM-L6-v2/tokenizer.json"
dimension = 384

The model files are fetched separately (for example from the sentence-transformers/all-MiniLM-L6-v2 repository on Hugging Face). Sandboxed environments may not have network access to a model host, in which case the files have to be provisioned into the image or volume ahead of time.

dimension must match the model. Both model_path and tokenizer_path must be set — with either missing, the server skips provider construction entirely and starts without embeddings.

Telling whether it worked

Three signals, in the order you will meet them.

At startup, a loaded provider announces itself:

ONNX embedding provider loaded (dim=384, auto_embed=true, deferred)

--embed-backfill is fatal when it cannot run. The flag is an explicit request for a capability, so a server that cannot honour it exits non-zero rather than starting up without it. The error names the configuration it needs. Drop the flag if you deliberately want to serve without embeddings.

Every retrieval response carries its own status. /context, quipu_unified_search, and quipu_hybrid_search all report:

{
  "entities": [],
  "summary": {
    "total_entities": 0,
    "direct_hits": 0,
    "embeddings": { "configured": false, "embedded_entities": 0 }
  }
}

Read it as:

That last row is the point of the field: without it, an empty entities list means either “nothing matched” or “this was never going to work”, and the two are indistinguishable from the response alone.

What degrades without a provider

Only the semantic half. Everything lexical keeps working:

• Works: SPARQL (including exact-match grounding), /query, /knot, /context text search, link expansion, SHACL, the reasoner.
• Empty or refused: vector similarity in /search and quipu_hybrid_search, the Semantic relevance hits inside /context.

quipu_hybrid_search called with a query string and no provider returns an error naming the missing configuration, rather than an empty result set. You can also bypass the provider entirely by passing a pre-computed embedding array.

SPARQL from Zero

This tutorial teaches SPARQL using a concrete homelab dataset. Every query has sample data, the query itself, and the results table — so you can follow along by loading the data into Quipu and running the queries yourself.

The Sample Dataset

Save this as homelab.ttl:

@prefix hw:   <http://example.org/homelab/> .
@prefix xsd:  <http://www.w3.org/2001/XMLSchema#> .
@prefix rdfs: <http://www.w3.org/2000/01/rdf-schema#> .
@prefix rdf:  <http://www.w3.org/1999/02/22-rdf-syntax-ns#> .

# --- Hosts ---
hw:koror      a hw:Host ;
    rdfs:label      "koror" ;
    hw:hostname     "koror.example" ;
    hw:cpuCores     "8"^^xsd:integer ;
    hw:memoryMB     "32768"^^xsd:integer ;
    hw:role         "hypervisor" .

hw:palau      a hw:Host ;
    rdfs:label      "palau" ;
    hw:hostname     "palau.example" ;
    hw:cpuCores     "4"^^xsd:integer ;
    hw:memoryMB     "16384"^^xsd:integer ;
    hw:role         "storage" .

hw:yap        a hw:Host ;
    rdfs:label      "yap" ;
    hw:hostname     "yap.example" ;
    hw:cpuCores     "4"^^xsd:integer ;
    hw:memoryMB     "8192"^^xsd:integer ;
    hw:role         "edge" .

# --- Services ---
hw:traefik    a hw:WebApp ;
    rdfs:label      "traefik" ;
    hw:runsOn       hw:koror ;
    hw:port         "443"^^xsd:integer ;
    hw:dependsOn    hw:pihole .

hw:pihole     a hw:Service ;
    rdfs:label      "pihole" ;
    hw:runsOn       hw:koror ;
    hw:port         "53"^^xsd:integer .

hw:grafana    a hw:WebApp ;
    rdfs:label      "grafana" ;
    hw:runsOn       hw:koror ;
    hw:port         "3000"^^xsd:integer ;
    hw:dependsOn    hw:prometheus .

hw:prometheus a hw:Service ;
    rdfs:label      "prometheus" ;
    hw:runsOn       hw:palau ;
    hw:port         "9090"^^xsd:integer .

hw:minio      a hw:Service ;
    rdfs:label      "minio" ;
    hw:runsOn       hw:palau ;
    hw:port         "9000"^^xsd:integer .

hw:nginx      a hw:WebApp ;
    rdfs:label      "nginx" ;
    hw:runsOn       hw:yap ;
    hw:port         "80"^^xsd:integer ;
    hw:dependsOn    hw:minio .

# --- Type hierarchy ---
hw:WebApp     rdfs:subClassOf hw:Service .

Load it:

quipu knot homelab.ttl --db homelab.db

1. Your First Query: SELECT

A SPARQL query matches patterns against the graph. The simplest pattern is a single triple with a variable:

SELECT ?host
WHERE {
  ?host a <http://example.org/homelab/Host> .
}

This says “find every ?host that has type hw:Host.” The a keyword is shorthand for rdf:type.

Run it:

quipu read "SELECT ?host WHERE { ?host a <http://example.org/homelab/Host> }" \
  --db homelab.db

2. Multiple Patterns: JOIN

Add more patterns to narrow results. Patterns in the same WHERE block are joined — every pattern must match:

SELECT ?host ?cores
WHERE {
  ?host a <http://example.org/homelab/Host> .
  ?host <http://example.org/homelab/cpuCores> ?cores .
}

3. Using Prefixes

Full IRIs are verbose. SPARQL supports PREFIX declarations (without the @ and trailing . that Turtle uses):

PREFIX hw: <http://example.org/homelab/>

SELECT ?host ?cores
WHERE {
  ?host a hw:Host .
  ?host hw:cpuCores ?cores .
}

The results are identical. Use prefixes in every query from here on.

4. FILTER: Narrowing Results

FILTER applies conditions to bound variables:

PREFIX hw:  <http://example.org/homelab/>
PREFIX xsd: <http://www.w3.org/2001/XMLSchema#>

SELECT ?host ?mem
WHERE {
  ?host a hw:Host .
  ?host hw:memoryMB ?mem .
  FILTER(?mem > 10000)
}

String filters

PREFIX hw: <http://example.org/homelab/>

SELECT ?svc ?label
WHERE {
  ?svc a hw:Service .
  ?svc <http://www.w3.org/2000/01/rdf-schema#label> ?label .
  FILTER(CONTAINS(?label, "pi"))
}

Available filter functions: =, !=, <, >, <=, >=, &&, ||, !, BOUND(), CONTAINS(), REGEX(), LCASE(), isIRI().

5. OPTIONAL: Left Joins

Not every service has a dependsOn edge. OPTIONAL includes the match if it exists, but doesn’t exclude the row if it doesn’t:

PREFIX hw: <http://example.org/homelab/>

SELECT ?svc ?dep
WHERE {
  ?svc a hw:Service .
  OPTIONAL { ?svc hw:dependsOn ?dep . }
}

Services without dependencies appear with an empty ?dep column.

6. UNION: Combining Patterns

UNION matches rows from either branch:

PREFIX hw: <http://example.org/homelab/>

SELECT ?thing ?label
WHERE {
  {
    ?thing a hw:Host .
    ?thing <http://www.w3.org/2000/01/rdf-schema#label> ?label .
  }
  UNION
  {
    ?thing a hw:WebApp .
    ?thing <http://www.w3.org/2000/01/rdf-schema#label> ?label .
  }
}

Returns all hosts and web apps.

7. ORDER BY, LIMIT, OFFSET

Sort and paginate results:

PREFIX hw: <http://example.org/homelab/>

SELECT ?host ?mem
WHERE {
  ?host a hw:Host .
  ?host hw:memoryMB ?mem .
}
ORDER BY DESC(?mem)
LIMIT 2

OFFSET 1 LIMIT 1 would skip koror and return only palau.

8. Aggregates: COUNT, SUM, AVG

Group and aggregate with GROUP BY:

PREFIX hw: <http://example.org/homelab/>

SELECT ?host (COUNT(?svc) AS ?serviceCount)
WHERE {
  ?svc hw:runsOn ?host .
}
GROUP BY ?host
ORDER BY DESC(?serviceCount)

Total resources

PREFIX hw: <http://example.org/homelab/>

SELECT (SUM(?cores) AS ?totalCores) (SUM(?mem) AS ?totalMem)
WHERE {
  ?host a hw:Host .
  ?host hw:cpuCores ?cores .
  ?host hw:memoryMB ?mem .
}

HAVING: Filter on aggregates

PREFIX hw: <http://example.org/homelab/>

SELECT ?host (COUNT(?svc) AS ?n)
WHERE {
  ?svc hw:runsOn ?host .
}
GROUP BY ?host
HAVING(?n > 1)

9. RDFS Subclass Inference

Remember that hw:WebApp rdfs:subClassOf hw:Service. A constant type form infers; a variable type form does not. The two spellings answer different questions, and the response says which one you got.

PREFIX hw: <http://example.org/homelab/>

SELECT ?svc
WHERE {
  ?svc a hw:Service .
}

This returns every service including those asserted only as hw:WebApp, because a constant type form is expanded over rdfs:subClassOf. Quipu’s formal default is reasoning-on.

Two spellings, two questions

# INFERS — a constant type is expanded over rdfs:subClassOf.  -> 6
SELECT (COUNT(DISTINCT ?s) AS ?n) WHERE { ?s a hw:Service }

# ASSERTED ONLY — a VARIABLE type plus a filter is not expanded.  -> 3
SELECT (COUNT(DISTINCT ?s) AS ?n) WHERE { ?s a ?t . FILTER(?t = hw:Service) }

On this tutorial’s dataset that is 6 against 3: three entities are asserted hw:Service (pihole, prometheus, minio) and three are asserted hw:WebApp (traefik, grafana, nginx), which the constant form folds in.

⚠️ A hit on the constant form does not prove direct typing. An entity typed only as hw:WebApp satisfies ?s a hw:Service. If you are checking that something carries a type — a governance gate, an ingest read-back — the constant form will pass on a subclass and tell you nothing was wrong. Use the variable form plus a filter, or read the marker below.

The explicit path form remains available and is unaffected by the default:

SELECT (COUNT(DISTINCT ?s) AS ?n) WHERE { ?s a/rdfs:subClassOf* hw:Service }

The marker: what was folded in

Ambiguity here is expensive: both spellings return HTTP 200 and both counts are individually plausible, so a number answering the other question does not look wrong. Quipu therefore reports the expansion, on exactly the queries whose answer it could have changed:

{
  "count": 6,
  "inference": {
    "applied": true,
    "expandedTypes": [
      {"type": "http://example.org/homelab/Service",
       "subclasses": ["http://example.org/homelab/WebApp"]}
    ],
    "note": "RDFS subclass expansion was applied to the constant rdf:type pattern; use a variable type plus FILTER for an asserted-only census"
  }
}

The field is absent when the query was not expanded, so its presence is the signal. The subclasses are named because “inference happened” is not actionable on its own — the reader needs to know that Service swallowed WebApp. A leaf type is never reported: with no subclasses there is nothing to fold in.

History, so an older reading does not mislead. For a period this page documented the opposite — an asserted-only constant form announcing "applied": false with a withheldTypes list. That flip was reverted when formal reasoning defaults were enabled, and that marker shape no longer exists. If you are looking for withheldTypes, you are reading a build that is gone; branch on inference.applied instead.

Every result shape carries it — including ASK

The marker is not a SELECT feature. ASK is the shape most in need of it:

ASK { hw:postgres a hw:Service }     # -> {"result": false, "inference": {...}}

hw:postgres may be asserted only as hw:DatabaseService — nothing in the graph says it is a hw:Service, so this now answers false. A boolean gives you no number to look at twice, so the marker makes the semantic change visible. CONSTRUCT/DESCRIBE carry it too: their formerly inferred triples are likewise withheld unless the query uses the explicit path.

What the marker claims. It says the old implicit expansion was withheld from this query. It does not say the resulting answer necessarily changed: a marked ASK can still be true about a directly asserted fact. To ask the inferred question, use the explicit path; to inspect asserted types, ask:

SELECT ?t WHERE { hw:postgres a ?t }    # what is it ACTUALLY typed as?

Standard result formats: the marker moves to a header

If you request a W3C shape with Accept (application/sparql-results+json, application/sparql-results+xml, text/turtle), the body is fixed by spec and has nowhere to put the marker. It travels as a response header instead, naming the affected type constants:

x-quipu-inference: withheld: http://example.org/homelab/Service

Same rule: the header is absent when the flip did not affect the query. The body is untouched and stays conformant, so a standard parser is unaffected — but a client that ignores headers gets no signal, which is a reason to prefer the default JSON shape when the distinction matters. Full withheldTypes detail is one Accept-free request away.

10. Property Paths

SPARQL 1.1 property paths let you traverse edges without binding intermediate variables.

Sequence (/)

“What hosts do web apps’ dependencies run on?”

PREFIX hw: <http://example.org/homelab/>

SELECT ?app ?depHost
WHERE {
  ?app a hw:WebApp .
  ?app hw:dependsOn/hw:runsOn ?depHost .
}

hw:dependsOn/hw:runsOn means: follow dependsOn, then follow runsOn.

Transitive closure (* and +)

If you had a chain like A dependsOn B dependsOn C, you could traverse the full dependency chain:

PREFIX hw: <http://example.org/homelab/>

SELECT ?svc ?transitiveDep
WHERE {
  ?svc hw:dependsOn+ ?transitiveDep .
}

+ means “one or more hops.” * means “zero or more” (includes the starting node itself).

Alternative (|)

Match either predicate:

PREFIX hw: <http://example.org/homelab/>

SELECT ?thing ?name
WHERE {
  ?thing (hw:hostname|<http://www.w3.org/2000/01/rdf-schema#label>) ?name .
}

Reverse (^)

“What services does koror host?” using reverse traversal:

PREFIX hw: <http://example.org/homelab/>

SELECT ?svc
WHERE {
  hw:koror ^hw:runsOn ?svc .
}

^hw:runsOn means “follow runsOn edges backwards.”

11. Temporal Queries

Every SPARQL query in Quipu can include a temporal context.

Valid-time travel

“What did the homelab look like on March 15?”

quipu read "PREFIX hw: <http://example.org/homelab/>
SELECT ?host ?cores WHERE {
  ?host a hw:Host .
  ?host hw:cpuCores ?cores .
}" --db homelab.db --valid-at 2026-03-15

Via REST:

curl -s localhost:3030/query -X POST \
  -H "Content-Type: application/json" \
  -d '{
    "query": "PREFIX hw: <http://example.org/homelab/> SELECT ?host ?cores WHERE { ?host a hw:Host . ?host hw:cpuCores ?cores }",
    "valid_at": "2026-03-15"
  }'

Transaction-time travel

“What did the database know after the first 5 transactions?”

quipu read "SELECT ?s ?p ?o WHERE { ?s ?p ?o }" --db homelab.db --tx 5

12. Other Query Forms

ASK: Yes/No Questions

PREFIX hw: <http://example.org/homelab/>

ASK { hw:koror a hw:Host }

Returns true or false.

CONSTRUCT: Build New Triples

PREFIX hw: <http://example.org/homelab/>

CONSTRUCT {
  ?svc hw:colocatedWith ?other .
}
WHERE {
  ?svc hw:runsOn ?host .
  ?other hw:runsOn ?host .
  FILTER(?svc != ?other)
}

Returns triples showing which services share a host.

DESCRIBE: Entity Details

PREFIX hw: <http://example.org/homelab/>

DESCRIBE hw:koror

Returns all triples where koror is the subject.

Cheat Sheet

What’s Next

• Homelab Operator Tutorial — model a full infrastructure
• Temporal Model — deep dive on time-travel
• REST API Reference — every endpoint

The Homelab Operator

“I want to know what breaks if koror goes down.”

You run a homelab — a handful of machines with dozens of services, wired together with reverse proxies, DNS, and hope. You need a way to track what runs where, what depends on what, and what the blast radius is when a host goes down.

This tutorial walks through modeling your infrastructure as a knowledge graph, querying dependencies with SPARQL, and ingesting changes from monitoring agents.

Step 1: Model Your Infrastructure

Create homelab.ttl with your hosts and services:

@prefix hw:   <http://example.org/homelab/> .
@prefix xsd:  <http://www.w3.org/2001/XMLSchema#> .
@prefix rdfs: <http://www.w3.org/2000/01/rdf-schema#> .

# Type hierarchy
hw:WebApp     rdfs:subClassOf hw:Service .
hw:Database   rdfs:subClassOf hw:Service .

# Hosts
hw:koror a hw:Host ;
    rdfs:label   "koror" ;
    hw:hostname  "koror.example" ;
    hw:cpuCores  "8"^^xsd:integer ;
    hw:memoryMB  "32768"^^xsd:integer .

hw:palau a hw:Host ;
    rdfs:label   "palau" ;
    hw:hostname  "palau.example" ;
    hw:cpuCores  "4"^^xsd:integer ;
    hw:memoryMB  "16384"^^xsd:integer .

# Services
hw:traefik a hw:WebApp ;
    rdfs:label    "traefik" ;
    hw:runsOn     hw:koror ;
    hw:port       "443"^^xsd:integer ;
    hw:dependsOn  hw:pihole .

hw:pihole a hw:Service ;
    rdfs:label  "pihole" ;
    hw:runsOn   hw:koror ;
    hw:port     "53"^^xsd:integer .

hw:grafana a hw:WebApp ;
    rdfs:label    "grafana" ;
    hw:runsOn     hw:koror ;
    hw:dependsOn  hw:prometheus ;
    hw:dependsOn  hw:postgres .

hw:prometheus a hw:Service ;
    rdfs:label  "prometheus" ;
    hw:runsOn   hw:palau .

hw:postgres a hw:Database ;
    rdfs:label  "postgres" ;
    hw:runsOn   hw:palau ;
    hw:port     "5432"^^xsd:integer .

hw:nginx a hw:WebApp ;
    rdfs:label    "nginx" ;
    hw:runsOn     hw:palau ;
    hw:dependsOn  hw:postgres .

Load it:

quipu knot homelab.ttl --db homelab.db

Step 2: Query — What Runs on Each Host?

PREFIX hw: <http://example.org/homelab/>
PREFIX rdfs: <http://www.w3.org/2000/01/rdf-schema#>

SELECT ?host ?svc
WHERE {
  ?svc hw:runsOn ?host .
  ?host rdfs:label ?hostLabel .
  ?svc rdfs:label ?svcLabel .
}
ORDER BY ?hostLabel

quipu read "PREFIX hw: <http://example.org/homelab/>
PREFIX rdfs: <http://www.w3.org/2000/01/rdf-schema#>
SELECT ?hostLabel ?svcLabel WHERE {
  ?svc hw:runsOn ?host .
  ?host rdfs:label ?hostLabel .
  ?svc rdfs:label ?svcLabel .
} ORDER BY ?hostLabel ?svcLabel" --db homelab.db

Step 3: Impact Analysis — What Breaks if Koror Goes Down?

This is the killer query. Find all services on koror, then find everything that depends on them (directly or transitively):

PREFIX hw: <http://example.org/homelab/>
PREFIX rdfs: <http://www.w3.org/2000/01/rdf-schema#>

SELECT ?affected ?label
WHERE {
  ?affected hw:dependsOn+/hw:runsOn hw:koror .
  ?affected rdfs:label ?label .
}

The property path hw:dependsOn+/hw:runsOn means: follow one or more dependsOn edges, then one runsOn edge, and check if it lands on koror.

Traefik depends on pihole, which runs on koror. But traefik itself also runs on koror — so if koror goes down, you lose traefik, pihole, and grafana (all locally hosted), plus anything that transitively depends on them.

A more complete impact query — services that run on koror OR depend on services running on koror:

PREFIX hw: <http://example.org/homelab/>
PREFIX rdfs: <http://www.w3.org/2000/01/rdf-schema#>

SELECT DISTINCT ?svc ?label
WHERE {
  {
    ?svc hw:runsOn hw:koror .
  }
  UNION
  {
    ?svc hw:dependsOn+/hw:runsOn hw:koror .
  }
  ?svc rdfs:label ?label .
}

Step 4: Enforce Structure with SHACL

Prevent malformed data from entering the graph. Create homelab.shapes.ttl:

@prefix sh:   <http://www.w3.org/ns/shacl#> .
@prefix hw:   <http://example.org/homelab/> .
@prefix xsd:  <http://www.w3.org/2001/XMLSchema#> .

hw:HostShape a sh:NodeShape ;
    sh:targetClass hw:Host ;
    sh:property [
        sh:path hw:hostname ;
        sh:datatype xsd:string ;
        sh:minCount 1 ;
        sh:maxCount 1 ;
    ] ;
    sh:property [
        sh:path hw:cpuCores ;
        sh:datatype xsd:integer ;
        sh:minCount 1 ;
    ] .

hw:ServiceShape a sh:NodeShape ;
    sh:targetClass hw:Service ;
    sh:property [
        sh:path hw:runsOn ;
        sh:class hw:Host ;
        sh:minCount 1 ;
        sh:maxCount 1 ;
    ] .

Load shapes and validate:

quipu shapes load --name homelab --file homelab.shapes.ttl --db homelab.db

Now any new service without a runsOn edge is rejected.

Step 5: Ingest from Monitoring Agents

When an agent discovers new infrastructure, it can push episodes:

curl -s localhost:3030/episode -X POST \
  -H "Content-Type: application/json" \
  -d '{
    "name": "prometheus-discovery-2026-04-04",
    "source": "prometheus-sd",
    "nodes": [
      {"name": "redis", "type": "Service", "description": "Cache layer"},
      {"name": "yap", "type": "Host", "properties": {"hostname": "yap.example"}}
    ],
    "edges": [
      {"source": "redis", "target": "yap", "relation": "runsOn"},
      {"source": "nginx", "target": "redis", "relation": "dependsOn"}
    ]
  }'

The episode creates entities and relationships in a single transaction, with provenance tracking back to the discovery agent.

Step 6: Time-Travel After Changes

After adding redis, query what the graph looked like before:

quipu read "PREFIX hw: <http://example.org/homelab/>
SELECT ?svc WHERE { ?svc a hw:Service }" --db homelab.db --tx 1

Transaction 1 only had the original six services. The current state includes redis.

Useful Queries for Operators

Services with no dependencies (leaf nodes)

PREFIX hw: <http://example.org/homelab/>
PREFIX rdfs: <http://www.w3.org/2000/01/rdf-schema#>

SELECT ?svc ?label
WHERE {
  ?svc a hw:Service .
  ?svc rdfs:label ?label .
  FILTER NOT EXISTS { ?svc hw:dependsOn ?dep }
}

Hosts sorted by service count

PREFIX hw: <http://example.org/homelab/>
PREFIX rdfs: <http://www.w3.org/2000/01/rdf-schema#>

SELECT ?hostLabel (COUNT(?svc) AS ?n)
WHERE {
  ?svc hw:runsOn ?host .
  ?host rdfs:label ?hostLabel .
}
GROUP BY ?hostLabel
ORDER BY DESC(?n)

Resource utilization summary

PREFIX hw: <http://example.org/homelab/>

SELECT (SUM(?cores) AS ?totalCores) (SUM(?mem) AS ?totalMB)
       (COUNT(?host) AS ?hostCount)
WHERE {
  ?host a hw:Host .
  ?host hw:cpuCores ?cores .
  ?host hw:memoryMB ?mem .
}

Step 7: Materialise Dependencies with the Reasoner

The property path queries above (dependsOn+, runsOn+) re-derive transitive chains every time you run them. For a graph you query often, the reasoner can materialise those chains once and keep them fresh.

Create infra-rules.ttl:

@prefix rule: <http://quipu.local/rule#> .
@prefix ex:   <http://example.org/rules/> .

ex:homelab a rule:RuleSet ;
    rule:defaultPrefix "http://example.org/homelab/" .

ex:depends_on_transitive a rule:Rule ;
    rule:id "depends_on_transitive" ;
    rule:head "dependsOn(?a, ?c)" ;
    rule:body "dependsOn(?a, ?b), dependsOn(?b, ?c)" .

ex:runs_on_transitive a rule:Rule ;
    rule:id "runs_on_transitive" ;
    rule:head "runsOn(?svc, ?host)" ;
    rule:body "runsOn(?svc, ?mid), runsOn(?mid, ?host)" .

Run it:

quipu reason --rules infra-rules.ttl --db homelab.db

Now the “what breaks if koror goes down?” query simplifies — no property paths needed:

PREFIX hw: <http://example.org/homelab/>
PREFIX rdfs: <http://www.w3.org/2000/01/rdf-schema#>

SELECT DISTINCT ?svc ?label
WHERE {
  ?svc hw:runsOn hw:koror .
  ?svc rdfs:label ?label .
}

This returns both directly-hosted services AND services that transitively run on koror via containers, because the reasoner already computed the transitive closure.

Stay Fresh with Reactive Evaluation

Enable reactive mode so derived facts update whenever you add or remove infrastructure:

quipu reason --reactive --rules infra-rules.ttl --db homelab.db

Now when a monitoring agent reports a new container on koror, the transitive runsOn edges update automatically in the same transaction.

“What If?” Before You Change

Before decommissioning a host, ask the reasoner what would break:

#![allow(unused)]
fn main() {
// Hypothetical: retract all runsOn edges to koror
let report = store.speculate(&koror_retractions, timestamp, |s| {
    evaluate(s, &ruleset, timestamp)
})?;
println!("Decommissioning koror would retract {} derived facts", report.retracted);
}

The store remains unchanged — you see the impact without making the change. See The Rule Builder for a complete walkthrough.

What’s Next

• The Rule Builder — write custom rules step by step
• Impact Analysis Recipe — more impact patterns
• SPARQL from Zero — full SPARQL reference tutorial
• Knowledge Gardener — maintain ontology quality

The AI Agent Builder

“I want my agents to share structured knowledge.”

You’re building AI agents that observe the world and need to share what they learn. One agent monitors deployments, another reads incident reports, a third answers questions. They need a shared knowledge layer — structured, validated, and queryable.

Quipu gives agents three things:

1. Episodes — structured write path for agent observations
2. MCP tools — native integration for LLM tool-use
3. Temporal queries — “what did the system look like yesterday?”

Step 1: Agent Writes an Episode

An agent observes a deployment and records it as an episode — a batch of nodes and edges with provenance:

curl -s localhost:3030/episode -X POST \
  -H "Content-Type: application/json" \
  -d '{
    "name": "deploy-v2.3",
    "source": "deploy-agent",
    "episode_body": "Deployed v2.3 of the API service to production",
    "group_id": "deployments",
    "nodes": [
      {
        "name": "api-v2.3",
        "type": "Deployment",
        "description": "API service version 2.3",
        "properties": {
          "version": "2.3.0",
          "environment": "production",
          "replicas": 3
        }
      },
      {
        "name": "api-service",
        "type": "Service",
        "description": "Core API service"
      }
    ],
    "edges": [
      {"source": "api-v2.3", "target": "api-service", "relation": "deploys"}
    ]
  }'

Response:

{"tx_id": 1, "count": 12}

The episode created 12 triples in a single transaction: entities with types, labels, descriptions, properties, relationships, and provenance metadata.

Step 2: Another Agent Queries It

A Q&A agent needs to answer “what was deployed recently?” It uses the MCP tool quipu_query:

{
  "tool": "quipu_query",
  "input": {
    "query": "PREFIX rdfs: <http://www.w3.org/2000/01/rdf-schema#> PREFIX rdf: <http://www.w3.org/1999/02/22-rdf-syntax-ns#> SELECT ?name ?desc WHERE { ?d a <http://aegis.gastown.local/ontology/Deployment> . ?d rdfs:label ?name . ?d rdfs:comment ?desc }"
  }
}

Response:

{
  "variables": ["name", "desc"],
  "rows": [
    {"name": "api-v2.3", "desc": "API service version 2.3"}
  ],
  "count": 1
}

Step 3: Search by Meaning, Not Just Structure

Agents don’t always know the exact IRI to query. The quipu_search_nodes tool does natural language entity search:

{
  "tool": "quipu_search_nodes",
  "input": {
    "query": "API deployment",
    "max_results": 5
  }
}

Response:

{
  "nodes": [
    {
      "name": "api-v2.3",
      "entity_type": "Deployment",
      "description": "API service version 2.3",
      "score": 0.87
    }
  ],
  "count": 1
}

For relationship search, use quipu_search_facts:

{
  "tool": "quipu_search_facts",
  "input": {
    "query": "deploys",
    "max_results": 10
  }
}

Step 4: Temporal Queries — What Changed?

An incident-response agent needs to see what the graph looked like before a problem started. Add valid_at to any query:

{
  "tool": "quipu_query",
  "input": {
    "query": "PREFIX rdfs: <http://www.w3.org/2000/01/rdf-schema#> SELECT ?name WHERE { ?d a <http://aegis.gastown.local/ontology/Deployment> . ?d rdfs:label ?name }",
    "valid_at": "2026-04-03"
  }
}

This returns only deployments that existed as of April 3 — before today’s deploy. The agent can diff the two result sets to see what changed.

Step 5: Validate Agent Output

Agents make mistakes. SHACL shapes catch them before they pollute the graph.

Define what a valid Deployment looks like:

@prefix sh:  <http://www.w3.org/ns/shacl#> .
@prefix ont: <http://aegis.gastown.local/ontology/> .
@prefix xsd: <http://www.w3.org/2001/XMLSchema#> .

ont:DeploymentShape a sh:NodeShape ;
    sh:targetClass ont:Deployment ;
    sh:property [
        sh:path <http://www.w3.org/2000/01/rdf-schema#label> ;
        sh:minCount 1 ;
        sh:datatype xsd:string ;
    ] ;
    sh:property [
        sh:path <http://www.w3.org/2000/01/rdf-schema#comment> ;
        sh:minCount 1 ;
    ] .

Load the shapes, then include them in episode ingestion:

curl -s localhost:3030/episode -X POST \
  -H "Content-Type: application/json" \
  -d '{
    "name": "bad-deploy",
    "nodes": [{"name": "oops", "type": "Deployment"}],
    "edges": [],
    "shapes": "@prefix sh: <http://www.w3.org/ns/shacl#> ..."
  }'

If the episode data violates the shapes, the write is rejected with structured feedback the agent can parse and fix.

MCP Tool Reference

See MCP Tools Reference for full parameter details.

Patterns for Multi-Agent Systems

Shared ontology, independent episodes

Each agent writes episodes with its own source and group_id. The shared ontology (types, relationships) is defined once via SHACL shapes. Any agent can query the full graph.

Agent as knowledge gardener

One agent periodically validates the graph against shapes, finds violations, and either fixes them or files issues. See The Knowledge Gardener.

Provenance tracking

Every episode records which agent wrote it. Query provenance:

PREFIX prov: <http://www.w3.org/ns/prov#>
PREFIX rdfs: <http://www.w3.org/2000/01/rdf-schema#>

SELECT ?entity ?episode
WHERE {
  ?entity prov:wasGeneratedBy ?ep .
  ?ep rdfs:label ?episode .
}

Step 6: Derived Knowledge with the Reasoner

Agents write raw facts — “traefik runs on webproxy”, “webproxy runs on koror”. But other agents need to query derived facts — “traefik runs on koror” (transitively). Instead of making every consuming agent write property path queries, use the reasoner to materialise derived facts that every agent can query directly.

Rules as Shared Infrastructure

Define rules once, and every agent benefits:

@prefix rule: <http://quipu.local/rule#> .
@prefix ex:   <http://aegis.gastown.local/rules/> .

ex:agent_rules a rule:RuleSet ;
    rule:defaultPrefix "http://aegis.gastown.local/ontology/" .

# If A depends on B and B depends on C, then A depends on C
ex:depends_on_transitive a rule:Rule ;
    rule:id "depends_on_transitive" ;
    rule:head "dependsOn(?a, ?c)" ;
    rule:body "dependsOn(?a, ?b), dependsOn(?b, ?c)" .

Reactive: Derive on Write

With reactive evaluation enabled, derived facts update every time an agent writes an episode:

quipu reason --reactive --rules agent-rules.ttl --db knowledge.db

Now when the deploy agent writes a new dependsOn edge, the transitive closure updates in the same transaction. The Q&A agent’s next query sees the full dependency chain without any property paths.

Pre-Flight Checks with Speculate

Before a deploy agent pushes a change, it can ask “what would this break?” without actually modifying the graph:

#![allow(unused)]
fn main() {
// Hypothetical: remove the old service version
let report = store.speculate(&removal_datums, timestamp, |s| {
    evaluate(s, &ruleset, timestamp)
})?;

if report.retracted > 0 {
    println!("WARNING: removing old version would retract {} derived facts", report.retracted);
    // Agent can decide to proceed or alert a human
}
// Store is unchanged — safe to inspect before committing
}

This is especially powerful in multi-agent systems: one agent proposes a change, the reasoner evaluates the impact, and a separate agent decides whether to approve it.

Provenance for Derived Facts

Derived facts carry source tags like reasoner:depends_on_transitive. Agents can distinguish raw observations from derived knowledge:

PREFIX ont: <http://aegis.gastown.local/ontology/>

SELECT ?a ?b
WHERE {
  ?a ont:dependsOn ?b .
  # This returns BOTH direct and transitively-derived dependencies
}

The provenance is in the fact metadata — agents that need to distinguish can filter on the source field.

What’s Next

• The Rule Builder — write custom rules step by step
• MCP Tools Reference — full tool docs
• Knowledge Ingestion Recipe — batch patterns
• REST API Reference — all HTTP endpoints

The Code Archaeologist

“I want to understand how this codebase evolved.”

You’re investigating a codebase — not just what the code does now, but what decisions shaped it. Which commit caused that outage? What design rationale lives only in someone’s memory? Quipu, paired with Bobbin, links code symbols to knowledge entities and lets you search across both.

Step 1: Model Code as Knowledge

Code entities (modules, functions, types) become nodes in the graph:

curl -s localhost:3030/episode -X POST \
  -H "Content-Type: application/json" \
  -d '{
    "name": "code-index-2026-04-04",
    "source": "bobbin-indexer",
    "group_id": "code-symbols",
    "nodes": [
      {
        "name": "sparql-engine",
        "type": "CodeModule",
        "description": "SPARQL 1.1 query evaluation engine",
        "properties": {"path": "src/sparql/mod.rs", "language": "rust"}
      },
      {
        "name": "property-path-eval",
        "type": "CodeSymbol",
        "description": "Evaluates SPARQL property path expressions",
        "properties": {"path": "src/sparql/property_path.rs", "symbol": "eval_path"}
      },
      {
        "name": "store-transact",
        "type": "CodeSymbol",
        "description": "Core transaction write path for the fact log",
        "properties": {"path": "src/store/ops.rs", "symbol": "transact"}
      }
    ],
    "edges": [
      {"source": "property-path-eval", "target": "sparql-engine", "relation": "partOf"},
      {"source": "store-transact", "target": "sparql-engine", "relation": "usedBy"}
    ]
  }'

Step 2: Link Decisions to Code

Record architectural decisions as knowledge entities linked to code:

curl -s localhost:3030/episode -X POST \
  -H "Content-Type: application/json" \
  -d '{
    "name": "adr-eavt-design",
    "source": "human",
    "group_id": "decisions",
    "nodes": [
      {
        "name": "adr-001-eavt",
        "type": "Decision",
        "description": "Chose Datomic-style EAVT fact log over traditional triple store for bitemporal support and append-only safety"
      },
      {
        "name": "adr-002-property-paths",
        "type": "Decision",
        "description": "Implemented custom SPARQL property path evaluator instead of using existing library for tighter integration with temporal model"
      }
    ],
    "edges": [
      {"source": "adr-001-eavt", "target": "store-transact", "relation": "influences"},
      {"source": "adr-002-property-paths", "target": "property-path-eval", "relation": "influences"}
    ]
  }'

Step 3: Hybrid Search — Code AND Decisions

Search for entities by meaning, not just name:

curl -s localhost:3030/search/nodes -X POST \
  -H "Content-Type: application/json" \
  -d '{
    "query": "how does the transaction write path work",
    "max_results": 5
  }'

This returns both the store-transact code symbol and the adr-001-eavt decision that influenced it — answering “what” and “why” in one search.

SPARQL for precise queries

PREFIX rdfs: <http://www.w3.org/2000/01/rdf-schema#>
PREFIX ont: <http://aegis.gastown.local/ontology/>

SELECT ?decision ?description
WHERE {
  ?decision a ont:Decision .
  ?decision ont:influences ?code .
  ?code rdfs:label "store-transact" .
  ?decision rdfs:comment ?description .
}

Step 4: Incident Correlation

When something breaks, link the incident to code and time:

curl -s localhost:3030/episode -X POST \
  -H "Content-Type: application/json" \
  -d '{
    "name": "incident-2026-04-02-query-timeout",
    "source": "incident-agent",
    "group_id": "incidents",
    "nodes": [
      {
        "name": "inc-2026-04-02",
        "type": "Incident",
        "description": "SPARQL queries timing out after property path merge",
        "properties": {
          "severity": "P2",
          "started": "2026-04-02T14:30:00Z",
          "resolved": "2026-04-02T16:00:00Z",
          "commit": "abc123"
        }
      }
    ],
    "edges": [
      {"source": "inc-2026-04-02", "target": "property-path-eval", "relation": "causedBy"},
      {"source": "inc-2026-04-02", "target": "sparql-engine", "relation": "affected"}
    ]
  }'

Now you can query: “What code has caused incidents?”

PREFIX ont: <http://aegis.gastown.local/ontology/>
PREFIX rdfs: <http://www.w3.org/2000/01/rdf-schema#>

SELECT ?code ?codePath ?incident ?description
WHERE {
  ?incident a ont:Incident .
  ?incident ont:causedBy ?code .
  ?incident rdfs:comment ?description .
  ?code rdfs:label ?codePath .
}

Step 5: Time-Travel for Context

Combine temporal queries with code knowledge:

“What did we know about the SPARQL engine before the incident?”

curl -s localhost:3030/query -X POST \
  -H "Content-Type: application/json" \
  -d '{
    "query": "PREFIX ont: <http://aegis.gastown.local/ontology/> PREFIX rdfs: <http://www.w3.org/2000/01/rdf-schema#> SELECT ?entity ?desc WHERE { ?entity ont:partOf <http://aegis.gastown.local/ontology/sparql-engine> . ?entity rdfs:comment ?desc }",
    "valid_at": "2026-04-01"
  }'

Step 6: Graph Projection — Dependency Analysis

Visualize module dependencies using graph projection:

curl -s localhost:3030/project -X POST \
  -H "Content-Type: application/json" \
  -d '{
    "type_filter": "http://aegis.gastown.local/ontology/CodeModule"
  }'

This returns a petgraph-compatible adjacency structure. Use it for:

• Centrality: Which modules are most depended upon?
• Components: Which modules form independent clusters?
• Shortest path: How are two modules connected?

curl -s localhost:3030/project -X POST \
  -H "Content-Type: application/json" \
  -d '{
    "predicate_filter": "http://aegis.gastown.local/ontology/usedBy"
  }'

Patterns for Code Archaeology

Link commits to knowledge changes

When a significant commit lands, create an episode with the commit hash, affected code symbols, and a description of intent. Over time, the graph becomes a searchable record of why the code looks the way it does.

Cross-reference documentation

Store doc sections as entities linked to the code they describe. When code changes, search for linked docs that may need updating.

Build a decision log

ADRs (Architecture Decision Records) stored as entities with influences edges to code. When someone asks “why did we do it this way?”, the graph has the answer — queryable by code symbol, by date, or by topic.

Step 7: Derive Influence Chains with the Reasoner

You’ve recorded influences edges between decisions and code symbols. But influence is transitive — if decision A influences module M, and module M is used by module N, then decision A indirectly influences module N. The reasoner can materialise these chains.

Create archaeology-rules.ttl:

@prefix rule: <http://quipu.local/rule#> .
@prefix ex:   <http://aegis.gastown.local/rules/> .

ex:archaeology a rule:RuleSet ;
    rule:defaultPrefix "http://aegis.gastown.local/ontology/" .

# Transitive influence: if A influences B and B is usedBy C, A influences C
ex:influence_through_usage a rule:Rule ;
    rule:id "influence_through_usage" ;
    rule:head "influences(?decision, ?downstream)" ;
    rule:body "influences(?decision, ?code), usedBy(?code, ?downstream)" .

# Transitive partOf: if A is partOf B and B is partOf C, A is partOf C
ex:part_of_transitive a rule:Rule ;
    rule:id "part_of_transitive" ;
    rule:head "partOf(?a, ?c)" ;
    rule:body "partOf(?a, ?b), partOf(?b, ?c)" .

Run it:

quipu reason --rules archaeology-rules.ttl --db knowledge.db

Now you can answer “which decisions influenced this module?” across any depth of the dependency graph, with a flat query:

PREFIX ont: <http://aegis.gastown.local/ontology/>
PREFIX rdfs: <http://www.w3.org/2000/01/rdf-schema#>

SELECT ?decision ?description
WHERE {
  ?decision ont:influences <http://aegis.gastown.local/ontology/sparql-engine> .
  ?decision a ont:Decision .
  ?decision rdfs:comment ?description .
}

Blast Radius for Code Changes

Before refactoring a module, use speculate() to see what derived relationships would break:

#![allow(unused)]
fn main() {
// Hypothetical: remove the usedBy edge from store-transact to sparql-engine
let report = store.speculate(&retractions, timestamp, |s| {
    evaluate(s, &ruleset, timestamp)
})?;
println!("Decoupling these modules would affect {} derived influence chains",
    report.retracted);
}

This tells you which architectural decisions and incident correlations would lose their path to downstream code — before you make the change.

What’s Next

• The Rule Builder — write custom rules step by step
• Incident Correlation Recipe — more patterns
• SPARQL from Zero — learn query patterns
• Graph Projection — API details

The Knowledge Gardener

“I want to curate and validate our ontology.”

You’re responsible for the quality of your knowledge graph. Entities drift, agents write messy data, and over time the graph accumulates orphan nodes, stale edges, and schema violations. Your job is to define what valid data looks like and keep the garden tidy.

Step 1: Define Your Ontology with SHACL

Start by declaring what types of entities exist and what properties they must have. Create ontology.shapes.ttl:

@prefix sh:   <http://www.w3.org/ns/shacl#> .
@prefix ont:  <http://aegis.gastown.local/ontology/> .
@prefix rdfs: <http://www.w3.org/2000/01/rdf-schema#> .
@prefix xsd:  <http://www.w3.org/2001/XMLSchema#> .

# Every entity must have a label
ont:LabeledShape a sh:NodeShape ;
    sh:targetSubjectsOf rdfs:label ;
    sh:property [
        sh:path rdfs:label ;
        sh:datatype xsd:string ;
        sh:minCount 1 ;
    ] .

# Hosts must have hostname and cpuCores
ont:HostShape a sh:NodeShape ;
    sh:targetClass ont:Host ;
    sh:property [
        sh:path ont:hostname ;
        sh:datatype xsd:string ;
        sh:minCount 1 ;
        sh:maxCount 1 ;
    ] ;
    sh:property [
        sh:path ont:cpuCores ;
        sh:datatype xsd:integer ;
        sh:minCount 1 ;
    ] ;
    sh:property [
        sh:path ont:memoryMB ;
        sh:datatype xsd:integer ;
    ] .

# Services must reference a valid Host
ont:ServiceShape a sh:NodeShape ;
    sh:targetClass ont:Service ;
    sh:property [
        sh:path ont:runsOn ;
        sh:class ont:Host ;
        sh:minCount 1 ;
        sh:maxCount 1 ;
    ] .

# Dependencies must point to Services
ont:DependencyShape a sh:NodeShape ;
    sh:targetSubjectsOf ont:dependsOn ;
    sh:property [
        sh:path ont:dependsOn ;
        sh:class ont:Service ;
    ] .

Load the shapes:

quipu shapes load --name ontology --file ontology.shapes.ttl --db knowledge.db

Step 2: Validate Existing Data

Run a dry-run validation against your current graph:

quipu validate --shapes ontology.shapes.ttl --data <(quipu export --db knowledge.db)

Or via REST:

# Export current data
DATA=$(curl -s localhost:3030/query -X POST \
  -H "Content-Type: application/json" \
  -d '{"query": "CONSTRUCT { ?s ?p ?o } WHERE { ?s ?p ?o }"}' | jq -r '.triples')

# Validate
curl -s localhost:3030/validate -X POST \
  -H "Content-Type: application/json" \
  -d "{
    \"shapes\": \"$(cat ontology.shapes.ttl)\",
    \"data\": \"$DATA\"
  }"

The response tells you exactly what’s wrong:

{
  "conforms": false,
  "violations": 3,
  "warnings": 0,
  "issues": [
    {
      "severity": "Violation",
      "focus_node": "http://aegis.gastown.local/ontology/orphan-svc",
      "path": "http://aegis.gastown.local/ontology/runsOn",
      "component": "MinCountConstraintComponent",
      "message": "Less than 1 values for ont:runsOn"
    }
  ]
}

Step 3: Find Orphan Nodes

Entities with no incoming or outgoing relationships are usually noise:

PREFIX rdfs: <http://www.w3.org/2000/01/rdf-schema#>

SELECT ?entity ?label
WHERE {
  ?entity rdfs:label ?label .
  FILTER NOT EXISTS { ?entity ?anyPred ?anyObj . FILTER(?anyPred != rdfs:label && ?anyPred != <http://www.w3.org/1999/02/22-rdf-syntax-ns#type>) }
  FILTER NOT EXISTS { ?other ?rel ?entity }
}

Step 4: Find Stale Edges

Edges to entities that no longer exist (were retracted):

PREFIX ont: <http://aegis.gastown.local/ontology/>

SELECT ?source ?rel ?target
WHERE {
  ?source ?rel ?target .
  FILTER(isIRI(?target))
  FILTER NOT EXISTS { ?target a ?type }
  FILTER(?rel != <http://www.w3.org/1999/02/22-rdf-syntax-ns#type>)
}

This finds triples where the object is an IRI but has no type — likely a reference to a retracted or never-created entity.

Step 5: Progressive Schema Tightening

Start with loose shapes and tighten as your ontology stabilizes:

Phase 1: Required types and labels

ont:BasicShape a sh:NodeShape ;
    sh:targetSubjectsOf <http://www.w3.org/1999/02/22-rdf-syntax-ns#type> ;
    sh:property [
        sh:path rdfs:label ;
        sh:minCount 1 ;
    ] .

Phase 2: Add datatype constraints

ont:HostShape a sh:NodeShape ;
    sh:targetClass ont:Host ;
    sh:property [
        sh:path ont:cpuCores ;
        sh:datatype xsd:integer ;    # Was accepting any literal
        sh:minCount 1 ;
    ] .

Phase 3: Add referential integrity

ont:ServiceShape a sh:NodeShape ;
    sh:targetClass ont:Service ;
    sh:property [
        sh:path ont:runsOn ;
        sh:class ont:Host ;          # Must reference a Host entity
        sh:minCount 1 ;
    ] .

Phase 4: Add logical constraints

ont:ServiceShape
    sh:property [
        sh:path ont:dependsOn ;
        sh:not [
            sh:equals ont:runsOn ;    # Can't depend on your own host
        ] ;
    ] .

Step 6: Automated Gardening

Set up an agent to periodically validate and report:

{
  "tool": "quipu_validate",
  "input": {
    "shapes": "@prefix sh: ... your shapes ...",
    "data": "@prefix ont: ... current data ..."
  }
}

The structured feedback is machine-readable — an agent can:

1. Parse violations
2. Attempt automated fixes (e.g., add missing labels from entity names)
3. File issues for violations it can’t fix
4. Report on graph health trends over time

Step 7: Manage Multiple Shape Sets

Different domains can have different shapes:

# Infrastructure shapes
quipu shapes load --name infra --file infra.shapes.ttl --db knowledge.db

# Code entity shapes
quipu shapes load --name code --file code.shapes.ttl --db knowledge.db

# List all loaded shapes
quipu shapes list --db knowledge.db

# Remove outdated shapes
quipu shapes remove --name old-shapes --db knowledge.db

All loaded shapes are combined during validation — a write must satisfy all applicable shapes.

Gardening Queries Cheat Sheet

Step 8: Derived Relationships as Garden Health

The reasoner doesn’t just derive facts for operators — it’s a gardening tool. Materialised transitive closures reveal structural properties of your graph that are hard to see from raw facts alone.

Completeness Checks via Derived Facts

Define a rule that derives “this service is reachable from at least one host” by closing the runsOn chain:

@prefix rule: <http://quipu.local/rule#> .
@prefix ex:   <http://aegis.gastown.local/rules/> .

ex:garden a rule:RuleSet ;
    rule:defaultPrefix "http://aegis.gastown.local/ontology/" .

ex:runs_on_transitive a rule:Rule ;
    rule:id "runs_on_transitive" ;
    rule:head "runsOn(?svc, ?host)" ;
    rule:body "runsOn(?svc, ?mid), runsOn(?mid, ?host)" .

After running the reasoner, query for services that don’t transitively reach any host:

PREFIX ont: <http://aegis.gastown.local/ontology/>
PREFIX rdfs: <http://www.w3.org/2000/01/rdf-schema#>

SELECT ?svc ?label
WHERE {
  ?svc a ont:Service .
  ?svc rdfs:label ?label .
  FILTER NOT EXISTS {
    ?svc ont:runsOn ?host .
    ?host a ont:Host .
  }
}

These are services with incomplete runsOn chains — either they reference a container that doesn’t exist, or the chain breaks somewhere. This is a data quality signal: the garden needs tending.

Reactive Gardening

With reactive evaluation enabled, derived facts update as agents write new data. You can run validation checks after the reasoner fires to catch problems immediately:

1. Agent writes a new service with runsOn pointing to a container
2. Reactive reasoner fires, tries to derive the transitive runsOn to a host
3. If the container doesn’t have its own runsOn edge, no transitive fact is derived
4. Your gardening query finds the gap

This turns the reasoner into an early warning system: gaps in the transitive closure signal incomplete data at the source.

Monitoring Derived Fact Counts

Track the health of your derived facts over time. After each reasoner run, the EvalReport tells you how many facts were asserted and retracted. A sudden spike in retractions might mean an agent is writing bad data that broke a dependency chain. A plateau in assertions might mean your rules have converged and the ontology is stable.

quipu reason --rules garden-rules.ttl --db knowledge.db
# reasoner: 3 rules across 2 strata — asserted 0, retracted 0
# ^ All derived facts are up to date — the garden is healthy

What’s Next

• The Rule Builder — write custom rules step by step
• SHACL Validation — constraint reference
• SPARQL from Zero — query patterns
• Knowledge Ingestion Recipe — bulk loading

The Rule Builder

“I don’t want to write the same SPARQL property path in every query. I want the graph to know that traefik transitively runs on koror.”

You have a knowledge graph full of infrastructure facts. You’ve been writing SPARQL queries with dependsOn+ and runsOn+ property paths to chase transitive chains, and it works — but every query re-derives the same relationships from scratch. You want the graph to materialise those relationships once, keep them current, and let you query them directly.

This tutorial walks you through writing Datalog rules, running the reasoner, enabling reactive evaluation, and asking counterfactual “what if?” questions.

Prerequisites

You need a Quipu store with some infrastructure data. If you followed The Homelab Operator, you already have one. If not, create a quick test store:

quipu knot - --db lab.db <<'EOF'
@prefix hw: <http://example.org/homelab/> .
@prefix rdfs: <http://www.w3.org/2000/01/rdf-schema#> .

hw:koror a hw:Host ;
    rdfs:label "koror" .

hw:webproxy a hw:Container ;
    rdfs:label "webproxy" ;
    hw:runsOn hw:koror .

hw:traefik a hw:WebApp ;
    rdfs:label "traefik" ;
    hw:runsOn hw:webproxy ;
    hw:dependsOn hw:pihole .

hw:pihole a hw:Service ;
    rdfs:label "pihole" ;
    hw:runsOn hw:koror .

hw:grafana a hw:WebApp ;
    rdfs:label "grafana" ;
    hw:runsOn hw:webproxy ;
    hw:dependsOn hw:prometheus .

hw:prometheus a hw:Service ;
    rdfs:label "prometheus" ;
    hw:runsOn hw:koror ;
    hw:dependsOn hw:postgres .

hw:postgres a hw:Database ;
    rdfs:label "postgres" ;
    hw:runsOn hw:koror .
EOF

Step 1: Your First Rule — Transitive runsOn

Traefik runs on webproxy, and webproxy runs on koror. You want to materialise the fact that traefik runs on koror without writing a property path query every time.

Create my-rules.ttl:

@prefix rule: <http://quipu.local/rule#> .
@prefix ex:   <http://example.org/rules/> .

ex:homelab a rule:RuleSet ;
    rule:defaultPrefix "http://example.org/homelab/" .

ex:runs_on_transitive a rule:Rule ;
    rule:id "runs_on_transitive" ;
    rule:head "runsOn(?svc, ?host)" ;
    rule:body "runsOn(?svc, ?mid), runsOn(?mid, ?host)" .

Let’s unpack this:

• rule:RuleSet with rule:defaultPrefix tells the parser that bare names like runsOn expand to http://example.org/homelab/runsOn.
• rule:id is the provenance tag — every derived fact will carry source = "reasoner:runs_on_transitive" so you know where it came from.
• rule:head is what gets derived: runsOn(?svc, ?host).
• rule:body is the condition: if ?svc runs on ?mid, and ?mid runs on ?host, then ?svc runs on ?host.

The shared variable ?mid is the join key — it’s the container in the middle of the chain.

Step 2: Run the Reasoner

quipu reason --rules my-rules.ttl --db lab.db

Output:

reasoner: 1 rules across 1 strata — asserted 3, retracted 0

per-rule contributions:
  runs_on_transitive    3

Three new facts were derived. The reasoner found that traefik, grafana, and prometheus all transitively run on koror (via webproxy or directly).

Query the derived facts:

quipu read "PREFIX hw: <http://example.org/homelab/>
PREFIX rdfs: <http://www.w3.org/2000/01/rdf-schema#>
SELECT ?svc ?host WHERE {
  ?svc hw:runsOn ?host .
  ?host a hw:Host .
  ?svc rdfs:label ?label .
}" --db lab.db

The transitive runsOn edges are now first-class facts — no property paths needed. Every SPARQL query, every API call, and every agent context lookup benefits.

Step 3: Add a Join Rule — Cross-Predicate Derivation

A single-predicate transitive closure is useful, but the real power is joining across predicates. Add a second rule that derives “this service is affected by this host going down”:

ex:affected_by_host a rule:Rule ;
    rule:id "affected_by_host" ;
    rule:head "affectedByHost(?svc, ?host)" ;
    rule:body "runsOn(?svc, ?container), runsOn(?container, ?host)" .

Wait — that’s the same rule as runs_on_transitive. Let’s do something more interesting. Suppose you also track package dependencies:

quipu knot - --db lab.db <<'EOF'
@prefix hw: <http://example.org/homelab/> .

hw:nginx_pkg a hw:Package ;
    hw:installedIn hw:webproxy .

hw:traefik hw:usesPackage hw:nginx_pkg .
EOF

Now add a rule that derives “service S is affected by package P”:

ex:affected_by_package a rule:Rule ;
    rule:id "affected_by_package" ;
    rule:head "affectedByPackage(?svc, ?pkg)" ;
    rule:body "usesPackage(?svc, ?pkg), installedIn(?pkg, ?container)" .

This joins across usesPackage and installedIn via the shared variable ?pkg. The head projects the service and package, dropping the container (which was only needed for the join condition).

Add both rules to my-rules.ttl and run again:

quipu reason --rules my-rules.ttl --db lab.db

Step 4: Transitive Dependencies

The most common pattern is transitive closure over dependsOn. Add:

ex:depends_on_transitive a rule:Rule ;
    rule:id "depends_on_transitive" ;
    rule:head "dependsOn(?a, ?c)" ;
    rule:body "dependsOn(?a, ?b), dependsOn(?b, ?c)" .

This rule is positively recursive — it reads and writes the same predicate (dependsOn). The reasoner handles this correctly: it keeps applying the rule until no new facts are derived (fixpoint), using semi-naive evaluation to avoid redundant work.

After running the reasoner, you can find the full transitive blast radius of any service with a simple flat query:

quipu read "PREFIX hw: <http://example.org/homelab/>
PREFIX rdfs: <http://www.w3.org/2000/01/rdf-schema#>
SELECT ?affected ?label WHERE {
  ?affected hw:dependsOn <http://example.org/homelab/postgres> .
  ?affected rdfs:label ?label .
}" --db lab.db

No property paths, no dependsOn+ — the transitive closure is already in the store.

Step 5: Understanding Stratification

Let’s look at what happens when you have multiple rules that depend on each other. Your complete ruleset now has:

1. depends_on_transitive — reads and writes dependsOn
2. runs_on_transitive — reads and writes runsOn
3. affected_by_package — reads usesPackage and installedIn, writes affectedByPackage

The reasoner stratifies these automatically:

• Stratum 0: Base facts (usesPackage, installedIn) — no rules produce these, so they’re treated as ground truth.
• Stratum 1: All three rules. Rules 1 and 2 are self-recursive (they read their own output), but there are no cross-rule dependencies, so the stratifier groups them together.

The important principle: positive recursion is fine within a stratum. The evaluator runs all rules in a stratum to fixpoint together. What isn’t allowed is negation within a cycle — but since none of these rules use negation, stratification is straightforward.

If you had a rule like:

# NOT YET SUPPORTED at eval time, but parsed and stratified
ex:orphan a rule:Rule ;
    rule:id "orphan" ;
    rule:head "orphan(?svc)" ;
    rule:body "service(?svc), not dependsOn(?other, ?svc)" .

The stratifier would place orphan in a higher stratum than depends_on_transitive, because it needs the complete dependsOn relation (including derived transitive edges) before it can evaluate the negation. This is stratification at work — it ensures negation only reads “finished” relations.

Step 6: Go Reactive

Running quipu reason manually is fine for batch processing, but in a live system you want derived facts to update automatically when base facts change.

Enable reactive evaluation:

quipu reason --reactive --rules my-rules.ttl --db lab.db

Now the reasoner registers as an observer on the store. Any subsequent transact() call — whether from the CLI, the REST API, an episode ingestion, or an MCP tool — triggers automatic re-derivation of affected rules.

Add a new dependency:

quipu knot - --db lab.db <<'EOF'
@prefix hw: <http://example.org/homelab/> .
hw:grafana hw:dependsOn hw:traefik .
EOF

The reactive reasoner:

1. Sees that dependsOn changed
2. Finds depends_on_transitive uses dependsOn in its body
3. Re-evaluates that rule
4. Derives new transitive edges (grafana now transitively depends on pihole, via traefik)

All of this happens in the same transaction boundary — by the time the knot command returns, the derived facts are already updated.

How the Reactive Reasoner Avoids Loops

When the reactive reasoner writes derived facts, those writes are also transactions. To prevent infinite recursion, the observer checks the source field of every incoming transaction. If it starts with "reasoner:", the observer skips it. This is simple, correct, and zero-cost.

Step 7: Ask “What If?” with Speculate

The most powerful feature of the reasoner is counterfactual reasoning. Instead of actually removing a host from your graph, you can ask “what would happen if I removed it?” and get a precise answer.

From the Rust API:

#![allow(unused)]
fn main() {
use quipu::reasoner::{evaluate, parse_rules};
use quipu::store::Store;
use quipu::types::{Datum, Op, Value};

let mut store = Store::open("lab.db")?;
let ruleset = parse_rules(&std::fs::read_to_string("my-rules.ttl")?, None)?;

// Hypothetical: retract all runsOn edges to koror
let koror_id = store.lookup("http://example.org/homelab/koror")?.unwrap();
let runs_on_id = store.lookup("http://example.org/homelab/runsOn")?.unwrap();

let retractions: Vec<Datum> = store
    .current_facts()?
    .iter()
    .filter(|f| f.attribute == runs_on_id && f.value == Value::Ref(koror_id))
    .map(|f| Datum {
        entity: f.entity,
        attribute: f.attribute,
        value: f.value.clone(),
        valid_from: "2026-04-04T00:00:00Z".into(),
        valid_to: None,
        op: Op::Retract,
    })
    .collect();

// Ask "what if?"
let report = store.speculate(&retractions, "2026-04-04T00:00:00Z", |s| {
    evaluate(s, &ruleset, "2026-04-04T00:00:00Z")
})?;

println!("If koror went down: {} facts retracted", report.retracted);
}

The store is unchanged after speculate() returns. The hypothetical facts were applied inside a SQLite savepoint and rolled back. You get the evaluation report without any side effects.

This is ideal for:

• Pre-change impact assessment: “What breaks if I decommission this host?”
• Capacity planning: “What if I move these containers to a new host?”
• Incident simulation: “What’s the blast radius of this failure?”

Step 8: Debugging Rules

Common Errors and Fixes

“head variable ?z is not bound in the body”

Every variable in the head must appear in at least one positive body atom. If your head mentions ?z, make sure ?z appears in a body atom (not just under negation).

# Bad: ?host not in body
rule:head "runsOn(?svc, ?host)" ;
rule:body "service(?svc)" .

# Good: ?host bound by second body atom
rule:head "runsOn(?svc, ?host)" ;
rule:body "service(?svc), assignedTo(?svc, ?host)" .

Historical errors you will no longer see (lifted 2026-08-27, quipu-923): "two-atom body must share exactly one variable" and "body with more than 2 atoms". Bodies of any length now compile to a join pipeline — p(?a, ?b), q(?b, ?c), r(?c, ?d) works directly, atoms may share zero, one, or both variables, and not q(?x, ?y) applies stratified negation. Decomposing a long body into intermediate predicates (the old workaround) still works and remains useful when an intermediate relation is worth naming or reusing.

“rule set is not stratifiable: negation cycle through […]”

Your rules have a cycle through negation. Rule A negates something rule B produces, and rule B negates something rule A produces. The fix is to restructure so negation only flows in one direction (from higher strata to lower ones).

Inspecting Derived Facts

Derived facts live in the companion inferred graph (quipu-0b6), so select it — or compose it with the base — explicitly:

quipu read "SELECT ?e ?a ?v FROM <urn:quipu:graph:root#inferred> WHERE { ?e ?a ?v }" \
  --db lab.db

To re-run the reasoner and see what changed:

quipu reason --rules my-rules.ttl --db lab.db

If the report shows asserted 0, retracted 0, the derived facts are already up to date — nothing changed since the last run.

Your Complete Ruleset

Here’s the full my-rules.ttl from this tutorial:

@prefix rule: <http://quipu.local/rule#> .
@prefix ex:   <http://example.org/rules/> .

ex:homelab a rule:RuleSet ;
    rule:defaultPrefix "http://example.org/homelab/" .

# Transitive dependency closure
ex:depends_on_transitive a rule:Rule ;
    rule:id "depends_on_transitive" ;
    rule:head "dependsOn(?a, ?c)" ;
    rule:body "dependsOn(?a, ?b), dependsOn(?b, ?c)" .

# Transitive runsOn closure
ex:runs_on_transitive a rule:Rule ;
    rule:id "runs_on_transitive" ;
    rule:head "runsOn(?svc, ?host)" ;
    rule:body "runsOn(?svc, ?mid), runsOn(?mid, ?host)" .

# Package impact: which services are affected by a package?
ex:affected_by_package a rule:Rule ;
    rule:id "affected_by_package" ;
    rule:head "affectedByPackage(?svc, ?pkg)" ;
    rule:body "usesPackage(?svc, ?pkg), installedIn(?pkg, ?container)" .

What’s Next

• The Reasoner — how it works under the hood
• Reasoner Reference — complete rule syntax and API
• Impact Analysis — more patterns for blast radius queries
• The Homelab Operator — model your infrastructure from scratch

CLI Commands

The quipu binary provides a command-line interface for all operations.

Global Flags

Build identity

quipu --version (also -V or version) reports two lines without loading configuration or opening a database:

quipu <version>
git_sha: <build-commit>

The first line retains the version-only format for existing parsers. The second line identifies the source commit, or unknown when built without Git metadata. Compare known build commits to detect differences between releases; equal version strings alone do not establish that two binaries contain the same code.

Commands

quipu knot <file.ttl>

Load RDF facts from a Turtle file.

quipu knot data.ttl --db my.db
quipu knot data.ttl --shapes schema.ttl --db my.db  # With SHACL validation
quipu knot data.ttl --timestamp 2026-03-15T00:00:00Z --db my.db  # Source-true valid-time

Alias: load

quipu read "<sparql>"

Execute a SPARQL query.

quipu read "SELECT ?s ?p ?o WHERE { ?s ?p ?o } LIMIT 10" --db my.db
quipu read "SELECT ?s WHERE { ?s a <http://ex.org/Person> }" --valid-at "2026-03-01"

Alias: query

quipu cord

List entities, optionally filtered by type.

quipu cord --db my.db
quipu cord --type "http://example.org/Person" --limit 50 --db my.db

quipu unravel

Time-travel query: view facts at a past point.

quipu unravel --tx 5 --db my.db
quipu unravel --valid-at "2026-03-15T00:00:00Z" --db my.db

Requires at least one of --tx or --valid-at.

quipu episode <file.json>

Ingest a structured episode from a JSON file.

quipu episode deploy.json --db my.db
echo '{"name": "test", "nodes": []}' | quipu episode - --db my.db  # stdin
quipu episode deploy.json --base-ns "https://quarterdeck.internal/ontology#" --db my.db
quipu episode deploy.json --timestamp 2026-03-15T00:00:00Z --db my.db

quipu retract <entity-IRI>

Retract facts for an entity.

quipu retract "http://example.org/old-service" --db my.db
quipu retract "http://example.org/alice" --predicate "http://example.org/email" --db my.db

quipu shapes

Manage persistent SHACL shapes.

quipu shapes load person-shape schema/person.ttl --db my.db
quipu shapes list --db my.db
quipu shapes remove person-shape --db my.db

Loaded shapes automatically validate all future writes.

quipu validate

Dry-run SHACL validation without writing.

quipu validate --shapes schema.ttl --data test-data.ttl

quipu export

Export deterministic RDF from ROOT or one explicit scope.

quipu export --db my.db                        # N-Triples (default)
quipu export --format turtle --db my.db        # Turtle
quipu export --group-id project-a --db my.db   # provenance group
quipu export --construct 'CONSTRUCT { ?s ?p ?o } WHERE { ?s ?p ?o }' --db my.db

The three scope flags are mutually exclusive. Omit all three for ROOT.

quipu share

Write a deterministic directory intended for git storage and interchange. First load an identifier-policy catalogue and your data’s shapes into the same store. The examples below assume that setup. Outward shares refuse with exit 2 when no block-tier catalogue is available, exit 1 when a rule matches, and exit 0 when the checked payload is clean.

quipu share --output knowledge-share --db my.db
quipu share --output project-share --group-id project-a --shapes project-shapes --turtle
quipu share --output next-share --parent-share sha256:abc123 --db my.db

The three scope flags are mutually exclusive and default to ROOT. By default, the share includes every loaded shape set. An explicit --shapes selection narrows that set. If no shapes are loaded, the command refuses to produce a silent empty bundle unless --no-shapes is supplied. Required payloads are export.nt, shapes.ttl, and manifest.json. The graph payload is sorted and duplicate-free; the manifest hashes the exact payload bytes and uses the anchored transaction timestamp, so unchanged state produces byte-identical output.

quipu status and quipu merge

Compare an incoming share with local ROOT using the snapshot named by its parent_share, then reconnect the two histories with an RDF-aware three-way merge:

quipu status shares/alice-next --db my.db
quipu merge shares/alice-next --actor reviewer --db my.db

The base snapshot must exist exactly once beneath the incoming share’s parent directory. Missing or ambiguous lineage is refused. status reports additions, removals, divergence, and the same structured DecisionRecord conflicts that merge would encounter.

Unconstrained multi-valued predicates use set union. A predicate governed by sh:maxCount becomes a conflict when the merged cardinality exceeds its bound; a delete racing a replacement on sh:maxCount 1 is also a conflict. Conflicted slots are held at their base values and merge exits 2 without writing ROOT. A clean merge applies assertions and retractions atomically, with both the local graph hash and incoming share_id recorded as provenance parents.

quipu stats

Show store statistics.

quipu stats --db my.db

Output: fact count, entity count, predicate count.

quipu reason

Run the Datalog reasoner to derive facts from rules.

quipu reason --db my.db
quipu reason --rules custom-rules.ttl --db my.db
# --reactive needs a non-default feature (see below):
quipu reason --reactive --db my.db   # requires: cargo build --features reactive-reasoner

Output shows asserted/retracted counts per rule. Derived facts are written with source = "reasoner:<rule-id>" provenance.

See Reasoner Reference for full details on rule syntax and the evaluation model.

quipu impact <entity-IRI>

Bounded BFS over entity edges: what is downstream of this entity? With --remove, speculatively retracts the entity (SQLite savepoint, no mutation), re-runs the reasoner inside the fork, and walks the result — “what would break if I removed this?”.

quipu impact http://example.org/traefik --hops 3 --db my.db
quipu impact http://example.org/traefik --remove --db my.db

quipu project

Run graph algorithms over the projected knowledge graph: stats, in_degree, pagerank/ppr, components, louvain, shortest_path.

quipu project --algorithm pagerank --limit 10 --db my.db
quipu project --algorithm pagerank --seed http://example.org/alice --db my.db  # PPR
quipu project --algorithm shortest_path --from <IRI> --to <IRI> --db my.db

quipu report

Graph health report: hub entities (god-nodes), surprising connections, and suggested competency questions.

quipu report --hubs 10 --surprises 5 --db my.db

quipu repl

Interactive SPARQL prompt.

quipu repl --db my.db

Type SPARQL queries at the prompt. Use :quit or :q to exit.

quipu audit <trace.jsonl>

Check an enforcement trace against the constraint specification in the store — SARC’s T ⊨ Σ.

quipu audit ~/.local/state/hank/metrics.jsonl --db my.db
quipu audit trace.jsonl --json --db my.db

Exit code 1 when the trace contradicts the spec, 0 otherwise — so a CI job can gate on it without parsing anything.

Four passes run over every record: coverage (is every constraint the trace cites actually in Σ, and does every refusal name one), placement (was each constraint evaluated at a point its class can be enforced at, does the record agree with Σ about its class, and does the layer that actually evaluated it match the aegis:hostedAtLayer the policy claims — SARC I6), outcome (does the response taken match the one declared, at the recorded mode), and attribution (does the record say who is answerable). Every pass is a comparison between two declared values; none of them calls a model.

The I6 check is one-directional. A policy claiming "tool" while a hook in the agent’s own loop evaluated it is a violation — it reads as enforced somewhere an agent cannot route around while being enforced somewhere an agent can. A policy claiming "orchestration" while something stronger enforced it is silent: understating your own robustness misleads nobody in a direction that costs them.

Findings come in two severities and only one of them fails the gate:

• violation — the trace contradicts Σ. A soft constraint that blocked, a declared deny that only warned under enforce, a record whose declared principal chain disagrees with the process that ran.
• incompleteness — the trace does not say enough to decide. No principal chain, no declared class, a constraint Σ declares that this window never exercised.

Incompleteness never changes the exit code. A checker that failed the build over a missing planner would be switched off within a week, and then the violations would stop being caught too.

Two limits worth stating before reading a T ⊨ Σ result as reassurance. Coverage is checked in the direction quipu can decide — nothing is cited that Σ does not define — because the other direction, was every constraint that applied evaluated, means re-running the selector against the file as it stood, and quipu has neither the file nor the parser. And the report counts lines it could not read rather than skipping them, so N line(s) unreadable is always part of the summary: conformance over a window that was only partly read is not conformance.

quipu audit inventory

Check the dispatch graph rather than a trace — SARC I7, enforcement completeness.

quipu audit inventory --db my.db
quipu knot shapes/dispatch-inventory.ttl --db my.db   # load the shipped seed first

I7 is a property of the dispatch graph, not of any one constraint: a harness exposes N classes of tool call, and completeness is the question of whether every class that can change state passes through a point where a constraint could stop it. aegis:ToolClass declares each class, whether it is executable, and which governedAt points it traverses.

Findings, in the same two severities:

• violation — an executable class that traverses no enforcement point and has no aegis:ungovernedReason. An unknown hole.
• incompleteness — an executable class that traverses nothing but says why: an acknowledged bypass surface. Reported on every run, because a bypass surface an operator has stopped seeing is one they have stopped weighing. Also: a class that does not declare aegis:executable, since whether it needs a point is then undecidable.
• violation, the other direction — a constraint in Σ placed at a point no declared executable class traverses. It reads as governance in the catalog and can never fire in the deployment.
• incompleteness, the zero-trust boundary — a class declaring aegis:importsUntrustedState brings content into the agent’s context that has not been through this deployment’s constraints (a sub-agent’s response, an MCP server’s output, retrieved documents). Reported whether or not the class is governed: governedAt says its own actions traverse a point and says nothing about what it returned. No trust predicate evaluates imported content today, so this is an open boundary reported on every run rather than a closed gap. A class that imports and declares no aegis:untrustedOrigin is a violation — an import channel nobody can describe is one nobody can weigh.

An empty inventory is reported as an incompleteness, never as a pass: an unwritten dispatch graph is not an empty one.

shapes/dispatch-inventory.ttl ships the seed for this stack — the edit path and quipu’s own write gate as governed, reads as non-executable, and Bash, Task, CI pipelines, cron, remote shells, a sibling session’s VCS index and a hostile agent as acknowledged surfaces with where each is enforced instead. Nothing derives it from the harness’s actual tool registry, so it can drift from reality the way a prose list does; the difference is that a drifted declaration is a wrong answer to a question something asks rather than a paragraph nobody re-reads.

quipu audit namespace

List the base-namespace predicates episode ingest minted that no loaded shape mentions — namespace drift, in the same shape as quipu audit inventory.

quipu audit namespace --db my.db
quipu audit namespace --graph urn:example:tenant --json --db my.db

Exits 0 whatever it finds, and refuses nothing. Every key in an episode node’s properties map becomes a predicate in the base namespace via sanitize_iri_local, with no shape governing which keys are admissible, so agents writing free-form properties mint predicates indefinitely and nothing reported the drift. A gate here would reject writes every deployment is already making — the ontology in the store today was grown by exactly this path — so it would be switched off within a day and the drift would go back to being invisible. A report an operator reads beats a gate nobody leaves on.

Per ungoverned predicate: the IRI, how many current facts use it, how many distinct episode-written subjects carry it, and the window it has been in use.

namespace: 2 ungoverned predicate(s), 1 governed, minted by episode ingest over
2 episode-written subject(s) in urn:quipu:graph:root against 1 loaded shape(s)

UNGOVERNED http://aegis.gastown.local/ontology/rackUnit: 1 fact(s) on 1 subject(s),
in use 2026-01-01T00:00:00Z .. 2026-01-01T00:00:00Z

What counts as minted here. A predicate is reported when its subject carries prov:wasGeneratedBy pointing at a {base}episode_… activity, the predicate is in the configured base namespace, and the object is a literal. That last condition is what separates the properties map from the edge path: edge relations resolve to node references and already pass through resolve_edge_predicate, which is a fence. The two predicates episode ingest emits structurally — aegis:groupId and aegis:contentHash — are excluded by name, because the writer’s own vocabulary reported as agent drift would put a permanent floor under every report.

What “no shape mentions it” means. A predicate is treated as governed if its IRI appears anywhere in any loaded shape’s graph — as an sh:path, a target, or any other position. That is the widest reading of “mentions”, chosen deliberately: this is a report an operator acts on, and a false alarm costs more here than a missed one.

What the seen window honestly is. first_seen / last_seen are the earliest and latest valid_from among the facts using the predicate. The store keeps no separate mint timestamp, so this answers “since when has this predicate been in use”, not “when was this IRI first interned” — and a fact re-asserted with an older valid time genuinely moves first_seen backwards.

Scans the ROOT graph by default; --graph <iri> scans one named graph instead. A graph IRI that names no graph is an error, not an empty result — “no drift in the graph you named” and “there is no such graph” are different answers and only one should let an operator stop looking.

quipu audit replay <trace.jsonl>

Re-check a recorded window against the current Σ and report what promoting each rule from advise to enforce would do.

quipu audit replay ~/.local/state/hank/metrics.jsonl --db my.db
quipu audit replay trace.jsonl --json --db my.db

Exits 0 whatever it finds. Replay reports readiness, and readiness is a judgement an operator makes: failing a build because a rule has not yet fired would turn “we have not measured this” into “this is broken”, which are different states needing different responses.

Per rule, five gates — each a reason not to promote:

Nothing is re-evaluated. The predicate needed the file as it stood and that file is gone, so this is deterministic arithmetic over records rather than a simulation.

Three limits, printed with every summary rather than kept in a footnote. It measures only traffic that happened, so a rule that would block a kind of edit nobody attempted shows zero new blocks and is not therefore safe. It counts false-positive candidates and never false positives — a block is wrong only if the action was legitimate, and no record carries that judgement. And it bounds no false negatives at all: actions a rule let through without firing look exactly like actions it correctly approved.

quipu audit tree <trace.jsonl>

Reassemble the dispatch forest from the principal chains a trace carries.

quipu audit tree trace.jsonl
quipu audit tree trace.jsonl --json

Needs no store — the tree is a property of the trace alone — and exits 0 always. A shape is not a verdict; the findings that are verdicts (a laundered chain, a partial attribution tuple) belong to quipu audit <trace>.

SARC §9.5’s attribution dilution is what this addresses: an orchestrator dispatches, a worker acts, and a flat record cannot say which link was answerable. The trace this stack emits is a sequence, so the tree here is reconstructed rather than structural, and the output says so in three places:

• Unattributed records are not placed. A record with no chain is counted and left out. Attaching it to whichever root happened to be first would invent an answer to the question the tree exists to answer.
• Implied dispatch nodes are flagged. A chain [orchestrator, worker] proves an orchestrator exists; it does not prove the orchestrator’s own actions are in this window. “This agent did nothing” and “this agent’s actions were not recorded” are different facts and only one is good news.
• Collapsed nodes get a note. Two separate dispatches of the same worker by the same caller produce the same chain and land on one node. Not an error — one agent legitimately does many things — but the reader must not be told the tree is unambiguous when it is not.

quipu audit inheritance <trace.jsonl>

Check whether a constraint declared aegis:inheritedByDelegates stopped applying under delegation — SARC §9.5’s constraint laundering.

quipu audit inheritance trace.jsonl --db my.db

Exits 1 on a violation, like quipu audit <trace>.

An orchestrator is bound by a constraint, dispatches a sub-agent, and the constraint is not re-applied at the deeper layer. Nobody decided to drop it; it simply was not carried, and the record looks exactly like a constraint that legitimately did not apply.

Two findings at deliberately different severities, because one has evidence and the other has a question:

• Violation. Constraint C decided on target T under chain [orchestrator], and a deeper action on the same target under [orchestrator, worker] did not evaluate it. C proved it could decide for T, so its absence deeper is a drop.
• Incompleteness. C was evaluated at a dispatch node and never anywhere in its subtree. That might be laundering and might be a selector that legitimately matched nothing deeper; deciding needs the files as they stood, which quipu does not have.

Reporting both as violations would make the strong one unfindable.

aegis:onUndecidable admits only "escalate" — the same shape as aegis:onTimeout admitting only "deny". That is the decidability rescue: evaluate at the deepest layer where the constraint still decides, or hand it to a human. A constraint that silently stops applying where it cannot be checked is one an agent escapes by dispatching into a context where the evidence is absent.

A Σ where no constraint declares inheritedByDelegates reports an incompleteness, never a clean pass: “nothing is inherited” and “nothing has said whether anything is inherited” are different states.

quipu propose

Schema-change proposal queue: submit a shapes/ontology change for review rather than applying it directly.

quipu propose list --status pending --db my.db
quipu propose submit shape ex:PersonShape new-shape.ttl --proposer agent-1 --rationale "tighten cardinality"
quipu propose accept 3 --note "LGTM" --db my.db
quipu propose reject 4 --note "breaks existing data" --db my.db

quipu policy

Policy by example: draft a placement-aimed advisory policy from an exemplar, then replay it over recorded history before anything is created. The ordering is the point — draft, backtest, read the hit list, and only then quipu knot the file, at which point the definition-time placement check still runs and can still refuse.

quipu policy draft --exemplar http://example.org/verdict/17 --name no-bare-secrets \
  --label "never commit a bare secret again" \
  --targets http://example.org/CodeEdit \
  --claim 'ASK { FILTER NOT EXISTS { $target ex:containsSecret true } }' \
  --out draft.ttl
quipu policy backtest draft.ttl --last-txs 500 --db my.db
quipu knot draft.ttl --db my.db

draft flags:

A drafted policy is born advisory — aegis:effect "warn" is a constant, not a flag. Promotion to enforcement goes through the existing advisory→enforcing gates over recorded traffic.

backtest flags:

Output is one line per hit (tx <id> (<timestamp>): would have fired on <target>) followed by a summary. The summary distinguishes “0 hits” from “cannot evaluate”, and the command exits 1 when nothing could be measured so a script that knots on success cannot read an unevaluable candidate as clean.

quipu path

Golden-path analysis over recorded trajectories: the provenance cone, the backtest, and a grammar draft. All three are reads; draft prints Turtle for a human to review and load. See the golden paths design.

quipu path cone http://example.org/traj/42 --via http://example.org/derivedFrom --hops 6 --db my.db
quipu path backtest http://example.org/traj/42 --omit http://example.org/step/3 --json --db my.db
quipu path draft http://example.org/traj/42 --name fast-review --label "the short path" \
  --via http://example.org/derivedFrom \
  --omit http://example.org/step/3 --by http://example.org/decision/9 --db my.db

The trajectory IRI is the first positional argument to every subcommand.

cone verdicts are IN-CONE (load-bearing; pruning needs a human Decision), OUT-OF-CONE (mechanically prunable) or CANNOT-EVALUATE (no derivation edges recorded — never silently prunable). draft refuses when the count of --omit flags does not match the count of --by flags: a human cut without its Decision is a silent edit of history.

quipu ontology

Manage stored OWL ontologies (versioned: re-loading a name closes the prior version). Requires the owl feature.

quipu ontology load my-domain domain.ttl --db my.db
quipu ontology list --db my.db
quipu ontology remove my-domain --db my.db

quipu doctor labels

Diagnose graph-label state: which graphs carry freshness/trust/policy labels and which are undeclared.

quipu doctor labels --db my.db

quipu pack / quipu unpack

Knowledge packs: export one named graph as a self-describing, attachable .qpack.db artifact (facts, manifest, shapes, stored queries, optionally vectors), verify one, or import one into a local graph.

quipu pack urn:example:graph --out domain.qpack.db --name "domain" --version 1.0.0
quipu pack urn:example:graph --out domain.qpack.db --shapes s.ttl --queries q.json --with-vectors
quipu pack urn:example:graph --out domain.qpack.db --space 7
quipu pack --verify domain.qpack.db
quipu pack urn:example:repo --out repo.qpack.db --repo scbrown/example --repo-sha "$BASE_SHA" --model-id all-MiniLM-L6-v2 --model-version 1
quipu unpack repo.qpack.db --expect-repo scbrown/example --head-sha "$(git rev-parse HEAD)" --into urn:local:domain --db my.db

Repository packs should be attached to a GitHub release, not committed to the repository, once they exceed 10 MiB. A loader must download to a temporary path, run quipu pack --verify, and delete a failed download before opening the destination. quipu unpack repeats verification before every load. After a successful load, ingest repository changes over repository_sha..head_sha; future setup runs are incremental because the destination records the verified content hash and returns unchanged for the same asset.

quipu pack --full --format text

A lossless whole-store pack rendered as text. --full on its own is lossless but binary (a VACUUM INTO copy); quipu share is text but carries only current facts. This is the artifact that is both: git-friendly and reconstructing.

quipu pack --full --format text --destination internal --out store-pack/ --db my.db
quipu restore store-pack/ --db restored.db

It writes a directory, not a file:

store-pack/
  manifest.json     what the pack claims, including its content hash
  schema.sql        DDL for every object, applied before any row
  data/<table>.sql  canonical INSERTs, one file per table

Rows are emitted as one INSERT each, ordered by the row text itself. That ordering is what makes the format git-friendly: a row moving on disk produces no diff, so a pack committed to a repository only changes when its contents do.

restore accepts either form. For a text pack it rebuilds the store, checks referential integrity, and then refuses unless the reconstruction hashes identically to what the manifest claims — nothing is written to the destination until that holds. A dump missing a file, a table, or a single row is rejected rather than installed as a quietly smaller store.

A text pack does not carry derived data (vectors), because hex-encoded embeddings would make it gigabytes. It records the row count and the embedding recipe instead, and restore prints a REGENERATE: line so an incomplete store cannot be mistaken for a complete one. At pack time, omitted vector rows with a missing model name or SHA-256 digest make packing refuse with exit code 1 before writing the destination. To explicitly accept a backup without reproducible vectors, pass --allow-missing-embedding-recipe; this succeeds with a WARNING: on stderr and preserves the incomplete recipe honestly. Set [quipu.embedding] model_path to the original readable model file and repack to record its name, digest, and configured dimension. A recorded recipe identifies the configured model; it does not verify that this model produced the source vectors. An empty vector table needs no warning. Binary pack --full retains vectors and does not require a regeneration recipe.

Like --full, this refuses an outward destination: it carries the event log and every operational table, and publishing one is the operator’s decision.

quipu graph

The graph-registry commands: offline import, and the deep-freeze lifecycle (see Graph Kinds & Deep Freeze).

quipu graph import other.db --as urn:app:imported --db my.db
quipu graph freeze urn:app:runs/2026-07 --out /var/quipu/archive --db my.db
quipu graph thaw urn:app:runs/2026-07 --db my.db
quipu graph list --kind operational --db my.db
quipu graph list --frozen --db my.db

freeze exports the graph’s full history to a .qpack.db archive, verifies it by content hash, deletes the local rows and re-attaches the pack read-only; the graph stays queryable at the same IRI and refuses writes until thaw. list prints iri class kind lifecycle source per graph.

quipu import

Stage a git-native share directory without touching ROOT:

quipu import ./share --source https://example.org/alice --db my.db
quipu import promote sha256:0123... --actor reviewer --db my.db

The first command reads manifest.json, export.nt, and shapes.ttl, verifies their hashes, resolves exact local identities, surfaces fuzzy review candidates, and quarantines facts that fail local vocabulary or SHACL checks. The second is the separate, explicit ROOT-admission step and only accepts eligible staged shares. Both print the same JSON fields as the REST endpoints.

quipu fork

Persistent named forks (quipu-gp5): fork ROOT as of any transaction into an independent committed-class named graph (urn:quipu:fork:<name>), read it exactly like the main line, diff it, then drop it or promote it. Promotion re-enters through the SHACL + policy write gates — a refused promotion writes nothing and the fork stays open. Fork ergonomics are never a gate bypass.

quipu fork 42 --name experiment --db my.db     # fork ROOT as of tx 42
quipu fork list --db my.db
quipu read "SELECT ?s ?p ?o WHERE { ?s ?p ?o }" --fork experiment --db my.db
quipu fork diff main experiment --db my.db     # each side: a fork name, or 'main'
quipu fork promote experiment --db my.db       # delta re-enters via the gates
quipu fork drop experiment --db my.db          # terminal; the name is not reusable

Reads: --fork <name> on quipu read, or the fork field on POST /query / quipu_query. Unknown and dropped forks are refused loudly — never a silent fall-through to ROOT.

quipu db attach --list

List the databases mounted alongside this store — the [[quipu.attachments]] layers (see Configuration) and deep freeze’s archives, which no config declares.

quipu db attach --list --db my.db

Output is alias, path, and mount mode (always ro), tab-separated. A declared layer that could not be mounted refuses the open instead of appearing here, so everything listed is genuinely composed.

quipu db respace

Move a store into a fresh term space so it can be attached to another store without id collisions. Reads the source read-only; writes a new file.

quipu db respace --into 7 --out respace.db --db my.db

quipu events refusals

Count refused writes by gate (shacl | policy | authority | owl | placement) — the incident-rate denominator. Reads the write.refused events the write gates record; the raw events are served by GET /events?types=write.refused. See the REST API reference for what a refusal event records (metadata only, never the refused bodies) and the speculate exclusion.

quipu events refusals --db my.db

quipu graph import <db>

Import another quipu database’s ROOT graph as a named graph in this store.

quipu graph import other.db --as urn:import:other --db my.db

quipu migrate-vectors

Migrate stored embeddings between vector backends (requires the lancedb feature).

quipu migrate-vectors --from sqlite --to lancedb --dry-run --db my.db

CLI: sharing, import and legacy packs

Reference for the commands behind Sharing & Federation. Every flag here is checked against quipu --help by tests/cli_doc_drift.rs, so this page cannot quietly fall behind the binary.

A note on vocabulary: the share is the portable artifact. quipu share writes its standard text files directly; releases may carry the same files in a deterministic .qpack.tar.gz archive. The older pack and unpack commands remain for local SQLite compatibility, but a .qpack.db is not the published interchange format.

quipu share — produce a share

Prerequisite: load the identifier-policy catalogue and the shapes governing your data. The default destination is outward. An empty block-tier catalogue exits 2 (cannot verify); a matching identifier exits 1; a checked, clean share exits 0. --no-shapes does not bypass this check.

quipu share --output <dir> [--graph IRI|--group-id ID|--construct QUERY]
            [--shapes NAME]... [--no-shapes] [--parent-share ID]
            [--since <parent-reference>] [--turtle] [--destination internal]

Writes a deterministic, git-native share into <dir>: RDFC-1.0 canonical export.nt (the facts), shapes.ttl (the constraints they were validated against), and JSON plus PROV-O/DCAT/SPDX Turtle manifests.

The outward scrub, and --destination internal

Every share is checked against the store’s own aegis:InternalIdentifierPattern catalogue — the rules tiered block — and refused if the payload matches one. Nothing is rewritten: an internal hostname or an RFC1918 address is entity identity, and silently editing it would produce a share that says something the store never said.

That is the right default for a share bound for a public remote, and the wrong one for a share bound for an internal forge, where those identifiers are the point. --destination internal is the single explicit way to say so:

quipu share --output qpack/today --destination internal

It does three things, and the third is what makes the first two safe:

1. Skips the outward scrub entirely. Not a per-pattern exception, not an allowlist — the check does not run.
2. Stamps destination: "internal" into manifest.json, and quipu:destination "internal" into manifest.ttl. The exemption travels with the bytes instead of living in the shell history of whoever produced them.
3. Binds that stamp into share_id. Unlike attestation, the field is not stripped before the manifest is hashed. Deleting it to launder the payload onward leaves a manifest that no longer hashes to the id it carries, and every consumer’s verification refuses it.

There is no environment variable and no config setting. A share that says nothing is scrubbed, including every share produced over HTTP: POST /share cannot select a destination, because a caller who could would be turning the guard off on a server they do not own.

What the marker buys you downstream. quipu import of a stamped share runs the scrub the producer skipped. If the payload passes it imports normally — a share marked internal out of caution is not quarantined for it. If the payload fails, the import is refused unless the operator repeats the declaration with quipu import <dir> --destination internal. So internal facts cannot enter a store silently and then leave it in someone else’s outward share.

Deltas are scrubbed separately, and they have to be. delta.ru is not built from the store: its DELETE clause is lifted verbatim from the parent’s export.nt. An identifier retracted from the graph yesterday is still quoted in today’s delta — and the parent is usually the very internal share that was allowed to carry it. A full outward share of the same store passes cleanly while that delta does not, which is exactly why the delta document gets its own check rather than riding on the result share’s.

--since compares the current share with the referenced parent. Its default 8 MiB limit applies to the serialized delta file map (update, shapes and manifests), not to the full result graph. A large unchanged graph can therefore produce a small delta; a large insertion or deletion can still exceed the limit. The producer still materializes the full result internally, so this transport limit is not a memory bound. Use --parent-share to record an identity without computing a delta.

--parent-share is what makes quipu merge possible later. A share without a parent cannot be three-way merged — merge refuses with “incoming share has no parent_share; three-way merge has no base” — so record it at production time, when you know it, rather than trying to reconstruct it at reconnect time.

quipu import — receive a share, into quarantine

quipu import <share-dir|archive|URL> [--source <uri>] [--actor <id>]
            [--destination internal] [--db <path>]
quipu import delta <parent-share> <delta-share> [--actor <id>]

Verifies the manifest and payload hashes, then stages a local directory in its selected store. Archives and URLs are fetched under fixed size limits and materialized in a fresh in-memory store by default, so no downloaded artifact or database is left behind. With an explicit --db <path>, archives and URLs stage in that database using its loaded shapes and registered identities, just like a directory. Carried shapes are not automatically adopted: a receiver without a matching local vocabulary still quarantines the typed data. Import never touches ROOT without promotion. A hash mismatch is refused outright:

share graph hash mismatch: manifest=… actual=…

import delta verifies the full parent and the delta’s lineage, hashes and restricted DELETE DATA / INSERT DATA operations, materializes the declared result, then sends that result through the same verified in-memory import path.

quipu import promote — admit a staged share into ROOT

quipu import promote <share-id> [--actor <id>] [--db <path>]

The second, separate verb. Nothing reaches ROOT because a file arrived; it reaches ROOT because someone ran this. Keeping admission in its own command is the point rather than an inconvenience — see the primitive.

quipu status — has this share diverged?

quipu status <share-dir> [--db <path>]

Reports divergence between the local store and the share’s parent, as JSON. Read it before merge to see what a reconnect would have to decide.

quipu merge — three-way reconnect

quipu merge <share-dir> [--actor <id>] [--db <path>]

Locates the common base through parent_share, merges shape-aware (SHACL cardinalities decide what is a conflict), and on conflict keeps the base value and records a decision rather than guessing.

Exit 2 is a distinct code precisely so a script can tell “needs a decision” from “went wrong”.

quipu pack / quipu unpack — legacy SQLite compatibility

quipu pack <graph-iri> --out <file.qpack.db> [--name N] [--version V] [--space N]
           [--shapes S]... [--queries Q]... [--with-vectors] [--format turtle]
quipu pack --verify <file.qpack.db>
quipu unpack <file.qpack.db> [--into <graph-iri>] [--db <path>]

--verify answers whether a legacy SQLite pack is intact before loading it. New repository and release workflows use share and import; they do not publish .qpack.db files.

quipu pack --full / quipu restore — whole-store packs

A --full pack is a different artifact from everything above: not a graph, but the whole store, carried losslessly for internal backup. share carries current facts; --full carries facts as whole rows — g, tx, valid_from, valid_to, op, retracted_tx — so history, including what was retracted, travels with it.

quipu pack --full [--format text] --destination internal --out <path> [--db <path>]
quipu restore <file.qpack | text-pack-dir> [--force] [--db <path>]

Both forms refuse an outward destination, and that refusal is atomic — no output is left behind. A full pack carries the event log and every operational table that is not explicitly excluded, so publishing one is the operator’s decision rather than something this command may acquire by convenience.

--format text does not transport the declared regenerated set. Today that is vectors: embeddings are derived data, roughly 2.2 GB of floats at homelab scale, and quote() renders a BLOB as X'<hex>' — so inlining them would produce a 4–5 GB “git-friendly” artifact, which is not one. The manifest instead records what was left out, how many rows it was, and the recipe to rebuild it (embedding model name, its SHA-256, and the dimension), and restore prints a REGENERATE: line naming them. A restore from a text pack is therefore complete in facts, history and provenance, and not complete in derived data until those are rebuilt — which is why it says so rather than reporting plain success.

The binary --full pack still transports vectors: a backup that forces a re-embed on restore is a poor backup. The two whole-store packs therefore carry different content by design, and their content hashes are not comparable to each other.

--format text writes manifest.json, schema.sql, and data/<table>.sql. Rows are emitted one INSERT per line, ordered by the row text itself, so a row moving on disk produces no diff and a committed pack changes only when its contents do. restore rebuilds the store, checks referential integrity, and refuses unless the reconstruction hashes identically to what the manifest claims — nothing reaches the destination until that holds, so a dump missing a file, a table or a single row is rejected rather than installed as a quietly smaller store.

restore REPLACES; to merge a published pack into an existing store use unpack. Each verb refuses the other’s format by name rather than reporting an intact artifact as corrupt.

quipu knot — assert facts, including identity across stores

quipu knot <file.ttl> [--graph <iri>] [--shapes <shapes.ttl>]
           [--timestamp <ISO-8601>] [--db <path>]

Asserts Turtle into the store, validated against shapes. In the sharing context this is how owl:sameAs between two stores’ IRIs gets written — identity is a fact in the graph, visible and retractable, not a string-matching heuristic.

quipu load is an alias for knot.

Archives

quipu graph freeze <iri> [--out <dir>] [--actor <who>] [--db <path>]
quipu graph thaw <iri> [--actor <who>] [--db <path>]
quipu graph list [--kind <token>] [--frozen] [--db <path>]

Deep freeze produces read-only, full-history graphs. See Graph Kinds & Deep Freeze.

Producer attestation and the three trust tiers

A share can carry a signed statement of who produced it. Every import reports the tier it reached, and the three are genuinely different claims — not degrees of the same one.

Minting a share with an attestation

quipu share --output <dir> ... --attest \
  --attest-agent <agent> --attest-session <session> --attest-introducer <who> \
  --attest-issued-at <epoch> --attest-nonce <32 hex chars> \
  [--attest-key <path>] [--attest-ttl <secs>]

--attest-issued-at is required rather than defaulted to the wall clock: two runs over one pinned dataset must produce the same signed bytes, or the share is not re-derivable. --attest-nonce must be 32 lowercase hex characters and is checked at mint time — a share minted with any other nonce is refused by every importer.

The key comes from --attest-key, else $QUIPU_SIGNING_KEY, else .quipu/verifier.pk8, created 0600 on first use. That is v1 host-file custody, the same the governance plane uses; it is not an HSM.

Registering a producer, out of band

quipu attest register --agent <a> --session <s> --public-key <hex> \
  --introducer <who> --issued-at <epoch> --expires-at <epoch> [--db <path>]
quipu attest list [--db <path>]

Importing a share never registers its producer. This is the point, not an omission: a key that vouches for the bundle it arrived in vouches for nothing, and an attacker substituting the whole bundle would substitute the key with it. Registration is a separate act by the consumer, using a key obtained some other way — the same rule the governance plane states as quipu never self-registers.

So a first import from an unknown producer reports claimed, and reports it honestly. Reaching attested requires someone to decide that this key is that producer.

Automated callers should require attested. Accepting claimed is reasonable, but it should be a deliberate choice by a caller who says so, not the effect of a tier that merely does not read as failure.

Keeping this page honest

tests/cli_doc_drift.rs reconciles three surfaces: the dispatch arms in src/main.rs, the --help text, and this page. Checking any two is not enough — when that test was written, --help documented share, status, merge and unpack but not import, so a page-versus-help check would have passed while the verb that receives a share stayed undiscoverable.

REST API

The quipu-server binary exposes all Quipu operations over HTTP (Axum).

Unrecognized request fields

Successful tool-backed JSON endpoints report unrecognized top-level request keys in a sorted ignored_fields array. Requests containing only recognized keys omit that field. The accepted keys come from the tool’s input schema, with HTTP adapter fields accounted for separately. /reason, /subscriptions, /graph/create, and /graph/label also report unrecognized keys. Errors retain their existing status and response body.

This is reporting, not rejection or a preview mode. For example, a successful POST /knot containing "dry_run": true still writes and includes "ignored_fields": ["dry_run"]. /knot does not support dry runs.

POST /export and /query responses negotiated as standard SPARQL results or RDF preserve their standard bodies and report the JSON array in the X-Quipu-Ignored-Fields response header instead. /search/nodes reports verbose as ignored; the separate /search_nodes endpoint supports it.

Reporting covers undeclared top-level fields, not nested keys, value types, or whether a recognized option applies to a particular action. It does not cover non-tool endpoints such as /share, /import, /import/promote, entity GETs, SPARQL protocol form fields, or direct Rust library calls. An absent warning on those surfaces is not evidence that every supplied field was used.

Starting the Server

quipu-server --db my.db --bind 0.0.0.0:3030

GET /.well-known/void

Returns a live VoID and SPARQL 1.1 Service Description projection. The default representation is Turtle; send Accept: application/ld+json for JSON-LD. The document advertises the query endpoint, exact dataset and named-graph counts, used vocabulary namespaces, executable result formats, and compiled entailment features. Quipu’s share manifest.json remains the integrity contract.

Read Concurrency

Reads are served from a pool of read-only connections; writes keep the single FIFO-fair writer connection. WAL already permits N concurrent readers alongside one writer — before the pool, every read took the writer’s mutex, so that capability was present and unused.

[quipu.server]
read_pool_size = 4    # 0 disables the pool; every read then serialises

MEASURED on a 160k-fact store, same binary, pool the only variable (server-CPU divided by wall time, so it counts cores actually used rather than inferring them):

quipu_store_wait_seconds_total — time spent acquiring, exported on /metrics — falls to 0.000s with the pool on. That is the number to watch: a rising wait means readers are queueing again.

Wall-clock speedup is smaller than the core count because each query costs more CPU when eight run at once (2.6x for a full scan, 1.4x for an index lookup — shared-cache contention, not a lock). The pool removes the serialisation; it cannot make a memory-bandwidth-bound scan free.

Two cases where the pool disables itself, both announced on stderr at startup:

• an in-memory store — each :memory: connection is its own empty database, so a pool there would not be slow, it would be wrong;
• a configured vector delegate or local vector backend — those are not shareable with a read-only connection, and several pooled handlers (/search_nodes, /search_facts, /unified_search, /ask) are vector-backed. Rather than answer the same question from two different indexes depending on which connection took it, the pool stands down.

read_pool_size = 0 is the rollback, and it is runtime config — no redeploy.

Authentication

Reads are open; writes need a bearer token. When the server is started with an auth token configured, every write endpoint requires:

Authorization: Bearer <token>

Reads — /query, /search, entity lookups, /health, /version — need no credential and answer normally.

Additive named credentials

[quipu.server].crew_credentials_file optionally points to a local JSON registry of SHA-256 verifiers for administrator-issued, high-entropy bearer tokens. Keep auth_token in place: named credentials are additional identities and do not replace the current or previous shared bearer. Public reads and read-only mode retain their behavior. An unconfigured registry changes nothing.

The file has version: 1 and a credentials array. Each entry contains credential_id (a unique non-secret identifier), principal (an absolute crew IRI), audience (exactly quipu), and token_sha256 (64 lowercase hex digits, the SHA-256 of the presented token string). Issue at least 32 cryptographically random bytes per credential and encode them for transport; this fast verifier is not suitable for human passwords. The issuer must verify that the principal is an existing crew identity. Parsing a registry checks syntax, not graph membership. No bearer plaintext belongs in this file or in the graph.

Loading captures an immutable policy at startup. Invalid optional registries are reported without their contents; shared authentication remains available. Validate and atomically install a complete registry before provisioning clients. A restart with an invalid registry will not activate its named credentials; preserve the last validated file and verify candidate configuration before a rollout. This initial implementation provides no issuance, rotation, revocation, or hot reload.

Named writes produce authenticated_request_start and authenticated_request_complete JSON audit events with credential ID, principal, method, route, and a process-local correlation ID. Missing completion is indeterminate. The credential principal is independent of declared actor, task, and source values. Import/promotion and RDF graph-store transactions use the registry principal through their existing authenticated-actor paths. Locally created fact transactions also retain separate authenticated evidence, exposed as authenticated by /transactions. Generic handlers preserve caller-declared actor and source; neither can replace this credential evidence.

The evidence is inserted inside the fact transaction’s savepoint, including fork materialization and overlay tombstones. Rollback removes it. Owned request context crosses blocking dispatch and deferred snapshot promotion, and is restored before a worker thread is reused. Schema/registry operations without a fact transaction retain request-level audit only. Library/CLI writes without an HTTP identity and copied historical transactions have null local authentication evidence; a foreign actor is not proof of possession of a local credential. End-to-end MCP attribution requires the proxy to select the corresponding downstream Quipu credential. The shared bearer remains legacy-shared-bearer, including if a registry entry accidentally duplicates its verifier.

POST /share is also read-only. It returns the canonical Git-share manifest and exact file contents in one JSON response, allowing a proxy on another host to forward Quipu’s own canonicalization, hashes, and share ID instead of reproducing them. The body accepts scope, shapes, no_shapes, parent_share, turtle_view, and an optional max_bytes that can lower (but not raise) the 8 MiB server cap.

The authoritative list is http_auth::WRITE_ENDPOINTS in src/http_auth.rs, not this page. It is enforced: write_endpoints_cover_every_route fails the build if any registered route is unclassified, so the code cannot drift from itself — but this page can drift from the code, so treat it as a summary and the constant as the answer.

Two entries surprise people, and both are deliberate:

A refusal is never silent. Both refusals return a JSON body naming the cause, so curl -s cannot render an auth failure as an empty result:

{"endpoint":"/project","reason":"missing_or_invalid_bearer_token","error":"unauthorized: ..."}
{"endpoint":"/knot","reason":"server_is_read_only","error":"read-only mode: ..."}

reason is the stable field to branch on; error is prose and may be reworded.

Request Attribution

Callers can attach two optional headers to every endpoint:

Both values appear in request start/completion logs. The client, task, and route-template dimensions are also exported by quipu_http_client_requests_total and quipu_http_client_request_seconds_total. Client and task identities have independent cardinality budgets; excess caller-controlled values fold into a visible other bucket instead of growing the registry without bound. Use increase(...[window]) for counter comparisons so process restarts do not invalidate the result.

Endpoints

All POST endpoints accept Content-Type: application/json.

GET /health

Health check.

curl localhost:3030/health

Response: {"status": "ok"}

GET /stats

Store statistics.

curl localhost:3030/stats

Response: {"facts": 1234, "entities": 56, "predicates": 12}

GET /query and POST /query

Execute a SPARQL query. Quipu implements the SPARQL 1.1 Query Protocol GET and direct-query POST transports, while retaining its JSON POST extension:

# Standard GET (request target limited to 8 KiB)
curl -G localhost:3030/query \
  -H 'Accept: application/sparql-results+json' \
  --data-urlencode 'query=SELECT ?s WHERE { ?s ?p ?o } LIMIT 5'

# Standard direct-query POST (body limited to 1 MiB)
curl localhost:3030/query -X POST \
  -H 'Content-Type: application/sparql-query' \
  -H 'Accept: text/turtle' \
  --data 'CONSTRUCT { ?s ?p ?o } WHERE { ?s ?p ?o } LIMIT 5'

# Quipu JSON extension
curl -s localhost:3030/query -X POST \
  -H "Content-Type: application/json" \
  -d '{"query": "SELECT ?s ?p ?o WHERE { ?s ?p ?o } LIMIT 5"}'

For SELECT and ASK, request application/sparql-results+json or application/sparql-results+xml, text/csv, or text/tab-separated-values. CSV and TSV follow the SPARQL 1.1 Results formats, including term spelling and escaping. For CONSTRUCT and DESCRIBE, request text/turtle or application/n-triples. All transports share the configured query deadline and return HTTP 408 when evaluation exceeds it.

POST /update

Execute SPARQL 1.1 Update using either application/sparql-update or an application/x-www-form-urlencoded body containing exactly one update parameter. The endpoint requires write authentication when a bearer is configured. Protocol using-graph-uri and using-named-graph-uri parameters scope a DELETE/INSERT WHERE; mixing them with an in-body USING clause is rejected. Every affected graph passes through Quipu’s normal authority and governance gates, and the request commits atomically across graphs.

curl localhost:3030/update -X POST \
  -H 'Authorization: Bearer <token>' \
  -H 'Content-Type: application/sparql-update' \
  --data 'INSERT DATA { <http://example/s> <http://example/p> "value" }'

Quipu’s JSON extension compacts result IRIs to CURIEs by default using prefixes declared by the currently loaded shape sets; unknown namespaces remain full IRIs. Pass "verbose": true in a JSON request, or ?verbose=1 on GET, to return full IRIs. Standards result formats always retain their prescribed RDF term representation.

Optional fields: valid_at (ISO-8601), tx (integer), graph (a named-graph IRI or dataset name that scopes the query’s default graph without writing a FROM/GRAPH clause — an unknown IRI yields an empty default graph, never a silent ROOT fall-through), and fork (a fork name registered by quipu fork; unknown or dropped forks are refused loudly; mutually exclusive with graph).

include_kinds (array of dataKind tokens, e.g. ["archive"]) widens the default graph set with every registered graph declaring one of those kinds — the explicit opt-in for composing cold/frozen graphs into a hot read. Silence never widens: absent or empty means the scope is unchanged, a FROM clause in the query text still overrides the request-level scope, and fork + include_kinds is refused (one scope authority). The response’s composed labels.kind then honestly reports every kind that contributed.

With "federated": true the whole query text fans out through the federated provider — the local store plus every [[quipu.federation.remotes]] — and the response adds a per-member providers list (each carrying the remote’s operator-declared label) and a complete flag, with every row _provider-tagged and, for declared remotes, _trust/_freshness-stamped. The composed dataset labels fold the remotes in as members, and configured [quipu.labels] floors refuse a federated query exactly as a local one — an undeclared remote fails a configured freshness/trust floor (quipu-fd1). The temporal/graph fields are refused on a federated query (they only shape the local evaluator’s context). See Federation.

POST /knot

Assert facts from Turtle data.

curl -s localhost:3030/knot -X POST \
  -H "Content-Type: application/json" \
  -d '{"turtle": "@prefix ex: <http://example.org/> . ex:alice a ex:Person ."}'

Optional fields: shapes (SHACL Turtle), timestamp, valid_from, actor, source, replace_snapshot + snapshot (diffed replacement of a producer’s prior facts under a stable key), and graph (a named-graph IRI that must already be registered committed-class via POST /graph/create; unknown IRIs error, overlay-class targets are refused, omitted means ROOT).

timestamp is transaction time (when this store came to believe the facts, queried with tx/as_of_tx); valid_from is valid time (when they became true of the world, queried with valid_at). Omitting valid_from reuses timestamp for both, which is the historical behaviour. valid_from is RFC 3339 and is normalised to YYYY-MM-DDTHH:MM:SSZ — valid-time is compared as text, so an un-normalised offset sorts wrongly rather than merely looking untidy. A malformed value is refused before anything is written.

# a commit authored in March, ingested tonight
curl -s localhost:3030/knot -X POST \
  -H "Content-Type: application/json" \
  -d '{"turtle": "@prefix ex: <http://example.org/> . ex:c1 a ex:Commit .",
       "valid_from": "2026-03-04T09:15:00+01:00"}'

Response: {"tx_id": 1, "count": 2, "conforms": true, "valid_from": "2026-03-04T08:15:00Z"} — the echoed valid_from is the normalised key the facts were actually stored under.

POST /cord

List entities.

curl -s localhost:3030/cord -X POST \
  -H "Content-Type: application/json" \
  -d '{"type": "http://example.org/Person", "limit": 50}'

POST /unravel

Time-travel query.

curl -s localhost:3030/unravel -X POST \
  -H "Content-Type: application/json" \
  -d '{"tx": 5}'

POST /episode

Ingest an episode.

curl -s localhost:3030/episode -X POST \
  -H "Content-Type: application/json" \
  -d '{
    "name": "deploy-v2",
    "nodes": [{"name": "myapp", "type": "WebApplication"}],
    "edges": [{"source": "myapp", "target": "kota", "relation": "runs_on"}]
  }'

Set "replace_snapshot": true for producers whose payload is the complete current state of an inventory. Facts previously asserted by the same episode name but absent from the new payload are retracted atomically with the new assertions. The default is false, preserving additive knowledge-ingestion semantics. Reusing a stable episode name is required for replacement.

outcome: what the ingest DID — branch on this, never on count

/episode is idempotent. The activity IRI is derived from the episode name and stamped with a content hash, so re-posting identical content is a no-op and retrying after a lost response is SAFE.

The response says which of three things happened:

Why this field exists. Before it, the idempotent no-op returned count: 0, tx_id: 0 — byte-for-byte what a write that achieved nothing returns — while the documented success check for callers of this API was “HTTP 200 with count > 0”. So a successful retry reported as a failure. The natural recovery from “my episode did not land” is to re-post it under a different name or with re-worded nodes, and that mints duplicate entities. The safe mechanism was steering callers into the unsafe action.

So the success check is:

# right: the facts are in the store for all three outcomes
curl -s .../episode -X POST ... | jq -e '.outcome' >/dev/null

# WRONG: reports a successful idempotent retry as a failure
curl -s .../episode -X POST ... | jq -e '.count > 0'

count > 0 remains a useful “did this call write anything” question. It was never a “did the write land” question, and only looked like one because the first post and the only post were usually the same post.

Two things it does not promise, both still on the caller:

• outcome describes THIS episode name. Re-posting the same knowledge under a different name is a new episode and will be created — idempotency is keyed on the name plus content hash, not on meaning.
• A 200 still is not proof of retrievability. A node filed under a type nobody queries is created and unreachable. Ask it back the way a reader would.

Edge relation: which vocabularies /episode can write

/episode used to force every relation into aegis: and then sanitize it, so "relation": "rdfs:subClassOf" was stored as aegis:rdfs_subClassOf — a predicate that resembles the intended one, matches nothing, and is inert — behind HTTP 200 with a healthy count. It no longer does. The policy is now: represent the caller’s predicate faithfully, or refuse and say which path to use. Never silently rewrite it.

The declared prefix set is KNOWN_PREFIXES in src/episode/mod.rs, kept in lockstep with the @prefix block episode_to_turtle emits.

Asserting an alias — entity dedup with owl:sameAs

owl:sameAs is this graph’s alias convention, and /episode’s resolution_hints exist to tell you at ingest time that you are about to split an entity. Acting on that hint is a normal /episode edge:

curl -s localhost:3030/episode -X POST -H "Content-Type: application/json" \
  -d '{"name": "alias-fix", "source": "<bead-id>",
       "nodes": [{"name": "backup-freshness.timer"}, {"name": "backup-freshness-exporter"}],
       "edges": [{"source": "backup-freshness.timer",
                  "target": "backup-freshness-exporter",
                  "relation": "owl:sameAs"}]}'

Two rules that are not obvious from the 200:

• Reuse the existing node names byte-for-byte. Node identity here is the literal name string: quipu matches canonical_name:exact and merges, or it does not match and mints a second node. Re-wording a name on a follow-up post is how aliases get created rather than resolved. /search or /resolve first, and copy the name out.

• count > 0 proves the write landed, not that a reader can find it. Follow every alias write with the query a reader would actually run:

  curl -s localhost:3030/query -X POST -H "Content-Type: application/json" \
    -d '{"query":"SELECT ?o WHERE { <http://aegis.gastown.local/ontology/backup-freshness.timer> <http://www.w3.org/2002/07/owl#sameAs> ?o }"}'


  A 0 here on a 200 write is the silent-rewrite shape: the fact is present and misnamed. Pair it with a control (query a predicate you know is populated) before believing an empty result.

Historical note, since the answer is not guessable from the data: the alias pairs predating this fix were written through /knot (Turtle), which is the only write path that accepts a caller-supplied source. Their transaction source strings are free text — e.g. "schema-gate ruling 2026-07-20" — where /episode always stamps episode:<name>, /set stamps set, and /retract stamps retract. Some are stamped actor: null, source: null: /knot called with neither, which lands a structural identity fact with no audit trail. Pass actor and source.

POST /set

Atomic single-call supersede: set (entity, predicate) to exactly value, retracting every current object on that predicate and asserting the new one in ONE transaction. Re-parenting (reports_to A → B) is one call with no window where the predicate is empty and no way to end up multi-valued by forgetting the retract half.

curl -s localhost:3030/set -X POST -H "Content-Type: application/json" \
  -d '{"entity": "http://example.org/svc",
       "predicate": "http://example.org/reports_to",
       "value": {"iri": "http://example.org/new-boss"},
       "actor": "<who>"}'

Optional: timestamp, actor. Returns {"tx_id", "retracted": N, "asserted": 0|1, "entity", "predicate"}; setting the already-sole-current value is an idempotent no-op (tx_id: 0, retracted: 0, asserted: 0).

• The predicate is a full IRI, from any vocabulary. This is the endpoint /episode names in its refusal when an edge relation uses an undeclared prefix.
• SINGLE-VALUE semantics: all current objects are replaced. For add-without-remove, assert via /knot.
• The entity must already exist — /set on a typo’d IRI must not mint an unlabelled orphan node. The predicate may be new.
• The value shape discipline is the same as /retract: a bare string is a literal; an edge must be {"iri": "..."}. A bare IRI-shaped string aimed at a Ref-holding predicate is a loud 400, not a mis-shaped write. {"str": "..."} states that a literal is intended and disarms that heuristic.

POST /validate

Dry-run SHACL validation.

curl -s localhost:3030/validate -X POST \
  -H "Content-Type: application/json" \
  -d '{"shapes": "@prefix sh: ...", "data": "@prefix ex: ..."}'

POST /retract

Retract facts for an entity.

curl -s localhost:3030/retract -X POST \
  -H "Content-Type: application/json" \
  -d '{"entity": "http://example.org/old-service"}'

Optional: predicate (only retract matching), timestamp, actor, and value (retract only the one matching triple).

The value shape matters. An object that is an IRI reference — the target of an edge such as reports_to or rdf:type — must be given as a tagged object, not a bare string:

# retract exactly  <svc> reports_to <boss>
curl -s localhost:3030/retract -X POST -H "Content-Type: application/json" \
  -d '{"entity": "http://example.org/svc",
       "predicate": "http://example.org/reports_to",
       "value": {"iri": "http://example.org/boss"}}'

A bare string ("value": "http://example.org/boss") is matched as a string literal, which can never equal a stored IRI reference. Rather than silently report {"retracted": 0} — indistinguishable from “the triple was already gone” — the endpoint now returns a 400 error naming the {"iri": ...} form whenever a bare string cannot match: either the predicate’s stored objects are IRIs, or the string itself parses as an IRI (has a scheme://). A correctly shaped {"iri": ...} (or a genuine string literal) for a triple that does not exist is still a quiet, idempotent {"retracted": 0}.

POST /retract/source

Preview or apply a retraction by the exact transaction source string. Requires source and a nonempty repair ticket/reason. The default apply: false only previews; apply: true retracts the planned facts and stamps the transaction source as repair:<ticket>. Optional fields are graph (defaults to ROOT), timestamp, and actor. The graph must be committed; source matching is literal, not a prefix or pattern. As a write route, even preview requires the configured bearer.

The response reports planned, the affected entities count, a bounded sample, sample_truncated, and repair_source. A preview has applied: false and null tx_id/retracted; an applied result reports the actual retraction transaction.

POST /episode/retract

Episode-scoped logical retraction. Retracts the facts an episode’s ingest contributed — its activity node, generated entities, the bare relationship triples (edges), and any reified confidence statements — by closing their valid_to via the bitemporal retract path. Facts are never physically deleted, so time-travel queries (/cord, /unravel) still show them.

Identity of surviving nodes is preserved by default. Identity triples (rdfs:label, rdf:type) are ordinary facts, so a naive scope retraction would strip them from any node this episode named even when edges from other episodes keep that node alive — leaving a “ghost”: a node that answers predicate queries but is invisible to every label scan and type query. The on_orphan parameter decides that contract:

Regardless of policy the response reports identity_orphans (a count) and names the affected nodes, so a caller can tell a cleanup from a mutilation.

The retraction unit is the episode’s ingest transaction(s), identified by their source = "episode:{name}" tag. Because identical assertions are deduplicated to a single owning transaction, retracting an episode only removes the facts that episode actually wrote — entities and facts contributed by other episodes (even about the same shared IRIs) survive untouched. This is the safe way to undo a specific episode’s contributions without SQL surgery on shared entities.

curl -s localhost:3030/episode/retract -X POST \
  -H "Content-Type: application/json" \
  -d '{"episode": "goldblum-deploy-verify-032"}'

Aliases for episode: episode_id, name. Optional: timestamp, actor, on_orphan (preserve | refuse | allow, default preserve — see the table above). Idempotent — retracting an already-retracted or unknown episode returns {"retracted": 0} and changes nothing.

Response fields: tx_id, retracted (count), episode, statements (the retracted facts), and the identity accounting — on_orphan (the policy applied), identity_preserved (count) with identity_preserved_statements, and identity_orphans (count) with identity_orphan_entities (entity, lost_label, lost_type).

Auth (hq-azs / hq-otm). Retraction is a write — and a more sensitive one than assertion, since it removes facts from current views. The endpoint is in http_auth::WRITE_ENDPOINTS, so it already honours read-only mode and the bearer token like every other write. When per-principal scopes (hq-azs) and crew identity (hq-otm) land, retraction should be gated to an authorized principal, not merely the same token that permits assertion.

POST /resolve

Ask what entity resolution would say about a name, without writing anything.

Returns the same candidate list the ingest path computes, so “is this a duplicate of something we already have?” can be answered before minting the entity.

curl -s localhost:3030/resolve -X POST \
  -H "Content-Type: application/json" \
  -d '{"name": "example-service", "properties": {"type": "DatabaseService"}}'

# {"candidates":[{"iri":"http://example.org/ontology/example-service",
#                "score":0.9,"matched_on":"canonical_name:jaro_winkler:0.90"}],
#  "count":1,"has_matches":true}

name is required. properties (object), top_k and threshold are optional; top_k and threshold default to [quipu.resolution] config, so this route and the ingest path agree by construction rather than by convention.

Both matchers run: Jaro-Winkler over rdfs:label (matched_on: canonical_name:jaro_winkler:<score>) and vector similarity when an embedding provider is configured (matched_on: embedding:<score>). The embedding half is the reason a client-side name check is not a substitute.

Notes:

• It does not write — and that is guaranteed by a test, not by the type. The handler takes a &Store, but do not read that as a read-only capability: Store writes through &self methods via interior mutability, so a &Store handler can commit. Several routes registered the same way do write, which is why /overlay/create sits in WRITE_ENDPOINTS despite its signature. What actually holds this route read-only is the explicit assertion in tool_resolve_entity_is_a_genuine_read_commits_nothing.
• It is not a write endpoint (absent from http_auth::WRITE_ENDPOINTS), so it needs no bearer token and answers normally on a read_only = true server — where POST /episode returns 403.
• It does not require [quipu.resolution].enabled. Resolution being off disables the ingest-time hints; this route still answers.
• Not to be confused with POST /reconcile — the W3C Reconciliation API, which has its own substring scoring on a 0-100 scale and does not consult embeddings. (It is routed but undocumented here, as are /spotlight and /fragments.)

POST /shapes

Manage persistent SHACL shapes.

# Load
curl -s localhost:3030/shapes -X POST \
  -H "Content-Type: application/json" \
  -d '{"action": "load", "name": "person", "turtle": "@prefix sh: ..."}'

# List
curl -s localhost:3030/shapes -X POST \
  -H "Content-Type: application/json" \
  -d '{"action": "list"}'

# Remove
curl -s localhost:3030/shapes -X POST \
  -H "Content-Type: application/json" \
  -d '{"action": "remove", "name": "person"}'

Rule Turtle (a rule:Rule subjects) may be stored alongside SHACL shapes. A successful load or remove also hot-reloads the reactive reasoner’s ruleset — rules take effect on the next write, no restart (before 2026-08-27 the ruleset was a startup snapshot).

POST /reason

Run a Datalog ruleset to fixpoint and persist its derivations (source = reasoner:<rule-id>). A write endpoint — derivations assert and retract through the fact log — so it is bearer-gated like /episode.

Derivations land in the target graph’s companion inferred graph (<graph>#inferred; ROOT’s is urn:quipu:graph:root#inferred, quipu-0b6). Read them composed: FROM <urn:quipu:graph:root> FROM <urn:quipu:graph:root#inferred> in a /query body. The suffix is reserved — external writes to a companion graph are refused.

Body fields, all optional: rules (inline rule Turtle; absent, the stored combined shapes are used), prefix (default IRI prefix for unqualified predicate names), graph (a named-graph IRI — premises and derivations both scope to it; absent means ROOT), timestamp (valid-from for derived facts).

# Evaluate the rules already loaded via /shapes, against ROOT
curl -s localhost:3030/reason -X POST \
  -H "Content-Type: application/json" -d '{}'

# Evaluate an inline ruleset against a named graph
curl -s localhost:3030/reason -X POST \
  -H "Content-Type: application/json" \
  -d '{"rules": "@prefix rule: ...", "graph": "http://example.org/graphs/staging"}'
# {"rules":2,"strata_run":1,"asserted":14,"retracted":0,
#  "per_rule":[{"rule":"R1","asserted":14},{"rule":"R2","asserted":0}]}

POST /explain

Walk a fact’s derivation chain from the provenance in the fact log. Read-only and open (no bearer token). Body: s, p, o (IRIs; a non-IRI o is treated as a string literal), optional depth (default 5).

A base fact answers with its transaction and source. A reasoner:<rule-id> fact answers with the rule and the premise facts it currently re-matches; an owl:materialize fact answers with every axiom family that currently re-derives it — premises recursed, so the tree bottoms out in base facts. Support is re-matched, not stored: a premise retracted since derivation shows as absent support, which is itself diagnostic.

curl -s localhost:3030/explain -X POST \
  -H "Content-Type: application/json" \
  -d '{"s": "http://example.org/a", "p": "http://example.org/dependsOn",
       "o": "http://example.org/c"}'
# {"fact":{...},"found":true,"tx":42,"source":"owl:materialize",
#  "derivation":{"kind":"owl","families":[{"family":"transitive",...}]}}

POST /search

Vector similarity search. Body: embedding (or query), optional limit, valid_at, and best-effort scoping by group_ids / entity_type.

curl -s localhost:3030/search -X POST \
  -H "Content-Type: application/json" \
  -d '{"embedding": [0.1, 0.2, ...], "limit": 10}'

group_ids is a best-effort provenance filter, not an isolation boundary: it narrows to entities whose facts trace (via prov:wasGeneratedBy → episode → groupId) to a listed group, and it drops ungrouped /knot facts (they have no episode to trace). entity_type restricts to an rdf:type IRI. See group-isolation.

⚠️ The type: A, B in a result’s text is NOT valid as /episode input. A multi-typed entity renders as ... type: Feature, Tool, Concept, and that string looks exactly like a type value you could paste back. It is not one — /episode takes type as a SINGLE class and refuses a comma-separated value (400). To give an entity several types, send one node entry per type, repeating the same name; the canonical-name resolver folds them into one entity:

{"nodes":[{"name":"governor","type":"Feature"},{"name":"governor","type":"Concept"}]}

This bites careful readers specifically: searching first to reuse existing conventions is what hands you the string, so following the “search before you mint” rule is what leads into it.

Why the rendering is not simply changed: that text is the EMBEDDING SOURCE (src/embedding.rs, format!("type: {}", types.join(", "))), not a display string. Altering the separator changes the text every stored vector was computed from, so it would need a full re-embed backfill to stay coherent — a much larger change than it looks. Documented here rather than “fixed” cheaply and inconsistently.

POST /hybrid_search

Combined SPARQL filter + vector ranking.

curl -s localhost:3030/hybrid_search -X POST \
  -H "Content-Type: application/json" \
  -d '{
    "sparql": "SELECT ?s WHERE { ?s a <http://example.org/Service> }",
    "embedding": [0.1, 0.2, ...],
    "limit": 5
  }'

POST /project

Graph projection and algorithms.

curl -s localhost:3030/project -X POST \
  -H "Content-Type: application/json" \
  -d '{"algorithm": "in_degree", "limit": 10}'

GET|POST /report

Live graph report: top hubs (god-nodes), surprising cross-community connections, and auto-suggested questions (see quipu_report in the MCP tools reference). Read-only. GET returns the report with defaults; POST accepts an options body (type, predicate, hubs, surprises, questions).

curl -s localhost:3030/report
curl -s localhost:3030/report -X POST \
  -H "Content-Type: application/json" \
  -d '{"hubs": 5, "surprises": 5, "questions": 6}'

GET /graphs

List registered named graphs with class, source, storage lifecycle, and label cache (freshness / durability / trust / policy / kind). Query params: kind (a dataKind token) and lifecycle (frozen). Also the consumer capability probe for the graph-kinds surface: a 404 means the store predates it — treat that as “cannot tell”, never as “no graphs”.

A graph whose latest RML materialization is on record additionally serves a materialization object (quipu-212): the mapping IRI, mapping-closure hash, external-truth subject, verified source hash, transaction, and timestamp of the last executor commit — the comparands a freshness verdict needs (camayoc’s rml_executor.py freshness/remap read them from here). Parsed from transaction provenance, so it cannot drift from what actually committed; omitted rather than faked on graphs with no RML history.

curl -s 'localhost:3030/graphs?kind=operational'

POST /graph/label

Declare a graph’s labels — any subset of the five axes. Required: graph, timestamp. Optional: freshness, durability, kind (a dataKind token, strictly parsed), trust ({"iri", "chain", "rank"}), policy (array of obligation tokens), valid_to (expiring declaration), actor. Each axis is parsed strictly: an unrecognised value is an error, never a dropped axis. Returns {"tx_id": N}. Write endpoint; honors bearer auth.

curl -s localhost:3030/graph/label -X POST -H "Content-Type: application/json" \
  -d '{"graph": "urn:app:runs/2026-08", "kind": "operational",
       "freshness": "fresh", "timestamp": "2026-08-24T00:00:00Z"}'

POST /graph/freeze and POST /graph/thaw

The deep-freeze surface — same inputs and outputs as the quipu_graph_freeze / quipu_graph_thaw MCP tools. Freeze relocates a graph’s full history into a read-only archive pack (kept addressable and composable at query time); thaw restores it. Both are write endpoints and honor bearer auth.

curl -s localhost:3030/graph/freeze -X POST -H "Content-Type: application/json" \
  -d '{"graph": "urn:app:shuttle/runs/2026-07", "timestamp": "2026-08-24T00:00:00Z"}'

POST /graph

Render-ready node-link projection — the single payload the web UI draws from.

curl -s localhost:3030/graph -X POST \
  -H "Content-Type: application/json" \
  -d '{"limit": 250}'

Body: optional limit (nodes, ranked by degree; default 250, max 2000), type (restrict to one rdf:type IRI), include_episodes (default false).

{
  "nodes": [{"iri": "…", "label": "kota", "type": "…/ProxmoxNode", "deg": 8}],
  "edges": [[0, 10, "managed_by"]],
  "types": [{"iri": "…", "label": "SystemdService", "count": 15}],
  "truncated": {"shown": 250, "of": 1180},
  "stats": {"nodes": 250, "edges": 612}
}

edges address nodes by index into nodes, not by IRI — an IRI averages ~45 bytes and would otherwise repeat at both ends of every edge. prov:Activity episodes and rdf/rdfs/prov scaffolding predicates are excluded by default so the domain graph is not buried in provenance. truncated always states what was dropped rather than silently capping.

POST /context

Knowledge context pipeline.

curl -s localhost:3030/context -X POST \
  -H "Content-Type: application/json" \
  -d '{"query": "traefik", "max_entities": 10}'

The summary carries an embeddings block reporting whether semantic retrieval was possible at all, so an empty entities list is not ambiguous:

"embeddings": { "configured": true, "embedded_entities": 2579 }

configured: false means no embedding provider is attached; embedded_entities: 0 with configured: true means the store was never embedded (quipu knot does not embed — run a backfill). See Embeddings and Semantic Search.

POST /unified_search

Unified knowledge search (text + optional vector); results tagged source="knowledge" with normalized 0–1 scores. Body: query, optional embedding, limit, expand_links, max_facts_per_entity.

POST /ask

Run a curated, parameterized named query by name (see quipu_ask in the MCP tools reference). Body: name (omit or "list" to list the catalog), optional params map. Parameters are validated and escaped by type. Response: query, resolved sparql, columns, rows, count.

curl -s localhost:3030/ask -X POST \
  -d '{"name":"service_deps","params":{"entity":"http://example.org/traefik"}}'

POST /search_nodes

Search entities by natural-language query (text matching). Body: query, optional group_ids, max_results, entity_type_filter.

POST /search_facts

Search relationships/edges by natural-language query. Body: query, optional group_ids, max_results.

POST /search/nodes

Graphiti-compatible node search (mirrors Graphiti’s search_nodes shape).

POST /episodes/complete

Graphiti-compatible flat episode ingestion. Body: name, optional episode_body, group_id, source_description, timestamp.

POST /impact

Impact analysis: walk downstream from an entity, optionally counterfactual. Body: entity, optional remove, hops, predicates, timestamp.

POST /path/cone

Golden paths: the provenance cone of a trajectory — which steps did its falsifier-gated verified result depend on? Read-only. Body: trajectory (the Trajectory IRI, required), optional via (array of derivation predicate IRIs walked in addition to verifiedBy, which is always followed), hops (walk depth, default 8), base_ns (vocabulary namespace override; defaults to the store’s configured base_ns).

curl -s localhost:3030/path/cone -X POST \
  -H 'Content-Type: application/json' \
  -d '{"trajectory": "http://example.org/traj/42", "hops": 6}'

Returns the cone report: the trajectory, the hop bound, the verifications it was checked against, and one entry per step carrying iri, order, verdict (InCone / OutOfCone / CannotEvaluate) and the human-readable reason. Refuses a trajectory with no steps or no falsifier-gated verification.

POST /path/backtest

Golden paths: replay a pruned candidate (the exemplar trajectory minus omitted steps) over recorded history — which past trajectories sharing a work-item topic would have conformed under gp-grammar/1, and how did their work items close? Read-only. Body: exemplar (the exemplar Trajectory IRI, required), optional omit (array of step IRIs the candidate omits), base_ns.

curl -s localhost:3030/path/backtest -X POST \
  -H 'Content-Type: application/json' \
  -d '{"exemplar": "http://example.org/traj/42",
       "omit": ["http://example.org/step/3"]}'

Returns the backtest report: the exemplar, the grammar, the matched topics, one row per replayed trajectory, and the conformer/deviator completion counts with an explicit cannot_evaluate tally — 0 matches and “nothing measurable” are never reported as the same thing.

POST /propose

Submit a schema-evolution proposal. Body: kind, target, diff, proposer, optional rationale, trigger_ref, timestamp.

POST /proposals

List schema-evolution proposals. Body: optional status (pending/accepted/rejected).

POST /proposal/accept

Accept a pending proposal. Body: id, optional decided_by, note, timestamp.

POST /proposal/reject

Reject a pending proposal. Body: id, note, optional decided_by, timestamp.

POST /entity_history

Return the full fact history (across transactions) for an entity. The body field is iri, not entity — {"entity": ...} returns {"error": "missing 'iri' parameter"}.

curl -s localhost:3030/entity_history -X POST -H "Content-Type: application/json" \
  -d '{"iri": "http://example.org/svc"}'

Returns {"iri", "count", "history": [{"op", "predicate", "value", "tx", "valid_from", "valid_to"}, ...]}. The tx is the handle for /transactions below — together they answer “which write path asserted this fact, and who owned it”.

GET /transactions

List transactions in the store, oldest first.

There is no offset. Passing limit alone therefore returns the oldest N — on a 38k-transaction store, ?limit=40000 hands back transactions 1–10000 and nothing recent. To look up a specific transaction, use ?since=<tx-1>&limit=1.

Each entry is {id, timestamp, actor, source, authenticated}. authenticated is null when local credential evidence is absent; otherwise it contains principal, credential_id (null for a shared bearer), and auth_class (named_bearer or legacy_shared_bearer). It is separate from declared fields. source identifies the write path: episode:<name> (/episode), set (/set), retract (/retract, /episode/retract), or caller-supplied free text (/knot). actor and source are both optional on /knot. Supply them for source provenance; authenticated credential evidence does not reconstruct a missing source or historical actor.

POST /embed_backfill

Backfill embeddings for entities that lack them. Returns {"status": "error", ...} when no embedding provider is configured; the --embed-backfill startup flag instead exits non-zero rather than serving without the capability it was asked for.

GET /preview/{iri}

Return a preview rendering of an entity by IRI.

Service Metadata

GET /version

What build is actually running: {"version", "git_sha", "git_dirty", "features"}. The git SHA is the field that matters for “is the fix deployed?” — a semantic version does not move when a fix lands. features maps every declared Cargo feature to whether this binary compiled it in.

GET /metrics

Prometheus scrape endpoint (text/plain; version=0.0.4). Request counters come from the middleware. Graph-size gauges use a per-store snapshot: a single background task scans the live root graph at startup and again five minutes after each refresh completes. Scrapes neither acquire database connections nor trigger scans. WAL size still comes from a current filesystem metadata read.

Before the first successful refresh, graph-size gauges are omitted and quipu_graph_counts_ready is zero. A failed refresh retains the last successful snapshot and increments quipu_graph_counts_refresh_failures_total; it never substitutes zero counts. quipu_graph_counts_age_seconds and quipu_graph_counts_last_success_timestamp_seconds expose stale data, while quipu_graph_counts_refresh_duration_seconds includes the last attempt’s pool wait and scan time. These freshness signals must be considered when consuming the graph-size gauges: a successful HTTP scrape alone does not prove fresh counts.

Caller attribution uses the normalized X-Quipu-Client header (falling back to User-Agent, then unattributed) and is capped at 32 identities; overflow folds into other rather than creating unbounded Prometheus cardinality:

• quipu_http_client_requests_total{client,endpoint} — request count;
• quipu_http_client_request_seconds_total{client,endpoint} — wall time;
• quipu_store_wait_seconds_total{client,endpoint} — time waiting to acquire a store connection;
• quipu_store_held_seconds_total{client,endpoint} — store capacity consumed.

The server also writes one-line JSON request events to stderr for journald/Loki. request_start makes a request that never completes visible. request_complete adds status, duration_ms, and the actual auth_outcome; /query responses also add query_shape and result_size. Logs contain normalized attribution and bounded metadata, never the Authorization header or response body. Slow or failed query text retains its existing separate diagnostic line.

UI assets (not documented individually)

GET / and GET /ui serve the built-in web UI; GET /quipu-components.js, GET /graph-canvas.js, GET /datalinks.js and GET /vendor/three.module.min.js serve its static assets, vendored so the UI renders on an air-gapped deploy. They are part of the UI, not the API surface.

Export

GET|HEAD|PUT|POST|DELETE /rdf-graph-store

SPARQL 1.1 Graph Store HTTP Protocol using indirect graph identification. Select exactly one target with ?graph=<absolute-IRI> or ?default. GET returns the graph in the RDF syntax requested by Accept; HEAD returns the same status and headers without a body. PUT replaces the graph, POST merges the payload, and DELETE removes its contents (and a named graph’s registry entry). Writes use the same bearer-token and read-only enforcement as Quipu’s native write APIs.

curl localhost:3030/rdf-graph-store?graph=http%3A%2F%2Fexample.org%2Fg \
  -X PUT -H 'Content-Type: text/turtle' --data-binary '@graph.ttl'
curl localhost:3030/rdf-graph-store?graph=http%3A%2F%2Fexample.org%2Fg \
  -H 'Accept: application/n-triples'

Supported request and response syntaxes are Turtle (text/turtle) and N-Triples (application/n-triples). Unsupported request media types return 415; unsupported response types return 406; unknown named graphs return 404.

POST /export

Export deterministic RDF from ROOT, one named graph, one episode provenance group, or a SPARQL CONSTRUCT/DESCRIBE result. graph, group_id, and construct are mutually exclusive. The handler uses the read pool, so serializing a large export does not hold Quipu’s writer lock.

curl -s localhost:3030/export -X POST \
  -H "Content-Type: application/json" \
  -d '{"graph": "http://example.org/graphs/derived", "format": "turtle"}'

Returns the RDF document itself with the matching content-type, not JSON. N-Triples output is lexically sorted and duplicate-free. Blank-node dataset canonicalization belongs to the share-bundle layer; raw export preserves blank node labels.

Share Import and Composition

POST /import

Verify a v1 share manifest and its exact export.nt and shapes.ttl payloads, then stage the resolved triples in a per-share named graph. Exact canonical-name matches are rewritten to local IRIs; fuzzy matches are returned as review candidates and never merged automatically. Local loaded shapes remain the authority: bundled shapes are evidence only. Off-vocabulary or non-conforming data is retained in a quarantine graph and is not eligible for promotion.

The request fields are manifest, export_ntriples, shapes_turtle, source, and optional actor. The response reports staged, quarantined, or unchanged, the stable import and graph IRIs, accepted/quarantined counts, resolution candidates, the SHACL report, and promotion blockers. This is an authenticated write endpoint.

POST /import/promote

Explicitly copy an eligible staging graph into ROOT. The body is {"share_id":"sha256:...","actor":"optional"}. Quarantined shares have no eligible staging graph and are refused. Importing never promotes implicitly. Promotion preserves exact-fact ROOT retractions: replaying a snapshot cannot restore a locally removed fact. suppressed_retractions reports withheld facts; triples counts eligible snapshot facts, including already-present duplicates. An explicit local reassertion can restore a fact. Source-graph membership remains available as provenance even when a ROOT fact was removed. Foreign transaction anchors are never compared with local transaction IDs.

Registries

These mirror their MCP tools (see the MCP reference) — action-style managers where an unknown action errors rather than falling through to list.

POST /ontology

Manage OWL ontologies: {"action": "load"|"materialize"|"list"|"remove", "name", "turtle", "timestamp"} (mirrors quipu_load_ontology). Registered even without the owl feature — a build without it answers with an explicit error naming the missing feature rather than a 404, so “not compiled in” and “no such route” stay distinguishable.

materialize re-derives entailments from the ontologies already loaded, without loading anything. It is the endpoint a scheduler calls, and it exists because on a deployment with [quipu.owl] reactive_materialize = false there is otherwise nothing that ever runs the reasoner: ReactiveOwl is not registered, so the write path never materialises, and OWL entailment is dark for every family rather than merely delayed (aegis-v3gf6u).

curl -s localhost:3030/ontology -X POST \
  -H "Content-Type: application/json" \
  -H "Authorization: Bearer $QUIPU_AUTH_TOKEN" \
  -d '{"action": "materialize"}'
# {"action":"materialize","ontologies":7,
#  "materialized":{"same_as_inferences":42, ..., "total":118}}

It materialises the combined ontology, matching what the write gate reasons over: an axiom in one document over a class declared in another is invisible to either alone. A store with nothing loaded answers "ontologies": 0 with a null materialized and a note, rather than reporting a successful run of zero — a scheduler has to be able to tell “ran, derived nothing” from “there was nothing to derive from”.

Cadence must exceed the scan cost: the full pass re-reads every current fact, measured at ~2.3 s against 641,803 facts. That cost per WRITE is what made the reactive observer an OOM (aegis-2s6xpb); the same work on a timer is the same closure without the per-write scan. Entailments land in the companion inferred graph, so a wrong owl:sameAs pair stays quarantined and re-derivable.

POST /subscriptions

Event-push subscription registry: {"action": "create"|"list"|"delete", ...} — register an HTTP endpoint to receive graph-change events pushed by the server’s delivery worker (mirrors quipu_subscriptions).

POST /datasets

Named dataset registry: {"action": ..., "name", "members", ...} — declare a named set of graphs queryable as one unit via FROM <dataset> or the graph query param (mirrors quipu_datasets).

POST /queries

Stored named-query registry: {"action": "load"|"list"|"get"|"remove", "name", "template", "params", ...} — competency questions callable through /ask alongside the compiled-in catalog; definitions are validated at load and versioned (mirrors quipu_queries).

Governance

The REST half of the governance gate; each mirrors its MCP tool, where the semantics are documented in full.

POST /policy/check

Committed-tier evaluation of a governance Policy against a target: returns a Verdict — outcome ∈ satisfied | unsatisfied | unknown bound to a reproducible evidence_hash — signed when the store has a signing identity.

curl -s localhost:3030/policy/check -X POST \
  -H "Content-Type: application/json" \
  -d '{"policy": "http://example.org/policy/has-owner", "target": "http://example.org/svc"}'

POST /verifier/authorized

{"verifier", "predicate"} → {"authorized": bool}: may this verifier attest this predicate, per the Phase-0 verifier registry?

POST /verdict/verify

Verify a signed Verdict against the Phase-0 root of trust: {"predicate_id", "target_ref", "outcome", "evidence_hash", "tier"?, "verifier", "signature"} → {"signature_valid", "verifier_registered", "verifier_authorized", "trusted"} — trusted is the conjunction to gate on.

Overlays

Scratch layers over the committed graph (bind-once to a parent branch): hypotheses go in the overlay, the committed layer stays untouched. Mirror the quipu_overlay_* MCP tools.

POST /overlay/create

{"overlay": "<iri>", "parent_branch": "<iri>"?} → {"g", "parent_branch"}. Omitted parent_branch binds to ROOT.

POST /overlay/write

{"overlay", "op": "assert"|"retract"|"tombstone", "subject", "predicate", "object", "timestamp"?} → {"tx_id"}. tombstone masks the parent’s fact in the composed view.

POST /overlay/compose

{"overlay": "<iri>"} → {"triples": [{subject, predicate, object}], "count"}: the resolved view over [overlay > parent-branch-root], asserted-and-not-tombstoned, nearest wins.

Provenance Analytics

POST /cooccurrence

{"work_item": "<iri>", "valid_at"?, "tx"?} → the other work-items sharing at least one touched code entity, via Bead ←implements− GitCommit −modifies→ entity, ordered by overlap strength (mirrors quipu_cooccurrence).

Events

The durable graph-change event log (at-least-once delivery; consumers dedup by offset).

GET /events

Pull a batch of events in offset order.

Returns {events, next_offset, lag, committed_offset?}; pass next_offset back as since (or commit it) to page forward — polling is a fixpoint, not a rewind.

POST /events/commit

{"consumer_id", "offset"} — durably record a consumer’s cursor. Any offset ≥ 0 is accepted, including a lower one: that is the explicit replay knob.

Refusal events (write.refused)

A refused write never enters the graph, so the event log is where the attempt is recorded (camayoc-0d3 — the incident-rate denominator: how many writes were attempted and refused, by which gate). Every write-gate refusal — SHACL on the episode and /knot paths, and the policy, authority, OWL and placement gates in transact — appends a write.refused event after the refused write’s savepoint has rolled back, so the event survives the rollback that the refusal caused. A failure to record never masks the refusal error itself.

Payload: {gate, graph, actor, source, reason, refused_datums} where gate is one of shacl | policy | authority | owl | placement, graph is the destination graph IRI, reason is the gate’s own terse text (shape/policy id, constraint name; truncated), and refused_datums counts what was refused.

Deliberately not recorded: the refused datum bodies. Refused payloads can be junk or sensitive — the event stores identifying metadata only.

Refusals inside speculate (counterfactual writes) are not recorded: the whole speculation rolls back by design, so a hypothetical write’s refusal is not a real one.

Query via GET /events?types=write.refused, or count by gate with the CLI: quipu events refusals.

Linked-Data Surface

Standards-flavoured read endpoints for semantic-web tooling.

GET /changes

Returns fact-level change records after the optional since transaction. capture selects new_values, old_and_new_values, or new_row; graph optionally scopes the feed to one graph IRI. The response includes next_tx and a watermark so consumers can distinguish an idle feed from a stalled one.

GET /entity/{iri}

Content-negotiated entity page: Accept: application/ld+json → JSON-LD, text/turtle → Turtle, anything else → the web UI’s HTML page for the entity. GET /entity/{iri}/json, GET /entity/{iri}/ttl and GET /entity/{iri}/html pin the format in the path instead of the header. For a full IRI containing path separators or a fragment, use the equivalent query form: GET /entity?iri=https%3A%2F%2Fexample.org%2Fresource%231. JSON-LD is compacted by default with a generated @context derived from the loaded shape prefixes. Add ?expanded=1 for full IRIs and no compact context.

POST /spotlight

DBpedia-Spotlight-style annotation: {"text", "confidence"?} → mentions of known entities found in the text, with offsets and IRIs. The labeled-entity list it scans against is generation-cached, so a burst pays the expensive fetch once.

GET /fragments

Triple Pattern Fragments: ?subject=&predicate=&object=&page=&pageSize= selectors, each optional — a paged triple-pattern read for TPF clients.

POST /reconcile

OpenRefine Reconciliation API: a body without queries returns the service manifest; {"queries": {...}} runs the batch and returns candidates per query, scored the way /resolve scores.

Python Client

quipu-client is a thin, typed Python client for the REST API, living in python/ in the main repository. Standard library only — urllib all the way down, zero runtime dependencies, Python >= 3.11. It is a wrapper, not a re-implementation: request shapes, auth, and error surfaces are kept honest against the REST reference, and anything not listed here is a call away with curl.

Installation

# from a quipu checkout
pip install ./python

Quick start

from quipu_client import QuipuClient, QuipuError

q = QuipuClient("http://localhost:3030", token="secret-for-writes")

q.health()      # {"status": "ok"}
q.stats()       # {"facts": ..., "entities": ..., "predicates": ...}
q.version()     # {"version", "git_sha", "git_dirty", "features"}

Reads are open; writes need a bearer token — the client mirrors that contract exactly. token is attached as Authorization: Bearer <token> on write calls only, and a client constructed without a token sends no Authorization header at all. The optional client_id / task_id constructor arguments become the X-Quipu-Client / X-Quipu-Task attribution headers.

Reads

Unset optionals are omitted from the request body entirely, never sent as null — to /query, absent and null are different things (silence never widens scope).

Writes

Every result dataclass keeps the full decoded body in .raw.

Two REST-doc contracts worth restating because the types encode them:

• Branch on EpisodeResult.outcome, never on count. unchanged is a successful idempotent retry — re-posting under a new name because count == 0 looked like failure is how duplicate entities get minted.
• An edge value is {"iri": ...}, a bare string is a literal. set and retract pass value through untranslated, so the server’s loud 400 for a bare IRI-shaped string reaches you as a QuipuError with the guidance attached.

Errors: QuipuError

Every non-2xx answer raises QuipuError — a refusal is never silent, and never swallowed:

try:
    q.knot(turtle)
except QuipuError as e:
    e.status    # HTTP status code
    e.body      # decoded JSON body (or raw text when not JSON)
    e.reason    # the stable machine-readable field, e.g.
                # "missing_or_invalid_bearer_token" — None if absent

A SHACL refusal’s feedback payload — which shape, which constraint, which focus node — arrives intact in e.body and in str(e), because that feedback is the entire point of the refusal.

Tests

The suite runs against a stdlib http.server stub asserting method, path, headers, and body per call — no network, no live Quipu:

python3 -m pytest python/tests -q

MCP Tools

Quipu exposes its API as MCP (Model Context Protocol) tools for agent integration. These tools are available when Quipu runs as a Bobbin subsystem or standalone MCP server.

The registry (tool_definitions()) exposes 46 tools in a default build, or 48 when built with the owl feature (which adds quipu_load_ontology and quipu_explain). (The counts are pinned by tests in src/mcp/tests.rs, which also check this page and the README against the manifest.)

Connect directly

The server includes the native mcp feature. Build the CLI and its companion:

cargo build --release --features full --bin quipu --bin quipu-server
claude mcp add quipu -- /absolute/path/to/target/release/quipu mcp --db /absolute/path/to/store.db

quipu mcp starts the sibling quipu-server --mcp-stdio with the same configuration and store initialization as HTTP mode. It opens no network listener. On Unix it replaces the CLI process, so signals and EOF reach the server directly. Install both binaries together. Protocol output uses stdout; diagnostics use stderr.

For an already running server, register its /mcp URL as streamable HTTP. Calls are stateless: a server restart does not leave stale MCP sessions. The HTTP caller supplies the same service-specific bearer used for REST writes. For stdio with protected writes, pass --mcp-token-file /absolute/path/to/private-token; the file must be regular, at most 4096 bytes, and private (0600 or 0400 on Unix). Credentials are never accepted in tool arguments or forwarded from a claimed actor field. Unconfigured local stores retain the CLI’s existing local authority; configuring write authentication applies to stdio too. Read-only mode refuses writes even with a valid credential. No existing shared credential or open REST read changes.

Every tool dispatches through the existing REST application in process, sharing its authentication, dataset selection, read pools, validation, and committed transaction attribution. The schemas come from tool_definitions(); the native transport does not maintain a second schema catalogue. quipu_graph_list preserves its query filters. Tool failures are MCP error results with the REST error body. Natural-language quipu_search still requires the configured embedding provider; a precomputed embedding works without one. The transport does not download models.

Browser MCP requests require an Origin explicitly present in quipu.server.cors_allowed_origins; no Origin is normal for native agent clients. The REST origin policy remains unchanged. Tool requests are limited to 64 MiB.

Bobbin’s knowledge_* tools and existing Homelab quipu_* proxies remain supported compatibility surfaces. Native MCP lets an installation use Quipu without either proxy. The Homelab proxy continues to call REST; Bobbin keeps its existing library integration. Register the intended server explicitly to avoid ambiguous names; this addition does not remove an existing MCP entry or its credentials.

Run just mcp test for HTTP and stdio protocol acceptance against isolated stores, including concurrent named/shared credentials and read-only refusal. Set QUIPU_MCP_TEST_MODEL_DIR to a model directory containing onnx/model.onnx and tokenizer.json, plus ORT_DYLIB_PATH as needed, to test natural-language search with a real local embedding provider. Otherwise the test checks vector search and the explicit missing-provider error separately.

Tool Reference

quipu_query

Execute a SPARQL SELECT query.

Query results use prefixes declared by the loaded shape sets for compact CURIE values by default. IRIs in unknown namespaces remain full IRIs.

quipu_export

Export deterministic RDF from ROOT, a named graph, an episode provenance group, or a SPARQL graph query. Scope parameters are mutually exclusive.

quipu_align_propose

READ. Proposes candidate cross-graph alignments between two named graphs as a scored SSSOM mapping set, and returns the expected_version that quipu_align_apply requires.

Refuses an unknown graph IRI rather than returning zero candidates: align::enumerate returns an empty enumeration for an IRI it cannot look up, so a typo would otherwise come back as 0 candidates — indistinguishable from two graphs that genuinely share nothing.

quipu_align_decide

READ. Applies operator accept / negate verdicts to a proposed mapping set. Touches no store. Returns the decided set and the expected_version to carry into quipu_align_apply.

quipu_align_apply

WRITE. Materialises decided alignments as owl:sameAs / quipu:distinctFrom in an alignment graph derived from the two source graphs, creating that graph if needed.

expected_version is required and must be carried from the decision being applied. It is not computed here: set_version hashes the mapping set itself, so deriving the version at apply time would hash the set about to be written, always match, and silently discard a concurrent operator’s decision.

These are three separate tools rather than one with a mode because an MCP client judges a tool by its annotation. A moded tool would carry a single, necessarily destructive annotation, and every read-only call — including propose, the entry point — would be refused under a no-approval policy.

quipu_knot

Assert facts from Turtle data, with optional SHACL validation.

Returns: transaction ID, fact count, the normalised valid_from actually stored, and whether validation passed.

timestamp and valid_from are the store’s two time axes and they answer different questions — valid_from is queried with valid_at, timestamp with tx/as_of_tx. A commit authored in March and ingested tonight wants valid_from in March and timestamp tonight; passing only timestamp collapses both, which is what this surface did before aegis-sb8of5.

Valid-time is compared as text, so valid_from is normalised to YYYY-MM-DDTHH:MM:SSZ: a UTC offset is applied (git’s %aI emits the author’s local offset, and 2026-09-07T00:30:00+01:00 would otherwise sort after 2026-09-06T23:45:00Z, though it is earlier) and sub-second precision is dropped (.5Z sorts before Z). A malformed value is refused before the vocabulary gate, the SHACL pass, or any transaction — nothing is written.

replace_snapshot retractions are not back-dated: a replaced fact’s valid_to is the transaction stamp, because “these stopped being true in March” is a different claim from “we replaced them tonight”.

When replacement deletes an entity, a reference from another producer preserves its label, but not its stale type membership. Code snapshot keys code:<repo>:<partition> share a producer boundary with code:<repo> and all partitions of that repository. Their sibling references do not preserve a deleted label: a promote replaces keys in separate transactions, so sibling references can still be stale. References from another repository or producer still preserve the label. Other snapshot keys retain exact-key ownership semantics.

quipu_cord

List entities with optional filtering.

quipu_unravel

Time-travel query: view facts at a past state.

At least one of tx or valid_at must be provided.

quipu_validate

Dry-run SHACL validation without writing.

Returns: conforms boolean, plus arrays of violations, warnings, and informational issues.

quipu_shapes

Manage persistent SHACL shapes that auto-validate writes.
